GG 24F942
SANIFORCE PISTON PUMP, 6:1 DB BL

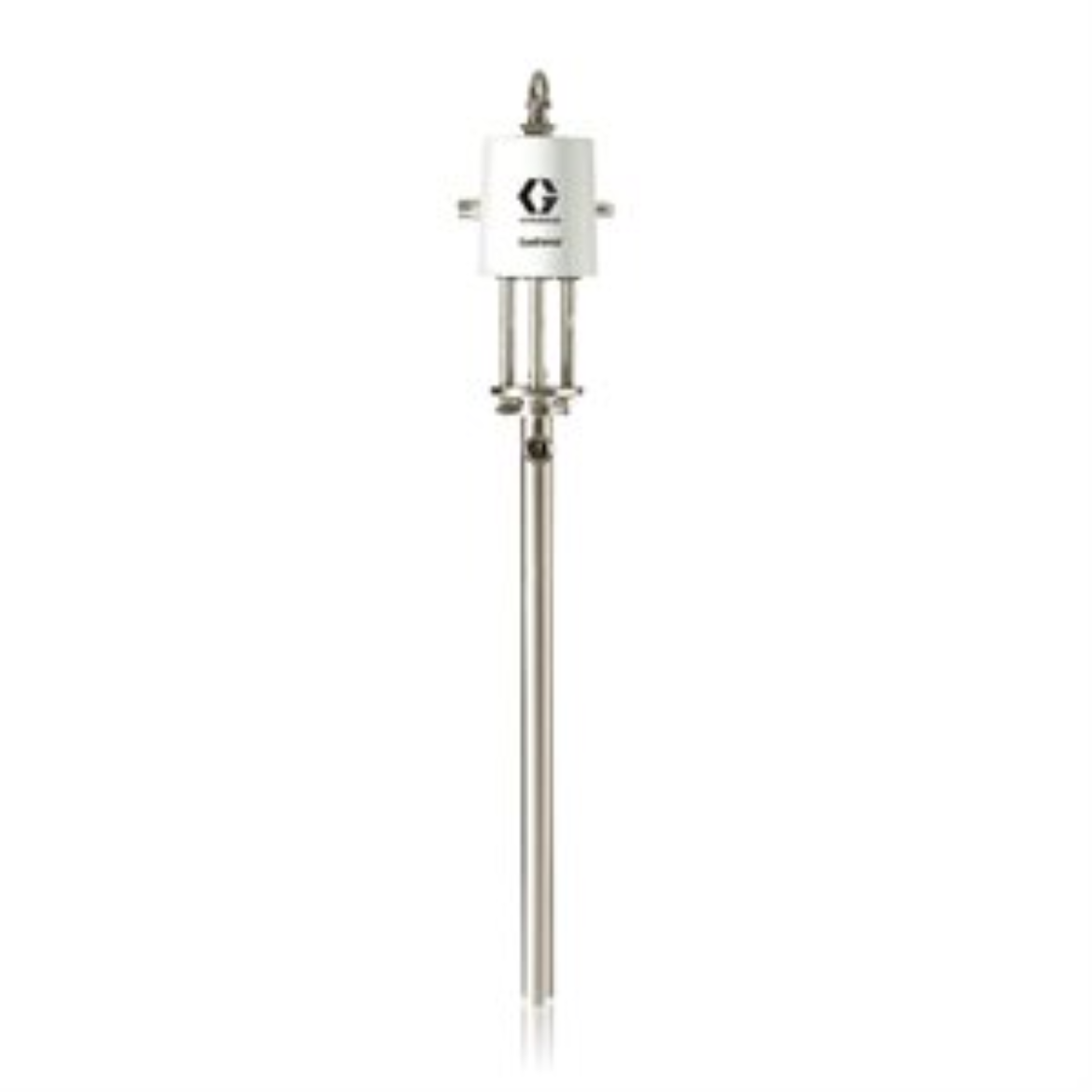

Graco 24F942 6:1 Ratio SaniForce Bin Length Double Ball Piston Pump
Graco&prime, s SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
- Most advanced air motor on the market
- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 29
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 44.8
- Maximum Working Pressure (kPa): 4480
- Maximum Working Pressure (MPa): 4.5
- Maximum Working Pressure (psi): 650
