Nutrunner

JC 55697

JC 65931

JC 0510-0019

JC 2324-12511

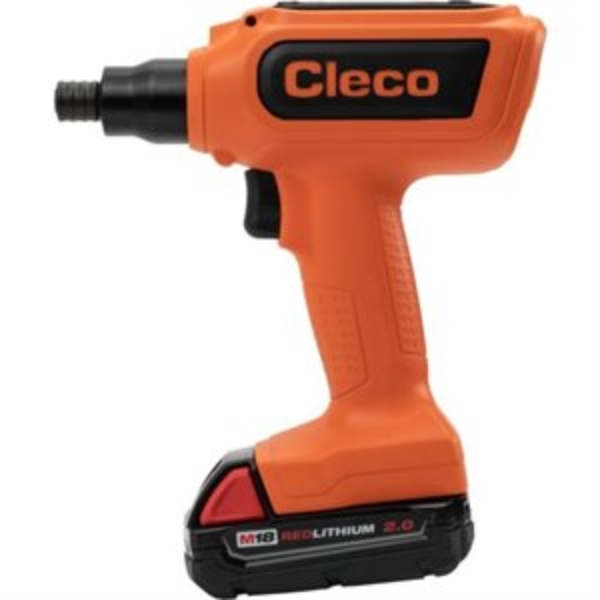

CL MP2264B

IR QXXD2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

STR 809506

Ratcheting Square Drive Interchangeable Heads for Torque Wrenches

Product Description

• One piece, cast, proprietary steel selection
• All of our heads fit on all of our wrenches
• Our smallest head fits on our largest wrench
• Our largest head fits on our smallest wrench
• Fewer wrenches to buy, calibrate, repair, and manage
• No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
• Sturtevant Richmont interchangeable heads have two common centerlines
• Typically for sizes 32 mm and below the common centerline is 365 mm
• Sizes larger than 33 mm the common centerline extends to 984 mm

IR QXXD2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 330
• Max Torque (ft-lb): 20
• Max Torque (in-lb): 239
• Max Torque (nm): 27
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Weight (lb): 3.7
• Recommended Forward Torque Range (ft-lb): 4.0-20
• Recommended Forward Torque Range (in-lb): 48-239
• Recommended Forward Torque Range (nm): 5.4-27
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.67
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

STR 810013

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

STR 809505

Ratcheting Square Drive Interchangeable Heads for Torque Wrenches

Product Description

• One piece, cast, proprietary steel selection
• All of our heads fit on all of our wrenches
• Our smallest head fits on our largest wrench
• Our largest head fits on our smallest wrench
• Fewer wrenches to buy, calibrate, repair, and manage
• No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
• Sturtevant Richmont interchangeable heads have two common centerlines
• Typically for sizes 32 mm and below the common centerline is 365 mm
• Sizes larger than 33 mm the common centerline extends to 984 mm

IR QXXD5AT080ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 708 in-lb Torque, 375 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Seriesâ„¢ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23

IR QXXD2AT018PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 24.34

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 2.8
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.51
• Side to Center Distance (mm): 13

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

STR 810016

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

IR QXFN2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Torque Wrench, 239 in-lb, 330 RPM

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 330
• Max Torque (ft-lb): 20
• Max Torque (in-lb): 239
• Max Torque (nm): 27
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Weight (lb): 3.7
• Recommended Forward Torque Range (ft-lb): 4.0-20
• Recommended Forward Torque Range (in-lb): 48-239
• Recommended Forward Torque Range (nm): 5.4-27
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.67
• Side to Center Distance (mm): 17

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

STR 810402

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Description

• LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

IR QXFN2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Description: Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

IR QXXD5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb Torque, 375 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Seriesâ„¢ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 8.9-59
• Recommended Forward Torque Range (in-lb): 106-708
• Recommended Forward Torque Range (nm): 12.0-80
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

IR QXXD2PT004PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Vibration Level (m/s2): < 2.5
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

IR QXXD2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

IR QXXD2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Seriesâ„¢ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 18
• Max Torque (in-lb): 212
• Max Torque (nm): 24
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

SX IW38TBP-2Q

IR QXFN5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Screwdriver, 708 in-lb Torque, 375 RPM

Description: Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Seriesâ„¢ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 8.9-59
• Recommended Forward Torque Range (in-lb): 106-708
• Recommended Forward Torque Range (nm): 12.0-80
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

IR 7RL-42-4

STR 10654

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

SX SCN-420
