Hydraullic Units

EP SCR506H

Hydraulic cylinder and pump sets (porta power) give you everything needed to get to work immediately. Included in this kit is a single-acting hydraulic cylinder (ram) from the versatile and best-selling RC Series, a two-speed pump, a 6-foot hose, a calibrated gauge, and a gauge adaptor.

Configure your ideal kit by choosing from a range of 5 - 100 ton (49 - 533 kN) cylinders to suit your application. Your hydraulic pump can be selected from a wide choice of hand, foot, air, or battery powered options.

• Type: Cylinder And PumpSet
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks, Pumps
• Product Line: Industrial Tools
• Series: SCR
• Stroke Inches: 6.25
• Stroke MM: 159
• SubTypes: Cylinder and Hand Pump Set

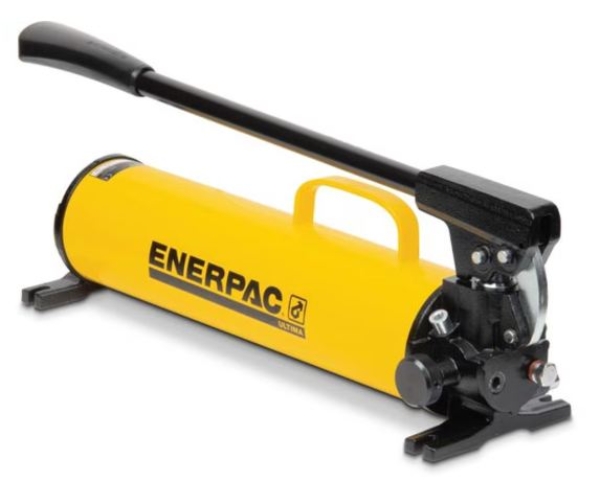

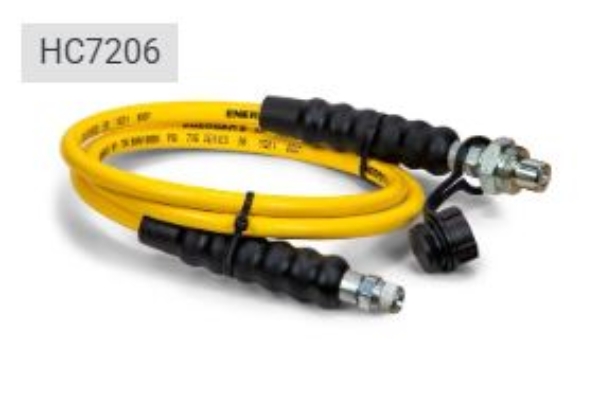

• Set Includes: P80, RC506, HC7206, GF50P, GA2

EP A1009070

• Type: Service Kit

• SubTypes: Repair Part

EP HCR-3006

EP PID-661A

EP SCR-102H

EP ZE4320SK

• Type: Hydraulic Pump

• Product Group: Pumps
• Series: ZE

EP ZA4420MX

These 2 stage pumps are based on our Z-Class hydraulic pump platform - widely recognized as the market leader in industrial hydraulic pump technology. ZA Series air driven pumps are built to power medium to large-sized double-acting cylinders and other hydraulic tools.

Choose a ZA Series air over hydraulic pump for high power intermittent use at locations where electricity is not allowed or readily available.

A selection of valve and control options allow you to configure a pump for a wide range of demanding applications. Various reservoir capacities are available, ranging from 1.2 to 10.3 gallons. All include either a sight gauge or level gauge for easy oil level monitoring.

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZA
• SubTypes: Air Pump - High Flow

• Features Z-Class high efficiency pump design, higher oil for high flow and bypass pressure.
• Two-speed operation and high by-pass pressure reduces cycle time for improved productivity.
• Intermittent duty power allows users to run the motor between 20-60 minutes at a time, depending on reservoir capacity and sound levels.
• Internal relief valves. One is factory set for overload protection while the second is user adjustable for pre-setting maximum system pressure.
• Sight gauge on 1.2 and 1.8-gallon and level gauge on 2.6, 5.2 and 10.3-gallon reservoirs allow quick and easy oil level monitoring.
• Optional heat exchanger warms exhaust air to prevent freezing and cools the oil.
• ATEX Certified

EP ZA4220MX

These 2 stage pumps are based on our Z-Class hydraulic pump platform - widely recognized as the market leader in industrial hydraulic pump technology. ZA Series air driven pumps are built to power medium to large-sized single-acting cylinders and other hydraulic tools.

Choose a ZA Series air over hydraulic pump for high power intermittent use at locations where electricity is not allowed or readily available.

A selection of valve and control options allow you to configure a pump for a wide range of demanding applications. Reservoir capacities of 1.2, 1.8, or 5.2 gallons are available, including a sight gauge for easy oil level monitoring.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZA
• SubTypes: Air Pump - High Flow

• Features Z-Class high efficiency pump design, higher oil for high flow and bypass pressure.
• Two-speed operation and high by-pass pressure reduces cycle time for improved productivity.
• Intermittent duty power allows users to run the motor between 20-60 minutes at a time, depending on reservoir capacity and sound levels.
• Internal relief valves. One is factory set for overload protection while the second is user adjustable for pre-setting maximum system pressure.
• Sight gauge on 1.2 and 1.8-gallon and level gauge on 2.6, 5.2 and 10.3-gallon reservoirs allow quick and easy oil level monitoring.
• Optional heat exchanger warms exhaust air to prevent freezing and cools the oil.
• ATEX Certified

EP ZE3420SB

Enerpac ZE3 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE3 pump utilizes the same robust valves, reservoir, and pump components as larger pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE3 is suited to continuous use in manufacturing and workshop environments.

The 1.0 hp (0.75 kW) induction motor in the ZE3 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption than pumps with standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 1.0 hp (0.75 kW) induction motor for long life and quiet operation.
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 75 dBA sound level.
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

• Accessories: ZPF, SBZ4, ZRC20, ZPTU4, ZLSU4, ZCF2, ZHEE10

EP ZE4340SG-FRT

• Type: Hydraulic Pump

EP ZE4308SB

Enerpac ZE4 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE4 pump utilizes many of the same robust valves, reservoir, and pump components as other pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE4 is suited to continuous use in manufacturing and workshop environments.

The 1.5 hp (1.12 kW) induction motor in the ZE4 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption than pumps with standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 1.5 hp (1.12 kW) induction motor for long life and quiet operation.
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 75 dBA sound level.
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

• Accessories: ZPF, SBZ4, ZRC04, ZPTU4, ZLSU4, ZCF2, ZHEE04

EP ZE4420SW

• Type: Hydraulic Pump
• Max Bar: 700

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• High-efficiency pump design - higher oil flow and by-pass pressure
• High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
• IP54 protection and isolation class
• Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other models)
• Totally enclosed, fan-cooled industrial electric motors for extended life
• User adjustable relief valve built-in on manual and solenoid valves. Oil ports on valves are 3/8" NPTF
• Steel fan guard on all electric motors
• Full sight oil level glass
• 40 micron filter breather with splash guard
• Durable steel reservoirs

• Accessories: ZPF, ZHEE10, ZLSU4, ZPTU4, ZPSE3, ZRB20, ZCF2, ZCP3

EP ZU4420JB

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Standard Electrical:
  • For applications that do not require digital display

• Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4

EP ZU4420MB-R

• Type: Hydraulic Pump

• Product Group: Pumps
• Series: ZU

EP ZU4420PB

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Classic Electric Pump:
  • The Classic has traditional electro-mechanical components (transformers, relays and switches) in place of solid-state electronics. The Classic delivers durable, safe and efficient hydraulic power.

• Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4

EP ZU4420SB

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Pro Electric:
  • LCD readout provides pressure and a number of diagnostic and readout capabilities never before offered on a portable electric pump
  • pump usuage information, hour and cycle counts
  • self-test, diagnostic and read-out capabilities
  • pressure readout and auto-mode pressure settings
  • Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4, ZPTU4, ZLSU4, ZCF2

EP ZW3010HB-FHT12

• Type: Hydraulic Pump

• Product Group: Pumps
• Series: ZW

EP A1018037

• Type: Service Kit

• SubTypes: Gasket

EP RC5NKS

• Type: Service Kit

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• SubTypes: Seal Kit

EP MB1

• Type: Manifold
• Max Bar: 350
• Max PSI: 5000

• Product Group: Manifolds, Pumps
• Product Line: Work Holding Tools
• Series: MB - Manifold
• SubTypes: Single Station Manifold

• Single station manifolds allow installation of VSS and VST-series positive seal control valves or other D03 valves.
• Ideal in applications where independent control of multiple cylinders is required.
• Mounting patterns for: VSS/VST Valves (D03 or CETOP 3); VE Valves (D03 or CETOP 3); VP03 Valves (D03 or CETOP 3); VMMD Valves (D03 or CETOP 3)
• Manifolds allow use of accessories, such as pressure switches and gauges
• Each non-used valve station on manifolds must be sealed with MC cover plate

EP OIL55HF

• Type: Hydraulic Oil

• Product Group: Pumps

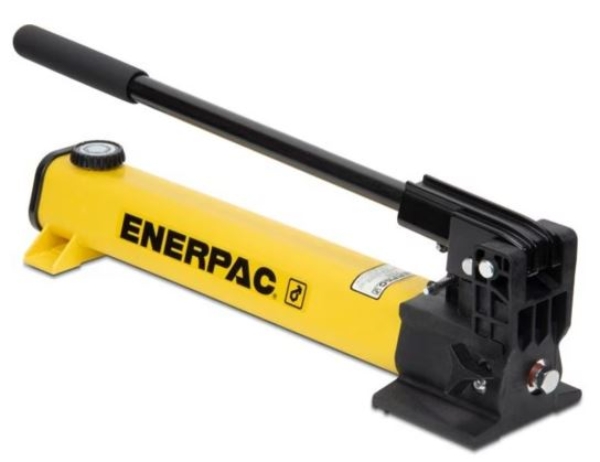

EP P392

Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).

The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.

Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it's needed most before the pump automatically switches to the low flow high-pressure stage.

With a choice of oil capacities up to 453 in3 (7423 cm3), we're certain you'll find a lightweight hydraulic hand pump to handle multiple cylinder hook-ups. For compatibility with double-acting tools choose the P842.

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: P
• SubTypes: Hand Pump - Two Speed

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection

• Spare Part(s): P392E024K, P392U001K

EP PE99222113

• Type: Hydraulic Pump

• Product Group: Pumps

EP PEM8418C

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: 8000
• SubTypes: Electric Pump - High Flow

• The 8000 Series is the largest pump in the Enerpac line and the best choice to power most large size cylinders, multiple cylinder circuits, and applications where the need for high speed requires high flow rates. The 8000 Series, with its large reservoir capacity, is best suited for large jobs and may be the only solution because of the required oil capacity.
• Panel-mounted pressure gauge and adjustable relief valve for system pressure control
• Two-speed pump design, with high by-pass pressure, for rapid cylinder advance
• Dual Voltage motor (230/460 VAC, 3 phase, 60 Hz)
• Full length reservoir sight tube with integral thermometer for ease in monitoring oil level and temperature
• Low voltage controls to protect the pump operator

EP PER8418

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: 8000
• SubTypes: Electric Pump - High Flow

• The 8000 Series is the largest pump in the Enerpac line and the best choice to power most large size cylinders, multiple cylinder circuits, and applications where the need for high speed requires high flow rates. The 8000 Series, with its large reservoir capacity, is best suited for large jobs and may be the only solution because of the required oil capacity.
• Panel-mounted pressure gauge and adjustable relief valve for system pressure control
• Two-speed pump design, with high by-pass pressure, for rapid cylinder advance
• Dual Voltage motor (230/460 VAC, 3 phase, 60 Hz)
• Full length reservoir sight tube with integral thermometer for ease in monitoring oil level and temperature
• Low voltage controls to protect the pump operator
