Sealant and Adhesives

LC 1573138

LC 39995

LC 97233

GG 24X167

LSR F4-55 SYSTEM, 55GAL/55GAL, CASTERS

Graco 24X167 1:1 Ratio 55 gal (200 liter) F4 Fluid Automation System with Casters

In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.

• Precise ratio control, minimal material waste

  The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.

  The result: More precise mixing, a better end product and less wasted material.

  • Easier operation with Graco Control Architecture

    The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools

    • Better Color Control

      Mix two additive streams at ratios ranging from 0.5 to 6%

      • Maintains Material Integrity

        Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material

        • Cleanroom Convenience

          A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance




          • Model: LSR
          • Air Inlet Size (cm): 1.27
          • Air Inlet Size (in): 1/2
          • Air Inlet Size (mm): 12.7
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Amperage (A): 4
          • Applicator Type: Automatic
          • Frequency (Hz): 50/60
          • Maximum Flow Rate (kg/min): 2.27
          • Maximum Flow Rate (lb/min): 5
          • Maximum Working Pressure (bar): 207
          • Maximum Working Pressure (kPa): 20700
          • Maximum Working Pressure (MPa): 21
          • Maximum Working Pressure (psi): 3000
          • Minimum Flow Rate (GPM): 10

LC 32515

LC 318654

LC 984685

LC 32389

LC 41650

LC 720173

GG C100-V1

LC 902521

GG 24X169

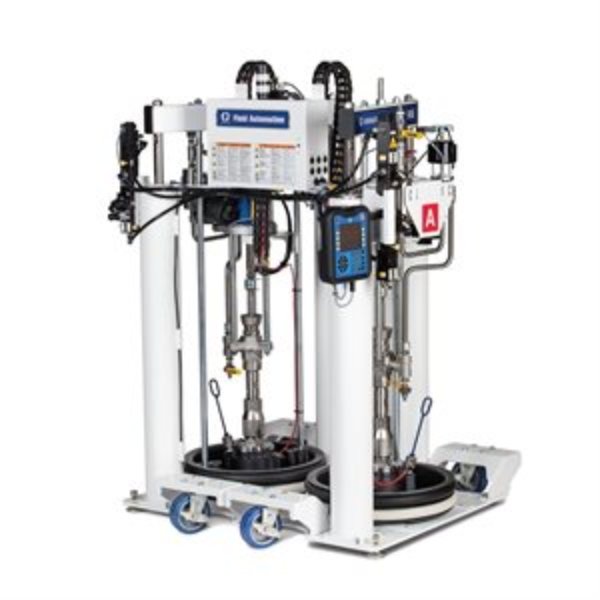

LSR F4-55 SYSTEM, 55GAL/55GAL

Graco 24X169 1:1 Ratio 55 gal (200 liter) F4-55 Fluid Automation System

In the manufacturing of liquid silicone rubber products, precision is paramount. Material waste is an expensive problem and substandard products are an intolerable failure. Minimize both with the Graco Fluid Automation F4-55.

• Precise ratio control, minimal material waste

  The F4-55 system takes the ability to meter material flow to an almost microscopic level. Its helical gear uses multiple gear teeth to measure flow in very small increments. The increased number of measurements offers more assurance the machine remains on-ratio.

  The result: More precise mixing, a better end product and less wasted material.

  • Easier operation with Graco Control Architecture

    The Graco Fluid Automation F4-55 system features intuitive user interfaces based on the Graco Control Architecture (GCA), a modular system of processing and control components. GCA makes maintenance and service easy, thanks to built-in troubleshooting tools

    • Better Color Control

      Mix two additive streams at ratios ranging from 0.5 to 6%

      • Maintains Material Integrity

        Stainless steel components meet the standard for clean room applications to prevent contamination, and cure inhibition and discoloration of material

        • Cleanroom Convenience

          A smaller footprint and casters (optional on F4-55) allow for system movement and maintenance




          • Model: LSR
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Amperage (A): 4
          • Applicator Type: Automatic
          • Frequency (Hz): 50/60
          • Maximum Flow Rate (kg/min): 2.3
          • Maximum Flow Rate (lb/min): 5
          • Maximum Working Pressure (bar): 207
          • Maximum Working Pressure (kPa): 20700
          • Maximum Working Pressure (MPa): 21
          • Maximum Working Pressure (psi): 3000
          • Minimum Flow Rate (GPM): 10

GG 255442

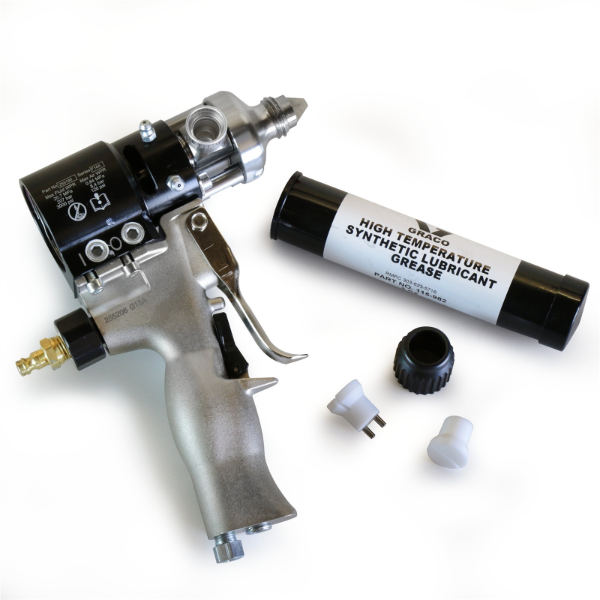

MD2 VALVE,ASSY,1:1,HS,GUN,AIR

Graco 255442 1:1 Ratio Hard Seat Air-Actuated Gun Trigger

Accurately dispenses and mixes two-component sealants and adhesives.

• Model: MD2

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding

GG 255901

MD2 VALVE, DISPENSE, 1:1, ELITE, SNUFF

Graco 255901 MD2 Valve, 1:1 Ratio, Elite Hard Seat, Non-adjustable Snuff-back

Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production.

• 1:1 ratio nose handles a wide range of material.
• Hard seats with Elite construction withstand highly abrasive material at least 10 times longer than standard construction. (Data verified in Graco test environment.)
• Snuff-back control prevents dripping as it brings material back into the valve until next dispense.
• No unique tools are required for maintenance or repair.
• Grease isolation chamber protects moisture sensitive materials and has accessible grease fittings for easy maintenance
• No unique tools required

• Model: Two Component Mixing Dispense Valve
• Series: MD2

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding

• Compatible Material: Sealants, Adhesives

• Component Type: Plural-Component

• Fluid Inlet Size (cm): 1.42875
• Fluid Inlet Size (in): 9/16
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: UNF

• Fluid Outlet Size (in): 7/8
• Fluid Outlet Thread Type: UNC

• Gun Activation: Automatic

• Includes: Dispense Valve, 1:1 Ratio Night Cap, 1:1 Ratio Check Adapter, ASM Aid Tool

• Maximum Viscosity (cP): 1000000

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm 2): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (psi): 3000

• Mount Hole Thread Gender: Female
• Mount Hole Thread Type: Metric

LC 1046901

LC 135550

LC 2068378

LC 2246816

LC 229807

LC 2693825

LC 39633

LC 600972

GG 01/1451/98

GG 01/1455/98
