Piston

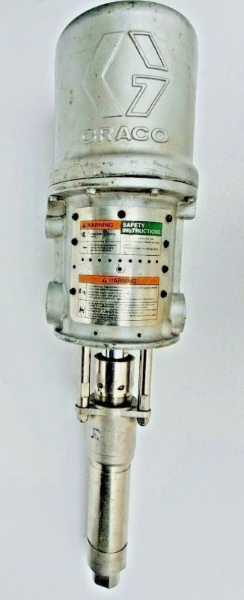

GG 224341

PUMP, DISPL, RECIP

Graco 224341 Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

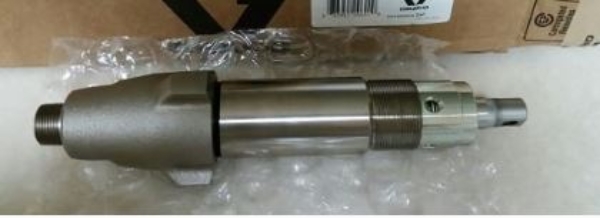

GG 246831

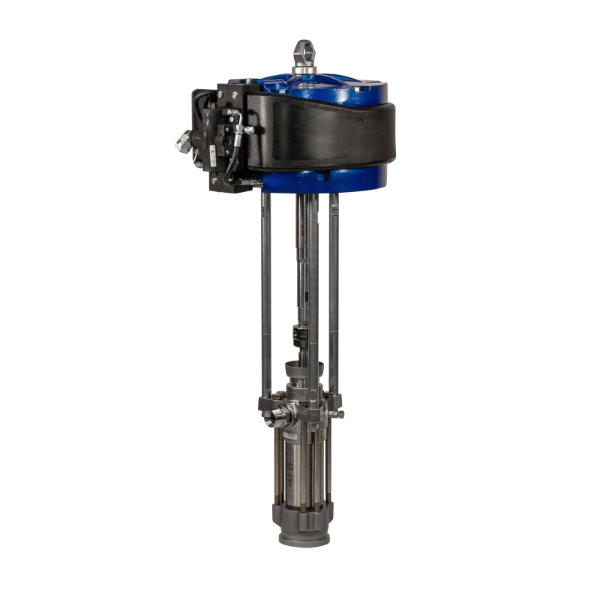

GG 24Y211

DURA-FLO 1800 PUMP, XL, 47:1, (18 CM CSTL)

Graco 24Y211 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Long Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• XL 1000 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 430cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity




  • Air Inlet Size (in): 1
  • Air Inlet Size (mm): 25.4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  • Fluid Outlet Size (in): 1-1/2
  • Fluid Outlet Size (mm): 38.1
  • Fluid Outlet Thread Gender: Male
  • Fluid Outlet Thread Type: NPT
  • Material: Carbon Steel
  • Maximum Air Inlet Pressure (bar): 6.9
  • Maximum Air Inlet Pressure (kPa): 690
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Continuous Cycle Rate (CPM): 60
  • Maximum Flow Rate (GPM): 6.9
  • Maximum Flow Rate (L/min): 26.12
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Working Pressure (bar): 310
  • Maximum Working Pressure (kPa): 31000
  • Maximum Working Pressure (MPa): 31
  • Maximum Working Pressure (psi): 4500
  • Portable: Non-Portable
  • Power Type: Pneumatic
  • Pump Ratio: 47:1

GG 245971

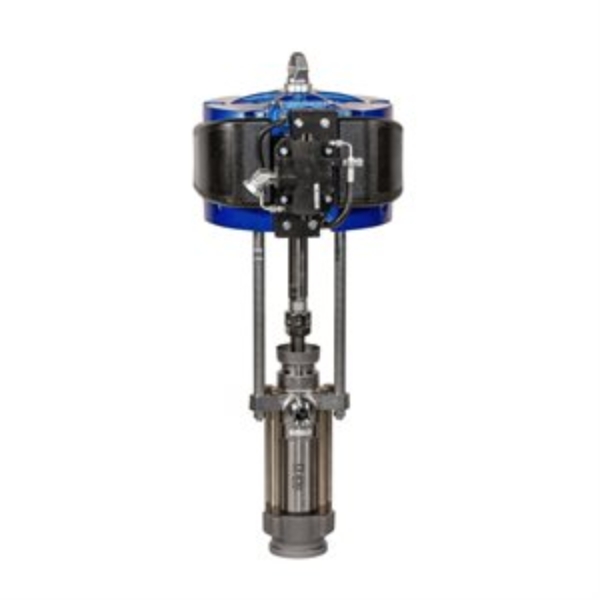

GG 24Y212

DURA-FLO XL PUMP, 47:1, (18 CM CSTL)

Graco 24Y212 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Right Hand Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• XL 1000 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 430cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity




  • Model: Dura-Flo
  • Series: XL 1800
  • Air Inlet Size (in): 1
  • Air Inlet Size (mm): 25.4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  • Fluid Outlet Size (in): 1-1/2
  • Fluid Outlet Size (mm): 38.1
  • Fluid Outlet Thread Gender: Male
  • Fluid Outlet Thread Type: NPT
  • Material: Carbon Steel
  • Maximum Air Inlet Pressure (bar): 6.9
  • Maximum Air Inlet Pressure (kPa): 690
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Continuous Cycle Rate (CPM): 60
  • Maximum Flow Rate (GPM): 6.9
  • Maximum Flow Rate (L/min): 26.12
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Working Pressure (bar): 310
  • Maximum Working Pressure (kPa): 31000
  • Maximum Working Pressure (MPa): 31
  • Maximum Working Pressure (psi): 4500
  • Portable: Non-Portable
  • Power Type: Pneumatic
  • Pump Ratio: 47:1

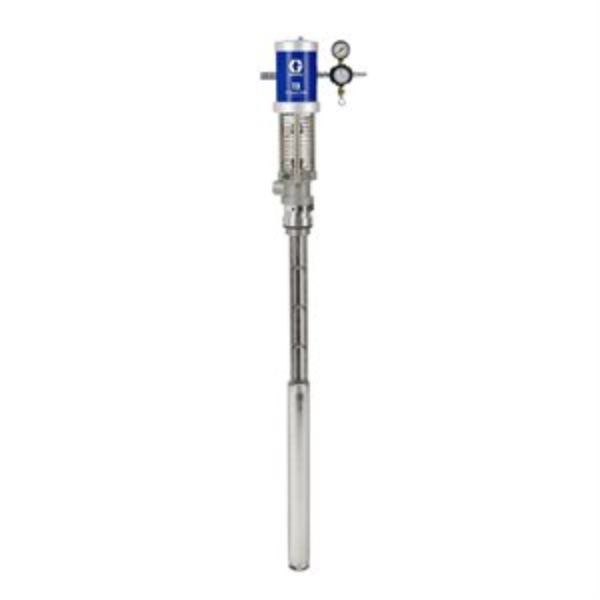

GG 24Z834

T3 PUMP, CS

Graco 24Z834 T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco's proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.

• Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
• More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
• Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching

  is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical

  reversing mechanism in the air-motor

• Model: T3
• Series: Carbon Steel

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Foam, Polyurea

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (MPa): 0.69
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 4.5
• Maximum Flow Rate (L/min): 17.03

• Maximum Operating Temperature (°C): 88
• Maximum Operating Temperature (°F): 190

• Maximum Working Pressure (bar): 21.7
• Maximum Working Pressure (kPa): 2170
• Maximum Working Pressure (MPa): 2.2
• Maximum Working Pressure (psi): 315

• Package Options: Bare

• Pump Ratio: 3:1

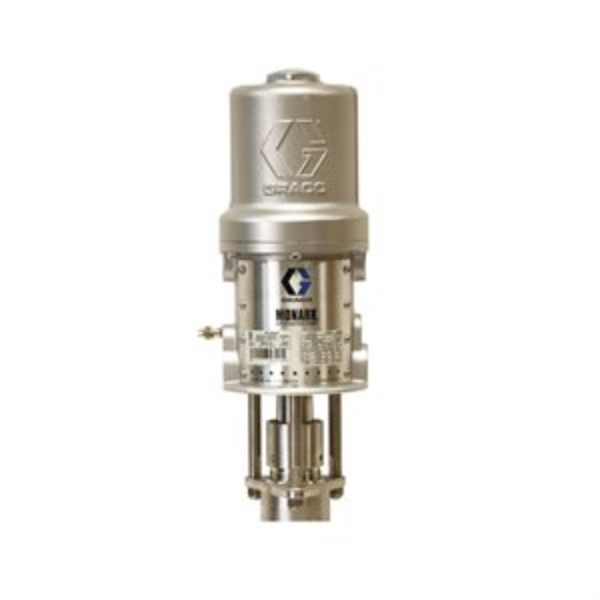

GG 218956

MONARK PUMP, 5-1

Graco 218956 Monark 5:1 Pneumatic 2-Ball Piston Pump, Carbon Steel

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2.1
• Maximum Flow Rate (L/min): 7.95

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 14
• Maximum Working Pressure (kPa): 1400
• Maximum Working Pressure (MPa): 1.4
• Maximum Working Pressure (psi): 200

• Portable: Non-Portable

• Pump Ratio: 5:1

GG 237795

CHECK-MATE 800 PUMP, SHOVEL, 8CM HOTMELT, 55GL

Graco 237795 55 gal (200 liter) Hot Melt Pump with 8 cm Shovel

• Model: Check-Mate

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Extended Rod Height (in): 31.25

• Fluid Outlet Size (in): 1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3

• Maximum Operating Temperature (°F): 400

• Maximum Working Pressure (psi): 5850

GG 215932

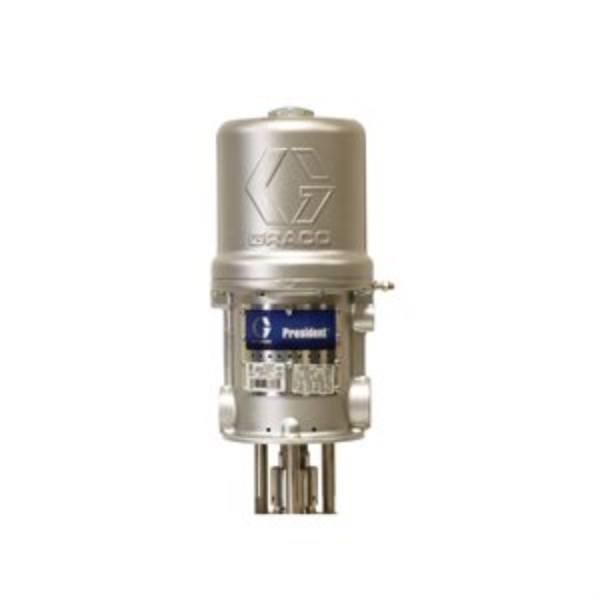

GG 217580

PRESIDENT PUMP, 15:1

Graco 217580 President 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 1.8
• Maximum Flow Rate (L/min): 6.81

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 15:1

GG 224342

PRESIDENT PUMP, 10:1

Graco 224342 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Portable: Non-Portable

• Pump Ratio: 10:1

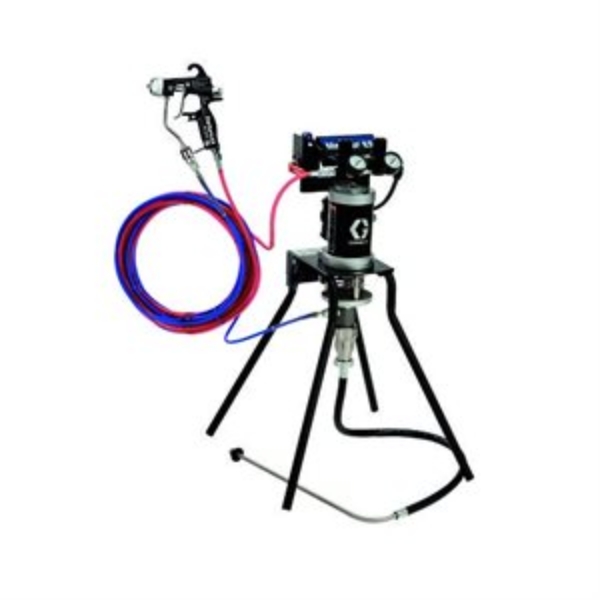

GG 24F159

MERKUR SPRAYER, ES, AA, 15:1, SST, STAND

Graco 24F159 15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 15 gun, suction hose, and stainless steel

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

• Quick flush system requires less than 1 minute to flush
• 45% less material to fill the system than the leading competitors
• Delivers a superior, consistent spray finish
• Easily set and monitor air control, plus an integrated carrying handle for transport
• Air motor provides consistent finishes with smooth, rapid changeover
• Suction hose and strainer leaves less material in the supply container
• Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

• Model: Merkur
• Series: ES

• Convertible: Non-Convertible

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Gun Included: 1
• Gun Model: G15
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.3175
• Hose Inlet Diameter (in): 0.125
• Hose Inlet Diameter (mm): 3

• Includes: G15 Gun, Suction Hose, Stand Mount

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Sound Pressure Level (dB(A)): 76.5

• Maximum Tip Size (cm): 0.0483
• Maximum Tip Size (in): 0.019
• Maximum Tip Size (mm): 0.4826

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Stand Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Sleeve Material: Stainless Steel
• Pump Type: Pneumatic Piston Pump

GG 224344

PUMP, DISPL, RECIP.

Graco 224344 Viscount I Displacement Pump

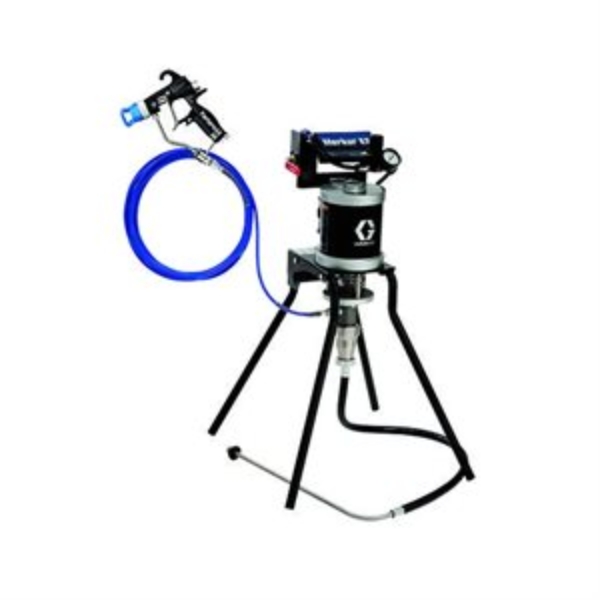

GG 24F155

MERKUR SPRAYER, ES, AL, 30, 1, CS, STAND

Graco 24F155 30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 Airless gun, suction hose, and plated steel

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

• Quick flush system requires less than 1 minute to flush
• 45% less material to fill the system than the leading competitors
• Delivers a superior, consistent spray finish
• Easily set and monitor air control, plus an integrated carrying handle for transport
• Air motor provides consistent finishes with smooth, rapid changeover
• Suction hose and strainer leaves less material in the supply container
• Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

• Model: Merkur
• Series: ES

• Convertible: Non-Convertible

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Gun Included: 1
• Gun Model: PerformAA 50 Airless
• Gun Technology: Airless
• Gun Type: Airless

• Hose Inlet Diameter (cm): 0.3175
• Hose Inlet Diameter (in): 1/8
• Hose Inlet Diameter (mm): 3.175

• Includes: PerformAA 50 Airless Gun, Suction Hose, Stand Mount

• Maximum Flow Rate (GPM): 0.40
• Maximum Flow Rate (L/min): 1.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Sound Pressure Level (dB(A)): 77.9

• Maximum Tip Size (in): 0.019

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kg/cm²): 210.9
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Stand Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Sleeve Material: Carbon Steel
• Pump Type: Pneumatic Piston Pump

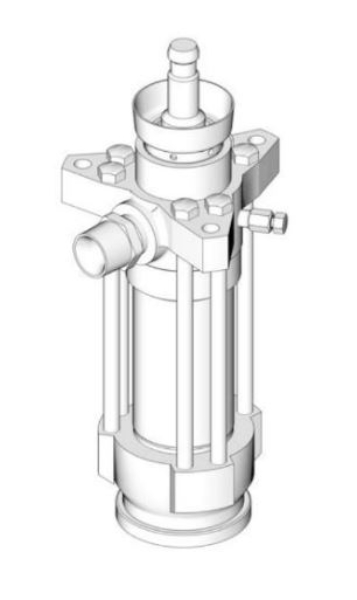

GG 222801

PUMP, RECIP, DISPL

Graco 222801 Dura-Flo 2400 (580 cc) Lower, Carbon Steel, 3 PTFE/2 Leather Packings

GG 222834

VISCOUNT II PUMP,20:1

Graco 222834 Viscount Hydraulic Motor with Dura-Flo 2400 (580 cc) Lower, 3 PTFE/2 Leather Packings

The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures.

• Clean, quiet operation with no airborne contamination
• Up to three times more energy efficient than comparable compressed air systems
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Eliminate downtime without ice build-up

GG 224346

PRESIDENT PUMP, 10:1

Graco 224346 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby, UHMWPE/Neoprene Packings

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Portable: Non-Portable

• Pump Ratio: 10:1

GG 226942

FAST-FLO PUMP, 1:1, SST, 55 GAL

Graco 226942 1:1 Ratio Fast-Flo Air Operated Piston Transfer Stainless Steel Drum Pump with PE Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

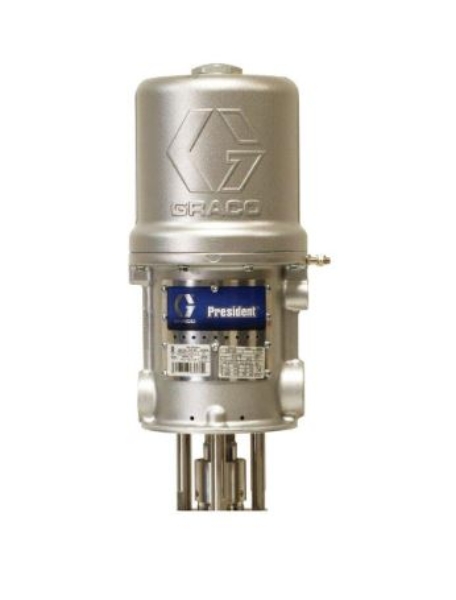

GG 239326

PRESIDENT PUMP, 10:1

Graco 239326 10:1 Ratio President Hydra-Clean Pump

• Reliable, low maintenance air motor

• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery

• Carbon Steel Model

  Drum Length

• Model: President

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

GG 246081

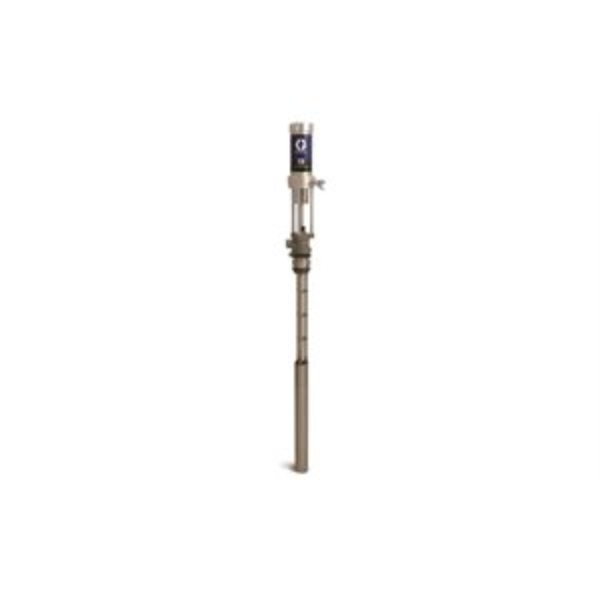

KIT, COMPLETE, 2:1(AIR/FLUID)

Graco 246081 T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit

Gracos family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

• Provide consistent feed pressures and flow rates for dependable results
• Lower pressure drops with higher viscosity materials at any ambient temperature
• Designed and manufactured by the worldwide leader in pump technology
• Quick-release bung adapter for easy drum removal without interference from hose connections
• Stainless steel wetted parts for corrosion-resistance
• PTFE seals for improved performance and less maintenance

• Model: T2

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Materials

• Cycles Per Gallon: 15.9

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: HFR Metering System

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.5
• Maximum Air Inlet Pressure (kPa): 1250
• Maximum Air Inlet Pressure (MPa): 1.2
• Maximum Air Inlet Pressure (psi): 180

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Operating Temperature (°C): 88
• Maximum Operating Temperature (°F): 190

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 405

• Package Options: Air Supply & Supply Hose

• Pump Ratio: 2.25:1

GG 237514

GG 279037

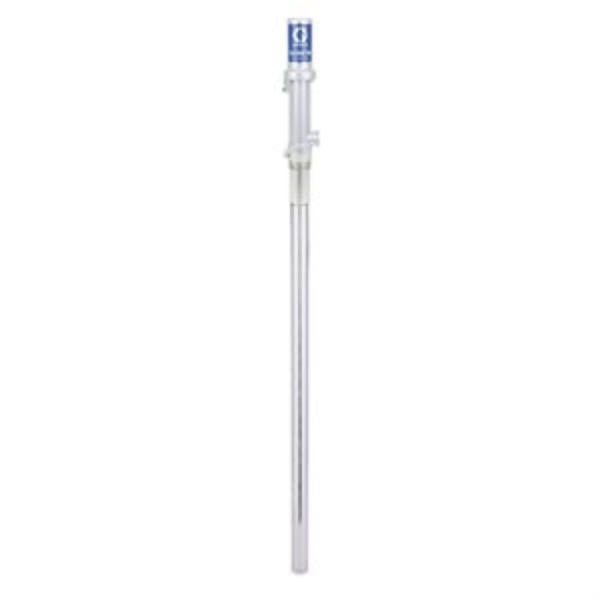

PUMP, FTB100, 1:1, 200L DRUM, METL

Graco 279037 Fast-Ball 100 55 Gallon Drum, Universal Pump, Steel Tube

Application:

• In-line design with fewer parts for less pump wear
• Double-acting pump provides reliable fluid flow
• Differential air motor ensures smooth pumping

• Model: Fast-Ball
• Series: 100

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: ATF, Gear Lube, Oil

• Cycles Per Gallon: 31

• Fluid Inlet Size (in): 1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (psi): 150

• Maximum Continuous Cycle Rate (CPM): 170

• Maximum Working Pressure (psi): 150

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG W15BAS

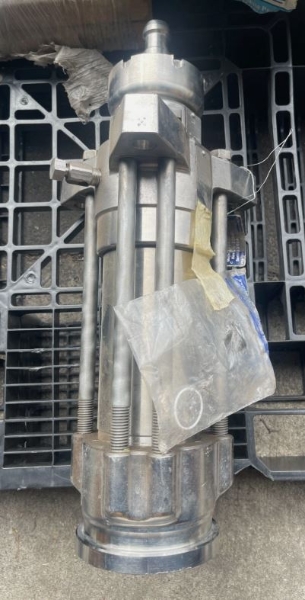

GG 222803

PUMP,RECIP,DISPL

Graco 222803 Dura-Flo 2400 (580 cc) Lower, Stainless Steel, 3 UHMWPE/2 PTFE Packings

GG 16W969
