GG 24Y211
DURA-FLO 1800 PUMP, XL, 47:1, (18 CM CSTL)

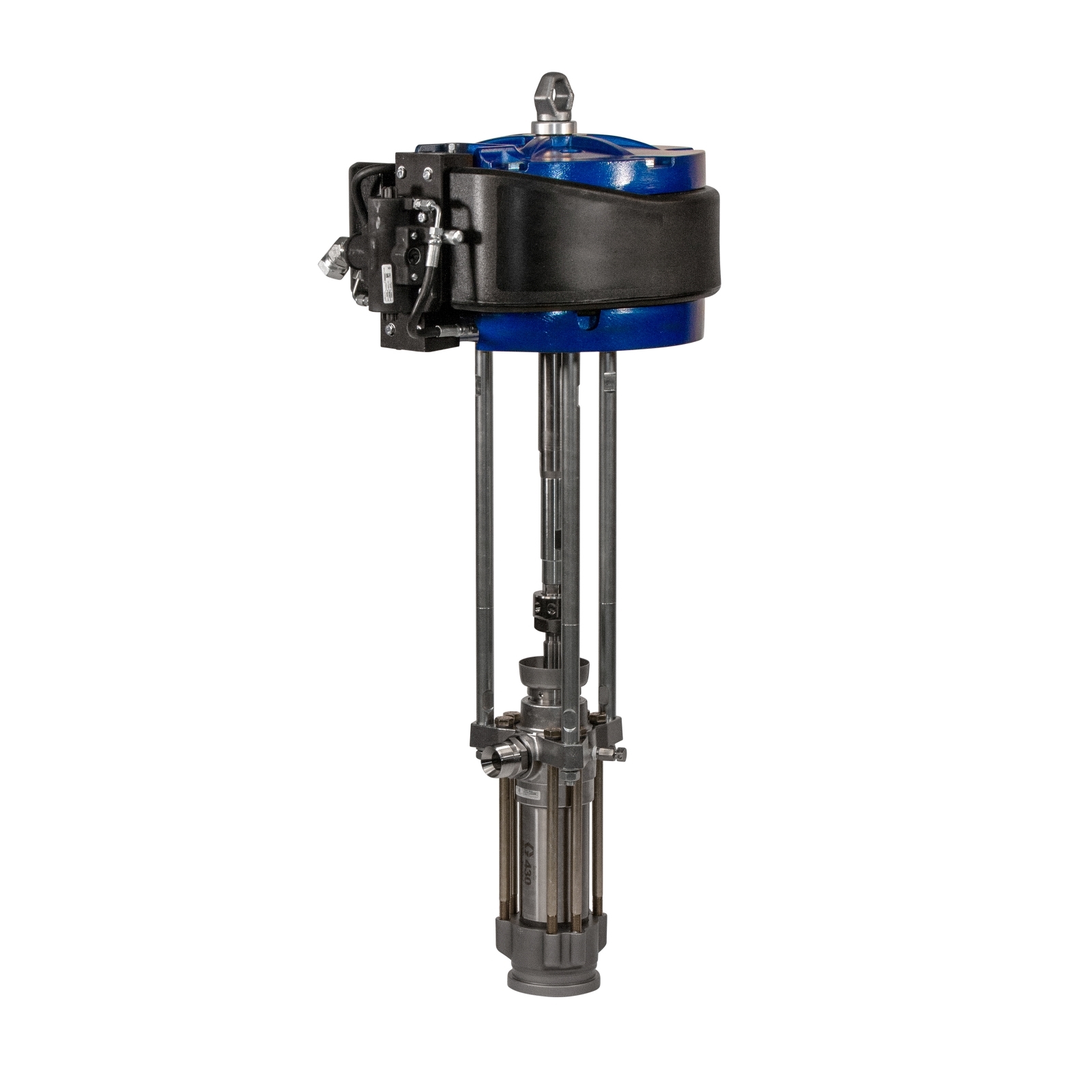

Graco 24Y211 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Long Carbon Steel Construction
Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.
Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer
- XL 1000 Air Motor
Modular design for easier maintenance
Rugged body armor wont rust or dent
Highest technology air motor on the market
- 430cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
- Standard Threaded Coupler -
- Replaceable Seat
Minimizes service costs
- Cast Outlet and Inlet Housing
- Air Inlet Size (in): 1
- Air Inlet Size (mm): 25.4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 6.9
- Maximum Flow Rate (L/min): 26.12
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
