Spray Guns - Automatic

BB 3465-22CN-14V0

Trophy Auto 22X14Conv-Vt

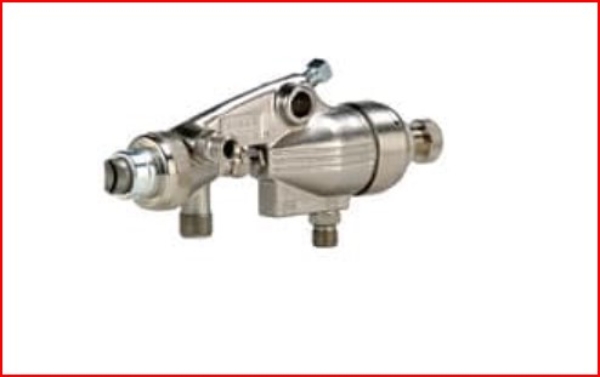

BB 6235-4909-5

21V Gun 67Vt-67Pb Automatic Spray Gun

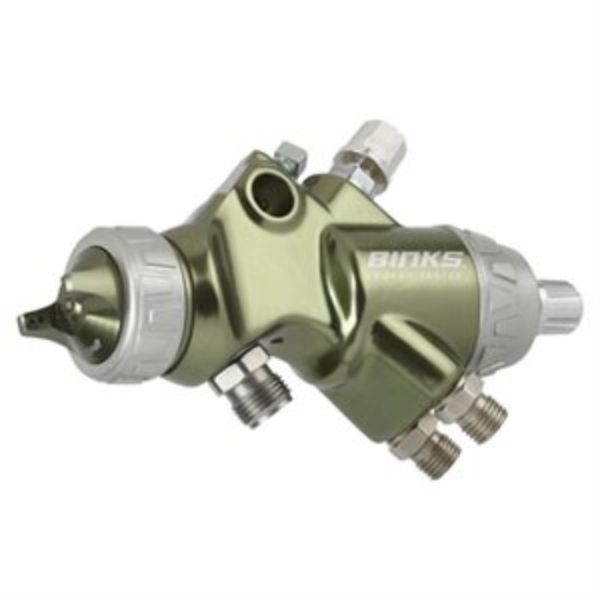

BB 3465-16LV-23S0

Trophy Auto 16 X 23Lvmp

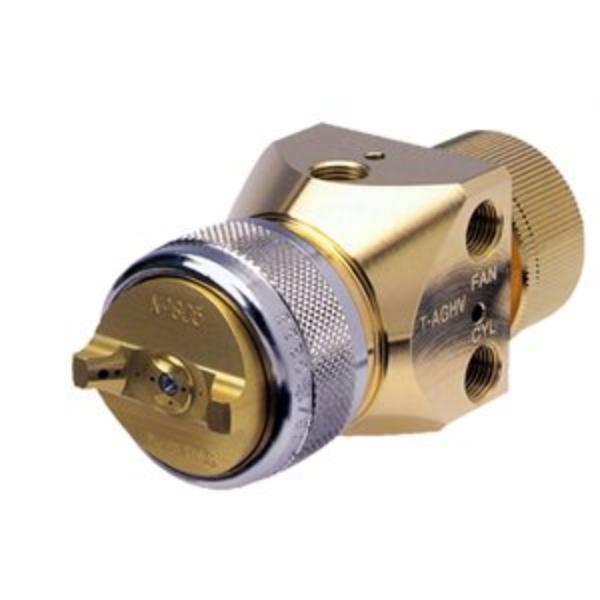

DD T-AGHV-5805-DFX

Lvmp Auto Gun

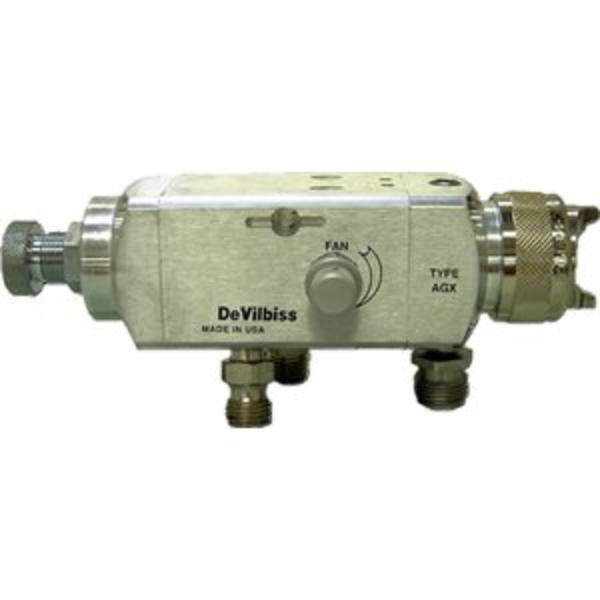

DD AGX-552-EE

Automatic Spray Gun Carbo

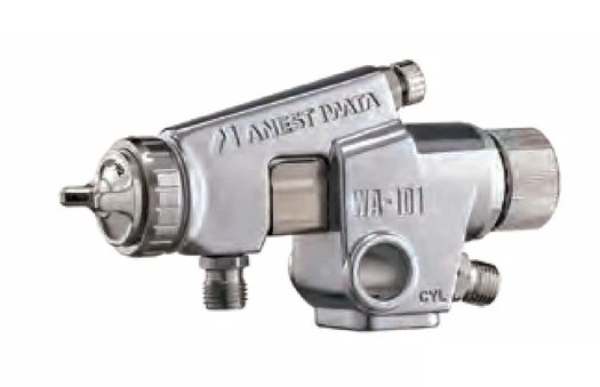

IW 5607B

Wa101-102P Automatic Spray Gun

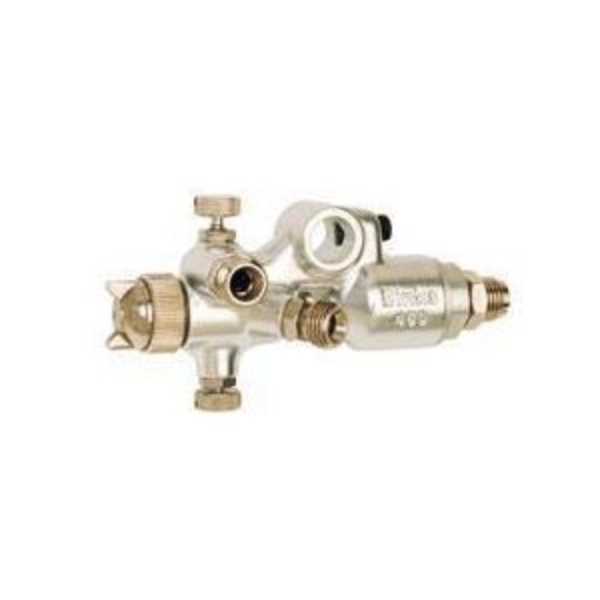

BB 6401-1900-5

460 Auto Gun Assy, .75Mm (J930Ss-J92P)

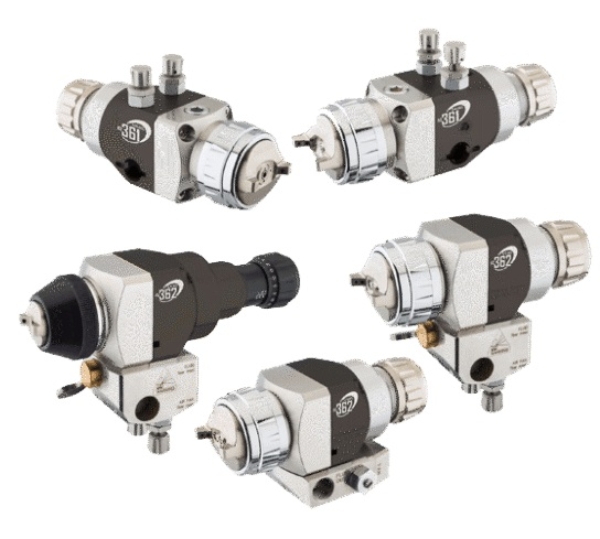

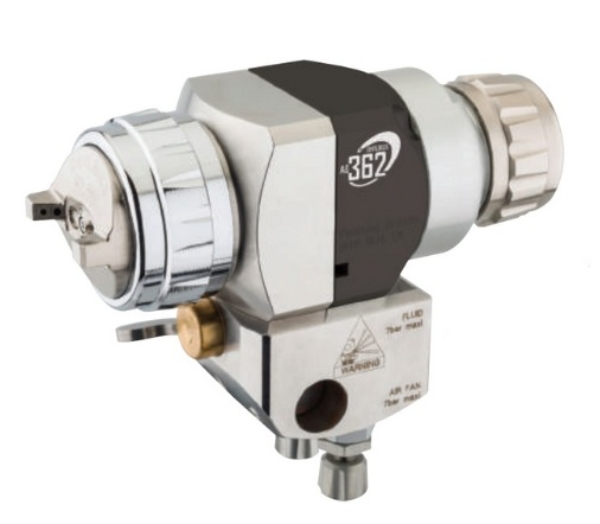

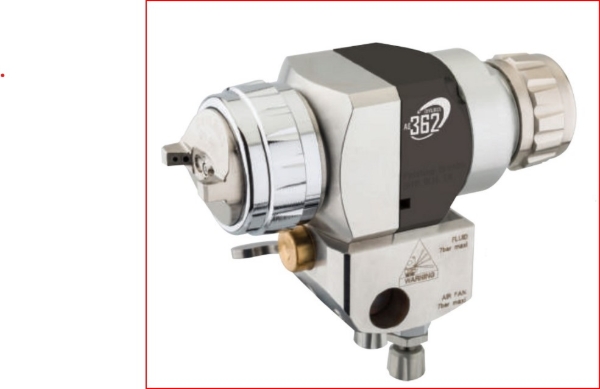

DD AG362-TE40-10-L

AG362 TE AUTO SPRAY GUN WITH LEVER MANIFOLD USA ONLY

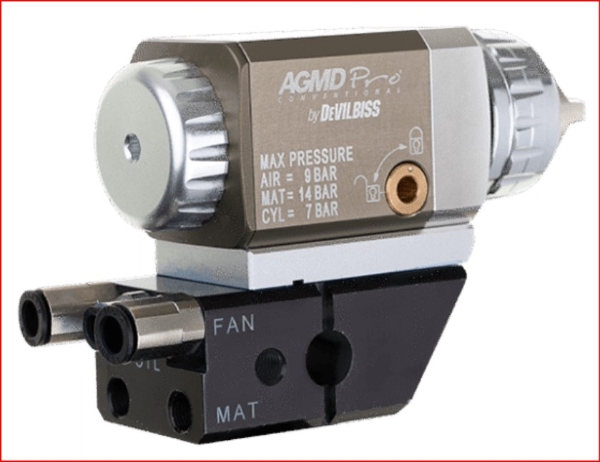

DD AGMDPRO-0000-14

Agmdpro Transtech W/1.4Mm Ss

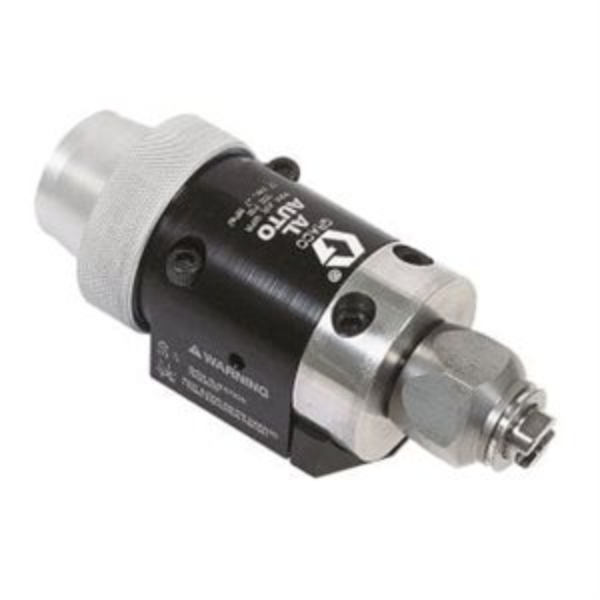

GG 288048

AL AUTO GUN, AIRLESS AUTO

AL Automatic Airless Spray Gun, includes GG0 spray tip of choice

A compact, lightweight automatic spray gun design that increases production speeds and provides a quality finish with a low cost of ownership.

Achieve quality finishes and higher production speeds for general metal finishing applications. Lightweight and compact rounded gun design Capable of handling high production speeds Durable stainless steel construction handles the toughest materials Fewer parts means an overall lower cost of repair Wide range tip line for a variety of applications

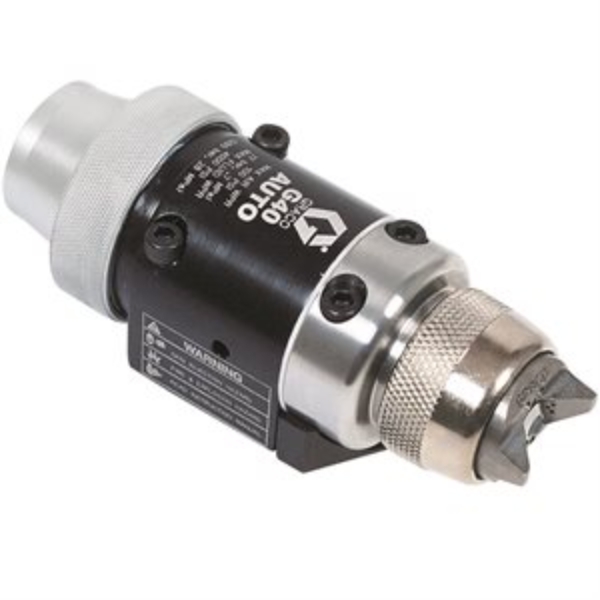

GG 288053

Gun Auto Air-Assisted Reverse-A-Clean

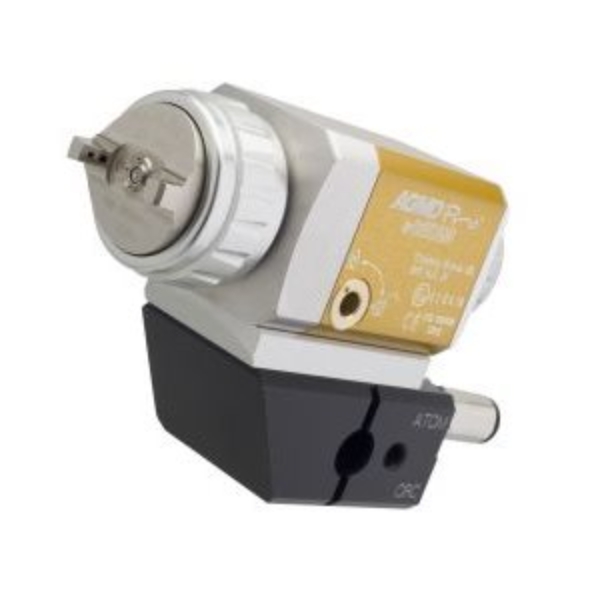

DD AGMDPRO-0000-12P

Auto Gun, No Air Cap, 1.2

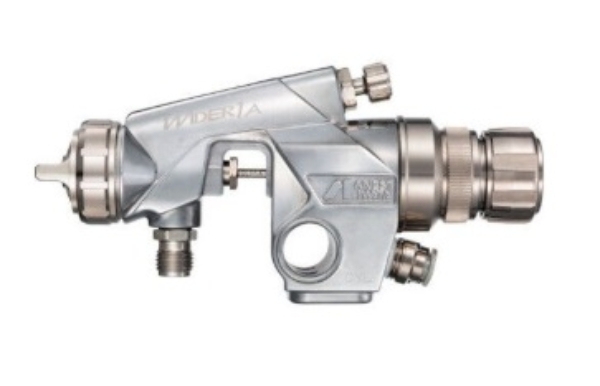

IW 5607W

Wider1A-10E2P

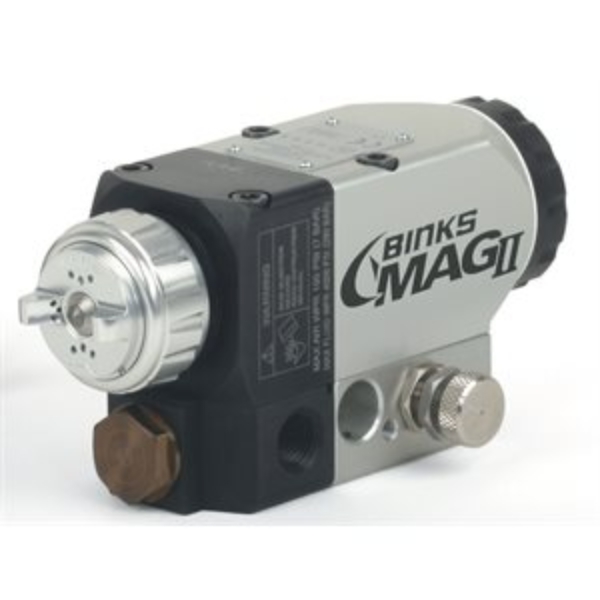

BB 0511-MHF0

Mag 2 Aa/Uv Auto Gun With Manifold Assembly And Flat Tip Hvlp Air Cap

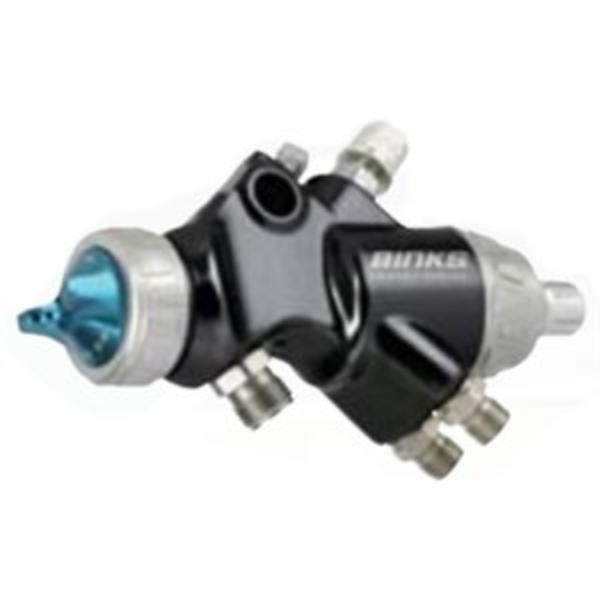

BB 3465-16HV-32S0

Spray Gun, Trophy

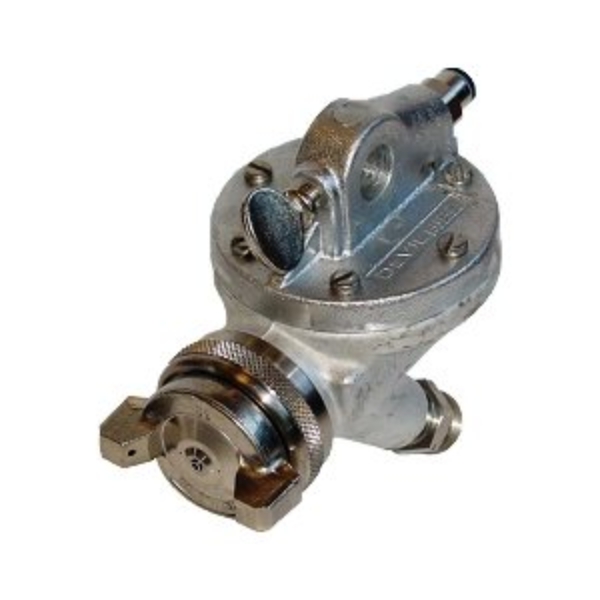

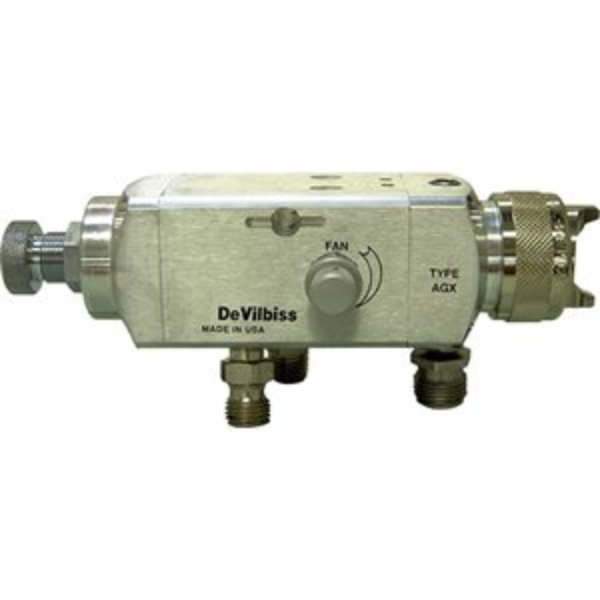

DD AGX-550-704FX

Automatic Spray Gun

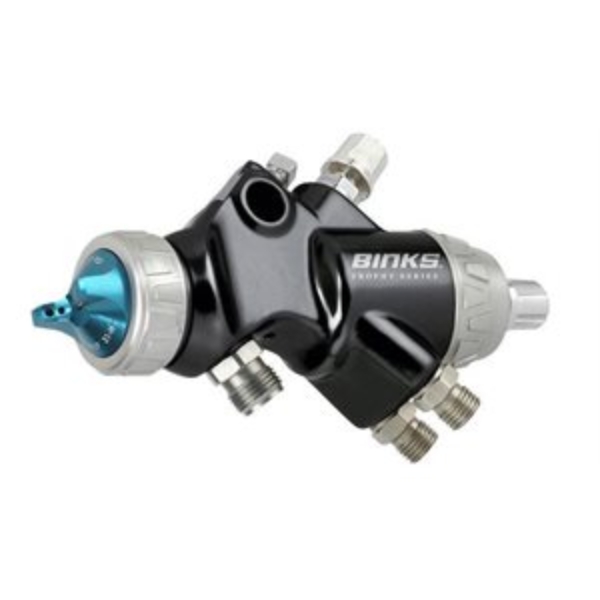

BB 3465-18LV-25S0

Trophy Auto 1.8 X 25Lvmp

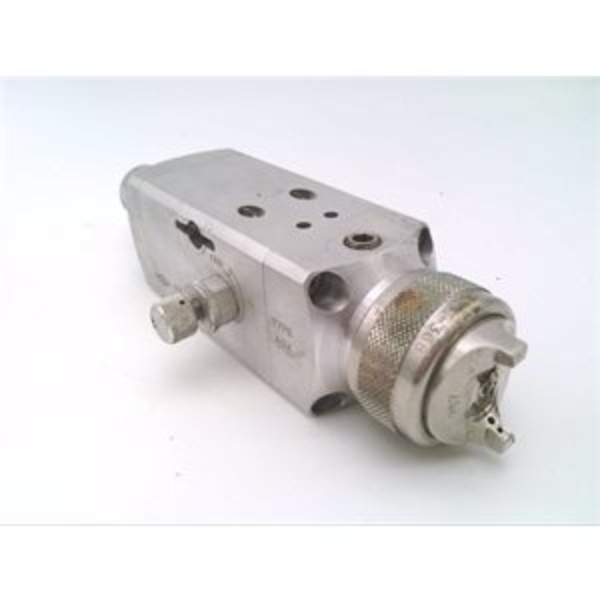

DD AGX-550-G

Automatic Spray Gun 400 S

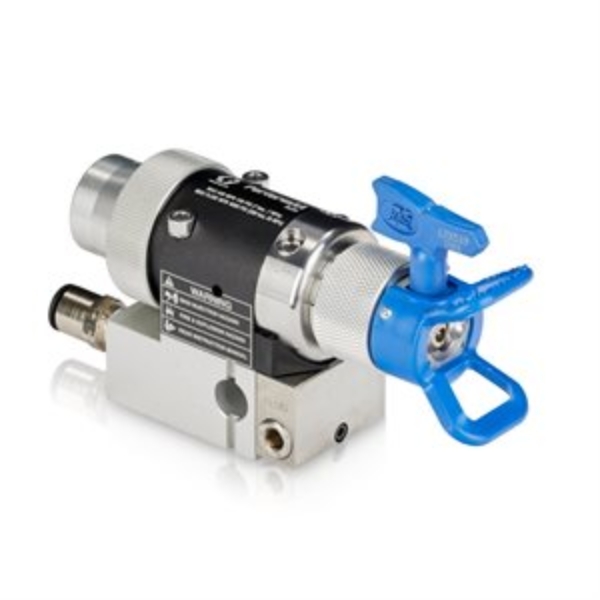

GG 26B573

PERFORMAA GUN, AA, AUTO, RAC

Graco 26B573 PerformAA Auto Air Assist Spray Gun with Reverse-A-Clean (RAC) air cap

Automatic air-assisted spray gun delivers performance above all when spraying a wide variety of coatings. For quick cleaning with minimal downtime, simply turn the reversible tip to the clean position and spray.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
• Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air
