Pumps

BB 104016

BB 41-9000

BB 104020-M2

BB PX1304-5U

BB 104041-N

SPX PA6R

BB 104009

BB GEM2-P1D1D61

BB MX1231PU-TDC1S25

GG CM2L79

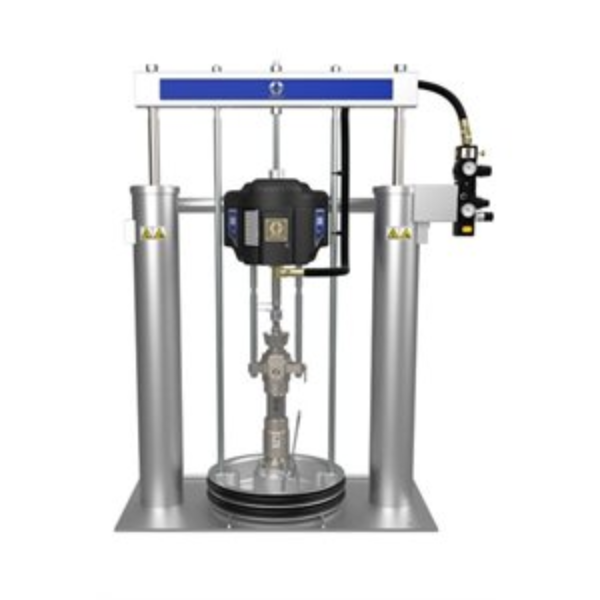

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

Graco CM2L79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200s

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm 2): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Height (cm): 266.5
• Maximum Height (ft): 8.74
• Maximum Height (in): 104.9
• Maximum Height (m): 2.66
• Maximum Height (mm): 2665

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 434
• Maximum Working Pressure (kPa): 43400
• Maximum Working Pressure (MPa): 43.4
• Maximum Working Pressure (psi): 6200

• Minimum Height (cm): 178.5
• Minimum Height (ft): 5.86
• Minimum Height (in): 70.3
• Minimum Height (m): 1.79
• Minimum Height (mm): 1785

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 121.9
• Overall Width (in): 48
• Overall Width (mm): 1219

• Power Type: Pneumatic

• Pump Ratio: 68:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM8F2F

BB 101-9450

BB GEM2-D1D1G51

BB GEM2-P2D1D60

BB GEM2-W2D3080

BB MX412UC-QLW0S25

GG CM3959

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM3959 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm 2): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 385
• Maximum Working Pressure (kPa): 38500
• Maximum Working Pressure (MPa): 38.5
• Maximum Working Pressure (psi): 5500

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 55:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM9A59

CHECK-MATE SUPPLY UNIT, 61:1, 0 VOLT, D200, 200L

Graco CM9A59 61:1 Ratio 200 L D200 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum
• Control Panel Material: N/A

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm 2): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 420.6
• Maximum Fluid Pressure (kPa): 42060
• Maximum Fluid Pressure (psi): 6100

• Maximum Fluid Pressure (bar): 420.6
• Maximum Fluid Pressure (kPa): 42060
• Maximum Fluid Pressure (psi): 6100

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 421
• Maximum Working Pressure (kPa): 42100
• Maximum Working Pressure (MPa): 42.1
• Maximum Working Pressure (psi): 6100

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 61:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

BB 104010

BB 104037

BB GEM2-W3S3081

BB MX1212PU-0DC1S00

BB MX44046PU-SMH

GG CM123G

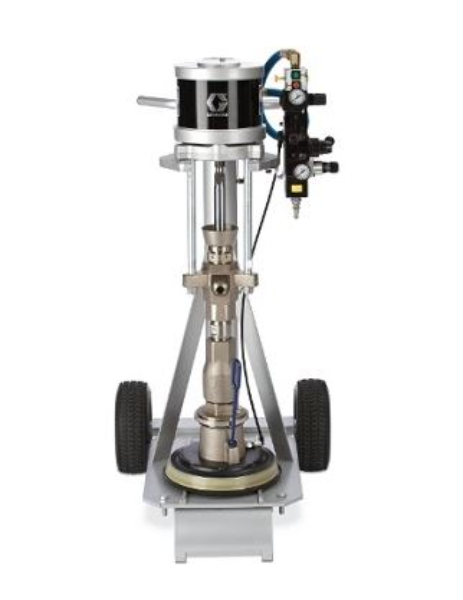

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, S20, 20L

Graco CM123G 40:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm 2): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 40:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM1F4F

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco CM1F4F Supply Unit, Check-Mate, 40:1, S/S, Severe Duty, 3 in. D60 Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D60

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm 2): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Height (cm): 226.06
• Maximum Height (ft): 7.42
• Maximum Height (in): 89
• Maximum Height (m): 2.26
• Maximum Height (mm): 2260.6

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Height (cm): 149.86
• Minimum Height (ft): 4.92
• Minimum Height (in): 59
• Minimum Height (m): 1.5
• Minimum Height (mm): 1498.6

• Overall Depth (cm): 45.72
• Overall Depth (in): 18
• Overall Depth (mm): 457.2

• Overall Width (cm): 71.12
• Overall Width (in): 28
• Overall Width (mm): 711.2

• Power Type: Pneumatic

• Pump Ratio: 40:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
