2100 Gun Assembly, 66Ss-66Sd(S)

BB 2101-4307-9

2100 Gun Assembly, 66Ss-66Sd(S)

$493.00

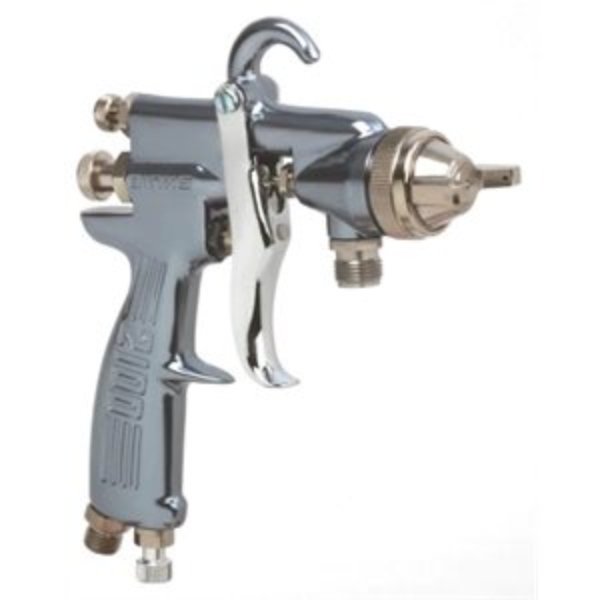

2100 Gun Assembly, 66Ss-66Sd-3

BB 2101-4308-2

2100 Gun Assembly, 66Ss-66Sd-3

$493.00

2100 Gun Assembly, 63Bss-63Pb(P)

BB 2101-2800-7

2100 Gun Assembly, 63Bss-63Pb(P)

$493.00

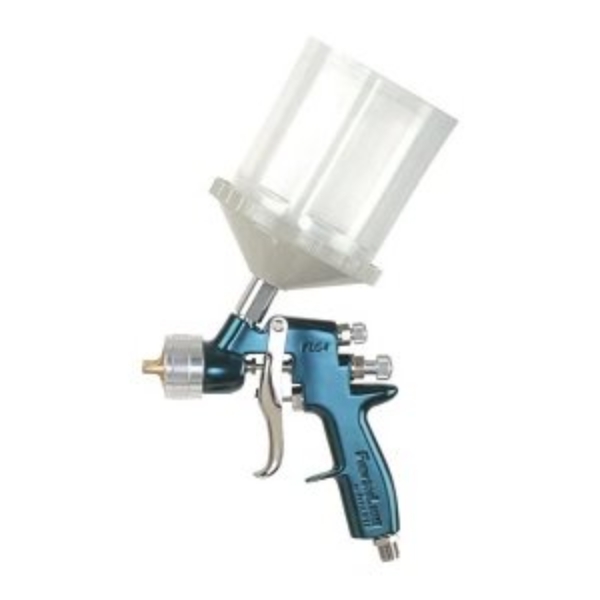

Flg4 Hvlp Gravity Gun With 1.5Mm Fluid Nozzle

DD FLG-HVG-315

Flg4 Hvlp Gravity Gun With 1.5Mm Fluid Nozzle

$484.00

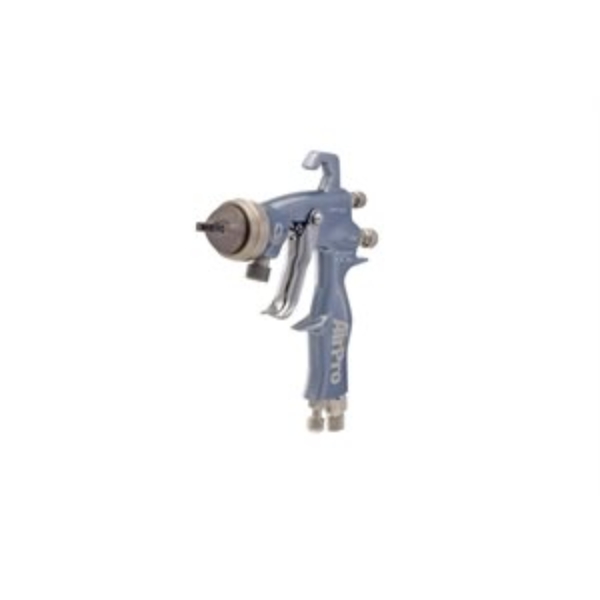

AIRPRO GUN, PRESSURE, AIR SPRAY, .055

GG 288931

AIRPRO GUN, PRESSURE, AIR SPRAY, .055

Graco 288931 AirPro Air Spray Pressure Feed Gun, Conventional, 0.055 inch (1.4 mm) Nozzle, for General Metal Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Metal
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.14
Fluid Orifice Size (in): 0.055
Fluid Orifice Size (mm): 1.4
Gun Activation: Manual
Gun Included: 1
Gun Type: Conventional Gun
Gun Weight (g): 410
Gun Weight (kg): 0.41
Gun Weight (lb): 0.9
Gun Weight (oz): 14.46
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

Call for pricing

2100 Gun Assembly, 68Ss-68Pb(P)

BB 2101-5111-5

2100 Gun Assembly, 68Ss-68Pb(P)

$493.00

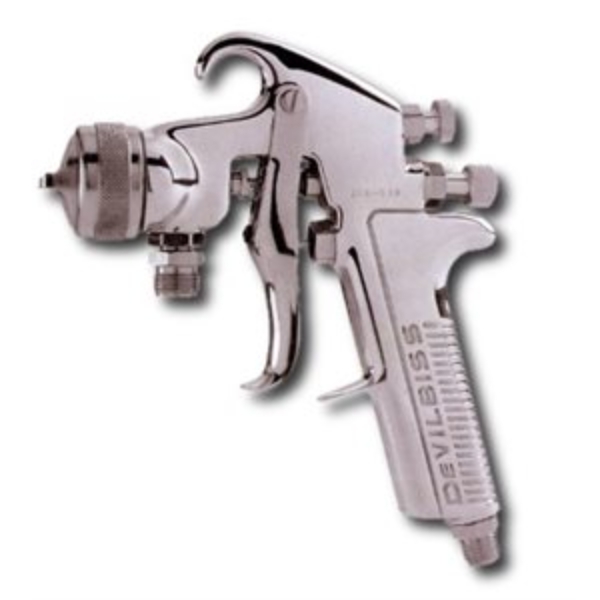

Jga Spray Gun, 704E (1.8)

DD JGA-510-704E

Jga Spray Gun, 704E (1.8)

$629.00

PRO XP GUN, ES, 85KV

GG L85T10

PRO XP GUN, ES, 85KV

Graco L85T10 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

The 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
The electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
Built-in durability means the paint spray gun is designed to last – and made in the USA.
Rugged, dependable design supported by a three year warranty.
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.

Model: Pro Xp
Series: 85

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM

Application: Electrostatic, Standard
Applicator Type: Manual

Coating Type: Standard, Specialty

Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

Display Type: Standard

Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM

Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 676
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81

Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120

Maximum Paint Resistivity (megohm/cm): Infinity

Minimum Paint Resistivity (megohm/cm): 25

Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5

Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$9,300.00

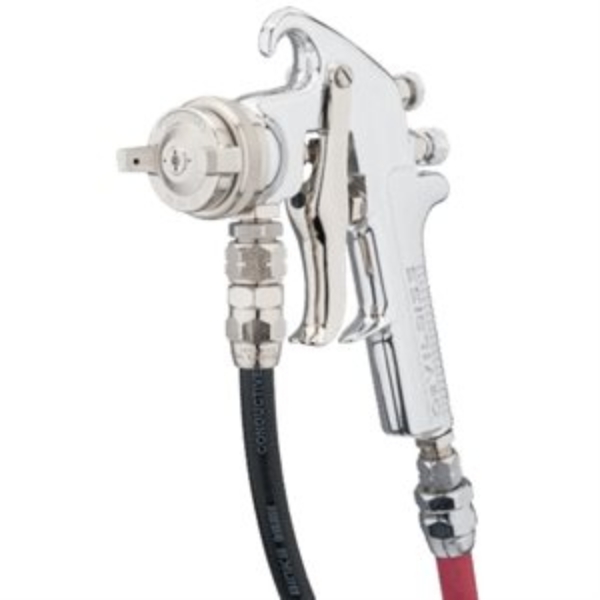

Jga Spray Gun, 30Ex (1.8)

DD JGA-510-30EX

Jga Spray Gun, 30Ex (1.8)

$629.00

Trophy Gun Pressure/Siphon, 1.4X32Hvlp

BB 2465-14HV-32S0

Trophy Gun Pressure/Siphon, 1.4X32Hvlp

$834.00

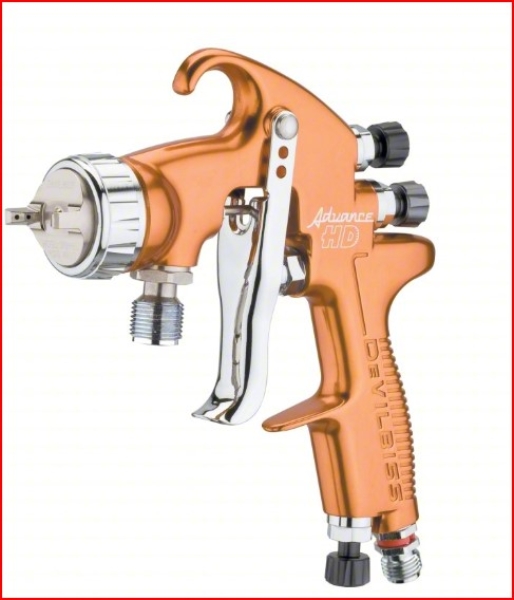

Advance Pressure Spraygun Kit Hvlp

DD ADV-P507-14

Advance Pressure Spraygun Kit Hvlp

$750.00

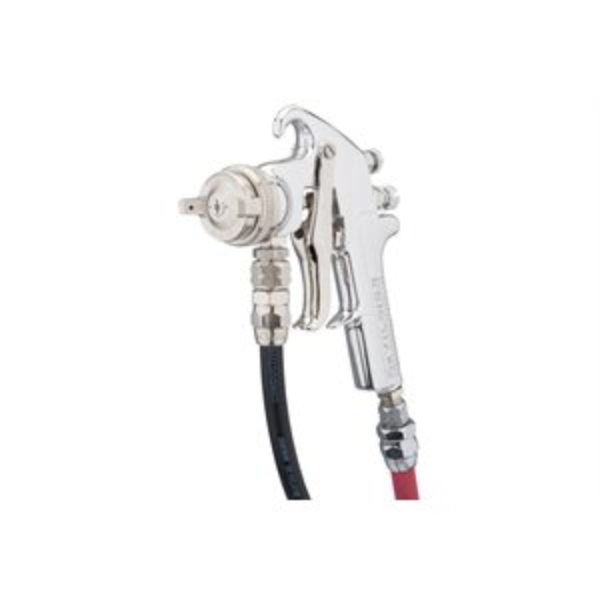

Spray Gun

DD JGA-510-FF

Spray Gun

$554.00

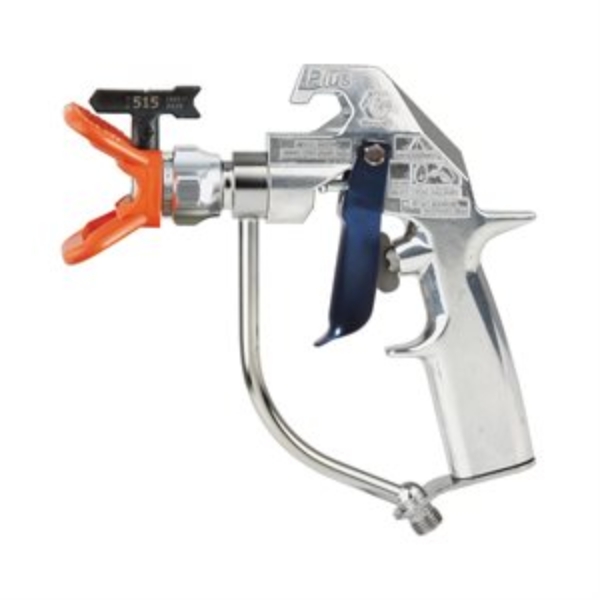

GUN, SILVER RAC

GG 243283

GUN, SILVER RAC

Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 517 SwitchTip The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. It is the preferred gun for high pressure applications. This Silver Plus gun includes a 2 finger trigger and a RAC 5 517 SwitchTip and Guard. Rugged Design

Durable forged aluminum withstands harsh work environments
Lighter weight than competitive guns Polished body is easy to clean

Exclusive Needle Design

Factory set needle needs no trigger adjustments
Guaranteed for life against breakage
Maximum performance and long life

Stainless Steel Fluid Tube

Fluid flows directly to the tip through the gun fluid tube
Provides the ability to spray heavier materials
Including high solid coatings and mastics

Optional Light Viscosity Needle Kit

Provides faster shut-off to reduce spitting of light viscosity material
Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)

$552.00

2100 Gun Assembly, 67Vt-67Pb(P)

BB 2101-4909-5

2100 Gun Assembly, 67Vt-67Pb(P)

$696.00

W77-03N 1.4mm Spray Gun

IW 3103

W77-03N 1.4mm Spray Gun

$376.54

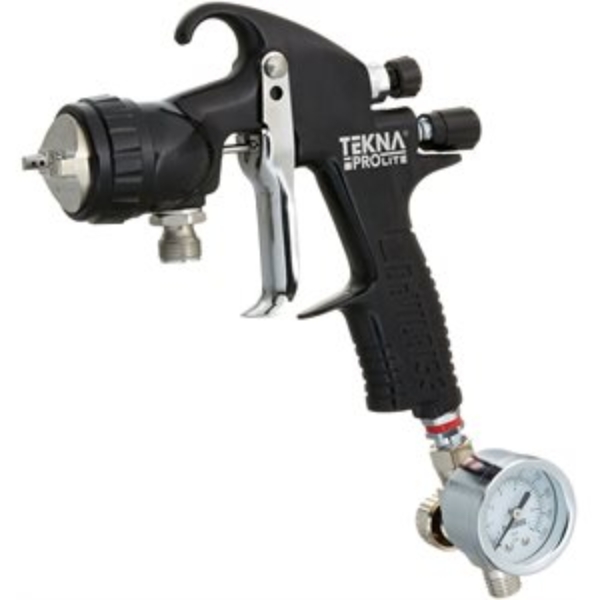

Tekna Prolite Gun/Cap (1.0, 1.2, 1.4, Te40, Hv40)

DD 303939

Tekna Prolite Gun/Cap (1.0, 1.2, 1.4, Te40, Hv40)

$1,102.00

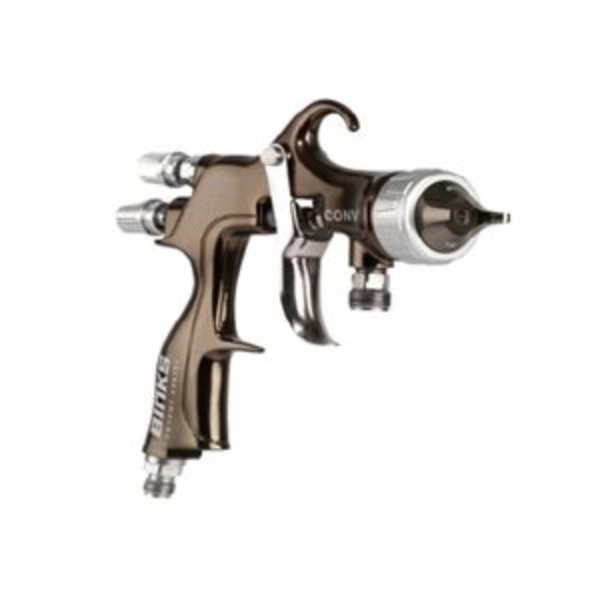

Trophy Gun Pressure/Siphon, 1.4X11Conv

BB 2465-14CN-11S0

Trophy Gun Pressure/Siphon, 1.4X11Conv

$834.00

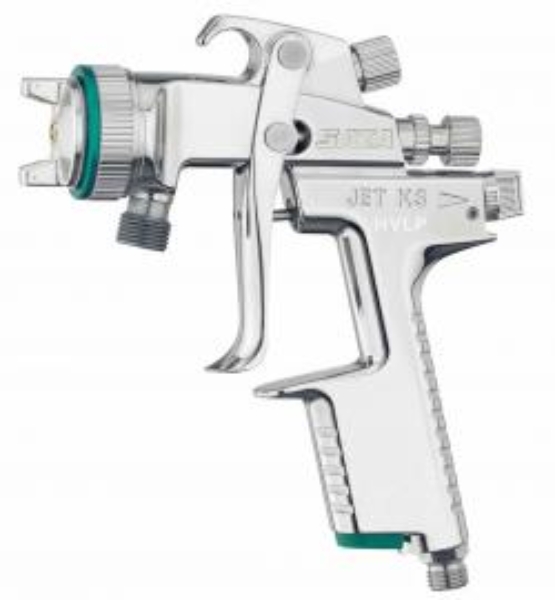

Sata Jet 3000 K Hvlp Gun /1.0 Noz

SATA 92924

Sata Jet 3000 K Hvlp Gun /1.0 Noz

Call for pricing

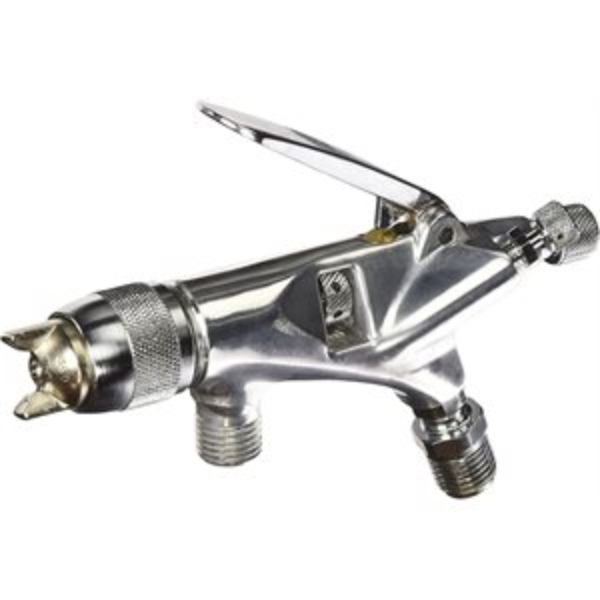

Detail Spray Gun (1.0)

DD EGA-503-390F

Detail Spray Gun (1.0)

$472.00

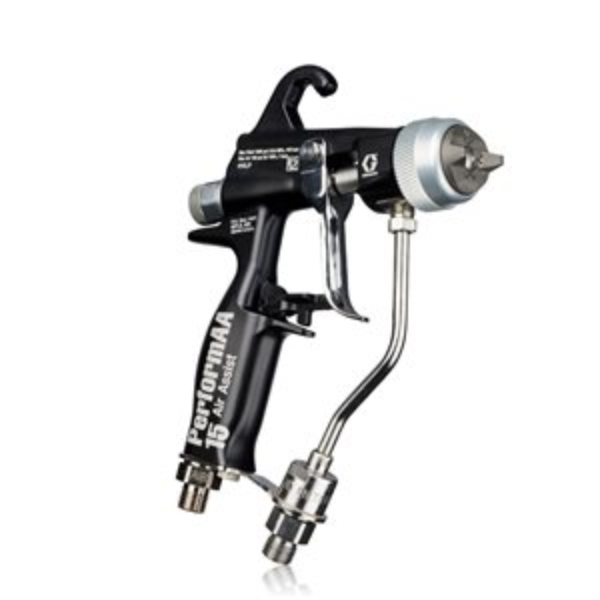

PERFORMAA GUN, AA, 1500, GF

GG 26B500

PERFORMAA GUN, AA, 1500, GF

Graco 26B500 PerformAA 1500 Air Assist Gun with General Finishing air cap

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

High quality 1500 psi air assist spray gun
General finishing air cap for a wide range of materials
Indexing air cap for accurate spray position
Clicking fan pattern adjustment knob for accurate adjustment

Model: PerformAA 15

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
Compatible Spray Tip: AXM, AXF
Feed Type: Pressure Feed
Fluid Adjustment Knob: Clicking
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Included: 1
Gun Type: Air-Assisted Gun
Gun Weight (g): 453
Gun Weight (kg): 0.45
Gun Weight (lb): 1
Gun Weight (oz): 16
Gun Weight with Tip and Guard (g): 480
Gun Weight with Tip and Guard (oz): 17.1
Gun Weight without Tip and Guard (g): 460
Gun Weight without Tip and Guard (oz): 16.2
Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 105
Maximum Fluid Pressure (kPa): 10500
Maximum Fluid Pressure (MPa): 10.5
Maximum Fluid Pressure (psi): 1500
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 110
Maximum Fluid Pressure (bar): 105
Maximum Fluid Pressure (kPa): 10500
Maximum Fluid Pressure (MPa): 10.5
Maximum Fluid Pressure (psi): 1500
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 110
Overall Height (cm): 20.8
Overall Height (in): 8.2
Overall Height (mm): 208
Overall Length (cm): 15.25
Overall Length (in): 6
Overall Length (mm): 152
Product Type: Spray Gun

$1,140.00

Wider2L-14G2P, Conventional Pressure, 1.4 - Replaces# 5405

IW 21012

Wider2L-14G2P, Conventional Pressure, 1.4 - Replaces# 5405

$708.01

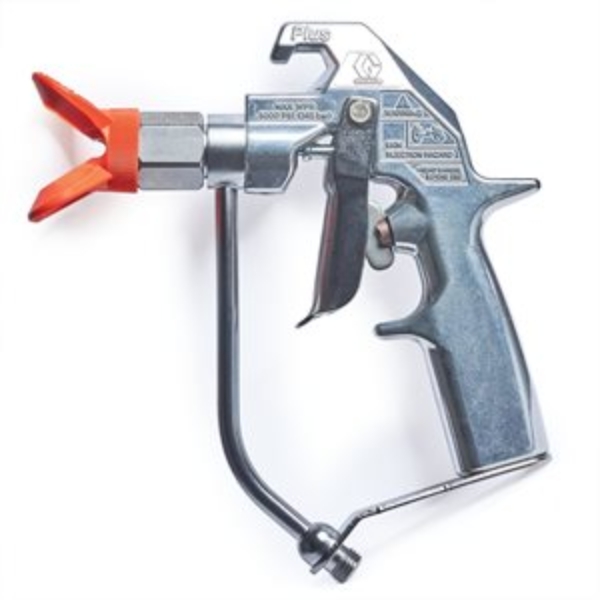

GUN, SILVER, FINE FINISH

GG 235462

GUN, SILVER, FINE FINISH

Silver Plus Airless Spray Gun, 2 Finger Trigger, Fine Finish Flat Tip The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Fine Finish Flat Tip Guard. Rugged Design

Durable forged aluminum withstands harsh work environments
Lighter weight than competitive guns Polished body is easy to clean

Exclusive Needle Design

Factory set needle needs no trigger adjustments
Guaranteed for life against breakage
Maximum performance and long life

Stainless Steel Fluid Tube

Fluid flows directly to the tip through the gun fluid tube
Provides the ability to spray heavier materials
Including high solid coatings and mastics

Optional Light Viscosity Needle Kit

Provides faster shut-off to reduce spitting of light viscosity material
Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)

$552.00

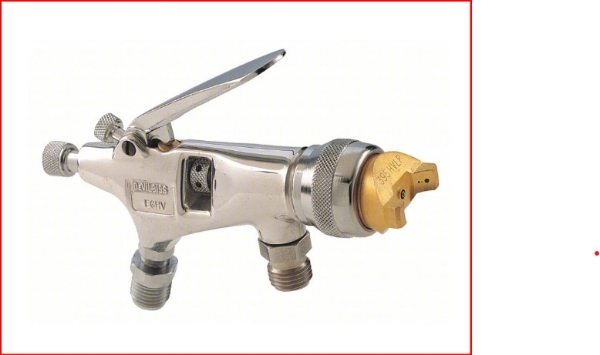

Spray Gun Assembly - Hvlp

DD EGHV-531-397E

Spray Gun Assembly - Hvlp

$562.00

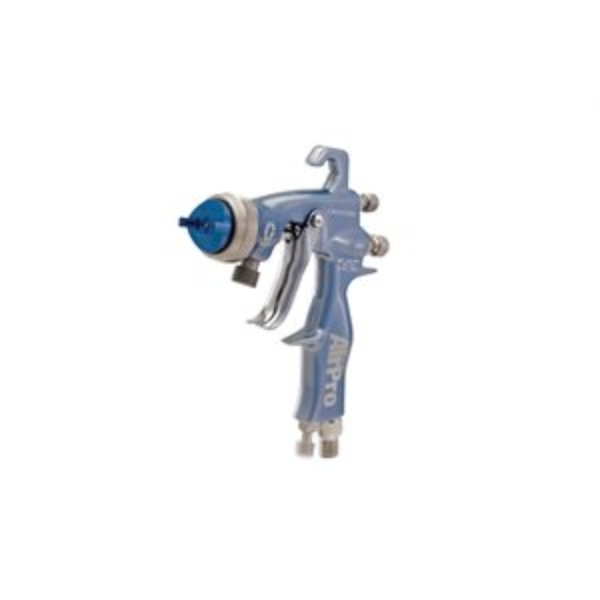

AIRPRO GUN, SIPHON, CONV, .070

GG 289992

AIRPRO GUN, SIPHON, CONV, .070

Graco 289992 AirPro Air Spray Siphon Feed Gun, Conventional, 0.070 inch (1.8 mm) Nozzle, without Siphon Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.

Even material distribution through the spray pattern for optimum coverage
Improved transfer efficiency through reduced air consumption
Enhanced atomization through material-specific aircaps
Ultra-light trigger pull reduces operator muscle stress
Ergonomic gun handle provides a comfortable grip
Rounded control knobs for operator comfort
Optimize spray performance with our cutting edge aircap and nozzle design
Choose from a wide range of gun models to meet the needs of your specific application

Model: AirPro

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPSM
Application: Specialty
Applicator Type: Manual
Bleed Type: Non-Bleeder
Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
Feed Type: Siphon Feed
Fluid Inlet Size (cm): 0.9525
Fluid Inlet Size (in): 3/8
Fluid Inlet Size (mm): 9.525
Fluid Inlet Thread Type: NPSM
Fluid Orifice Size (cm): 0.18
Fluid Orifice Size (in): 0.070
Fluid Orifice Size (mm): 1.8
Gun Activation: Manual
Gun Included: 1
Gun Type: Conventional Gun
Gun Weight (g): 410
Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Maximum Fluid Pressure (bar): 21
Maximum Fluid Pressure (kPa): 2100
Maximum Fluid Pressure (MPa): 2.1
Maximum Fluid Pressure (psi): 300
Maximum Fluid Temperature (°C): 43
Maximum Fluid Temperature (°F): 109
Product Type: Spray Gun

$454.00

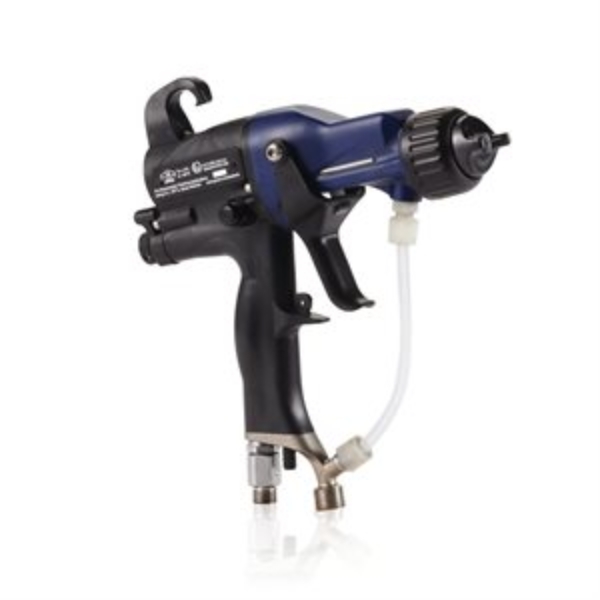

PRO XP GUN, ES, 40KV, GROUND POINT

GG L40T14

PRO XP GUN, ES, 40KV, GROUND POINT

Graco L40T14 Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, 0.055 in (1.5 mm) nozzle, standard display

Get the transfer efficiency of a 60 kV electrostatic air spray gun in the compact size of a 40 kV gun. The smaller and lighter ergonomics make it ideal for operators who work in tight spaces.

Easily adjust gun performance with large, simple-to-use, control knobs.
Durable components are backed by a three-year warranty and A+ Service.
Made in the USA
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 40

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Manual
Coating Type: Standard
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 560
Gun Weight (kg): 0.56
Gun Weight (lb): 1.23
Gun Weight (oz): 19.75
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 22.1
Overall Length (in): 8.7
Overall Length (mm): 221

$8,470.00

Refine
