Other Pumps

GG 226940

FAST-FLO PUMP, 1:1, CS, 55 GAL

Graco 226940 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with T&L Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG 226941

FAST-FLO PUMP, 1:1, CS, 55 GAL

Graco 226941 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with PE Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG 224343

MONARK PUMP, 5:1

Graco 224343 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/PTFE Packings

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.46

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Portable: Non-Portable

• Pump Ratio: 5:1

GG 226946

FAST-FLO PUMP, (1:1), CS, 55 GAL

Graco 226946 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with T Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG CM2L59

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

Graco CM2L59 68:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 434
• Maximum Working Pressure (kPa): 43400
• Maximum Working Pressure (MPa): 43.4
• Maximum Working Pressure (psi): 6200

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 68:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG 224350

MONARK PUMP,5:1

Graco 224350 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

GG 557814

METER-FLO PUMP, 9/14 CU IN/MIN CCW NPT

Graco 557814 Meter-Flo Electric Pump, 14 cu in/min (229 cc/min) @ 1,725 rpm, NPT Ports, CCW

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm's with output volumes of 245 cubic inches per minute (4015 cc/min).

• Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
• Positive displacement helps assure constant delivery of proper volume.
• Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
• Adjustable pressure relief valve protects pump against overload conditions.
• Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
• Lubriquip part number 540-800-011

• Model: Meter-Flo

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (ci/min): 14

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum SUS Grade (SUS): 3000

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): 10
• Minimum Operating Temperature (°F): 50

• Minimum SUS Grade (SUS): 300

• Power Type: Electric

GG B15FA0

GG P23LSA

DURA-FLO PUMP, 6500/580

Graco P23LSA Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 3 UHMWPE/2 PTFE Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 164
• Maximum Working Pressure (kPa): 16400
• Maximum Working Pressure (MPa): 16.4
• Maximum Working Pressure (psi): 2380

• Motor Type: Low Noise NXT

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 23:1

GG 563306

MODU-FLO PUMP, ASSY AL-25

Graco 563306 Modu-Flo AL-25 Pneumatic Pump without Reservoir

Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.

• Easy to standardize on components and reduce inventory
• Adjustable pump output for fast, convenient customizing
• Lubriquip part number 521-000-021

• Model: Modu-Flo
• Series: AL-25

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease
• Compatible Metering Device: Series Progressive

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Cycle Rate (CPM): 30

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (MPa): 31
• Maximum Working Pressure (psi): 3000

• Overall Depth (cm): 7.3
• Overall Depth (in): 2.875
• Overall Depth (mm): 73

• Overall Height (cm): 7.3
• Overall Height (in): 2.875
• Overall Height (mm): 73
• Overall Width (cm): 26.4
• Overall Width (in): 10.375
• Overall Width (mm): 264

• Power Type: Pneumatic

GG 223954

GG 24W347

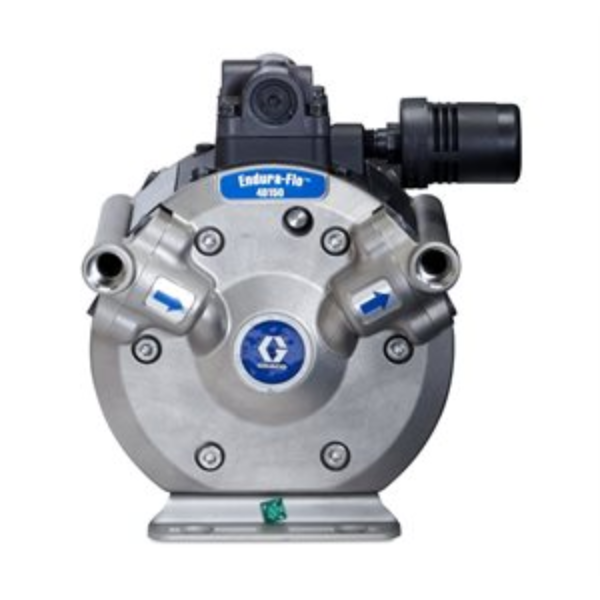

ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD

Graco 24W347 Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, BSPP

The Endura-Flo 4D offers the industry's highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 4D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: BSPP

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: BSPP

• Includes: BSPP Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Overall Height (in): 12.23

• Power Source: Air

• Pump Ratio: 4:1

GG 237129

FAST-FLO PUMP, (1:1)

Graco 237129 1:1 Ratio Fast-Flo Air Operated Piston Transfer Stainless Steel Drum Pump with T Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG 224348

PRESIDENT PUMP, 10:1

Graco 224348 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Drum, UHMWPE/PTFE Packings

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Portable: Non-Portable

• Pump Ratio: 10:1

GG 260407

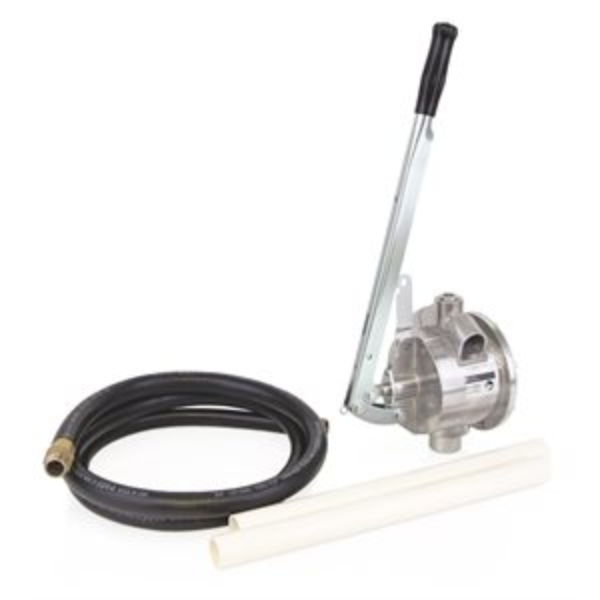

PUMP, PISTON HAND, FUEL

Graco 260407 Piston Hand Pump for Petroleum Products

• Lightweight die cast aluminum construction
• Corrosion resistant design
• High quality piston seals are designed for long life and smooth operation.
• Adjustable bung adapter allows pump to be rotated
• One quart per stroke gives fast, efficient fluid transfer
• Locking mechanism prevents unauthorized dispensing

• Application: Industrial

• Compatible Material: Oil, Grease

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Hose, Die Cast Aluminum Nozzle, Inlet Suction Tube, Bung Adapter

GG CM155A

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Graco CM155A 63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44.1
• Maximum Working Pressure (psi): 6300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 63:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG 220663

GLUTTON PUMP, (4:1 CS)

Graco 220663 Glutton 4:1 Bellows Pump, CS, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

GG CM1559

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Graco CM1559 63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44.1
• Maximum Working Pressure (psi): 6300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 63:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG 25M740

ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, STD

Graco 25M740 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 3D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Overall Height (in): 12.23

• Power Source: Air

• Pump Ratio: 3:1

GG 25M761

ENDURA-FLO PUMP, 3:1 AODD, 350, NPT, ADV

Graco 25M761 Endura-Flo 3D350, 3:1 Air Operated Diaphragm Pump, 350cc, NPT, DataTrak

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
• DataTrek option prevents runaway and tracks material usage

• Model: Endura-Flo
• Series: 3D350

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings, DataTrak

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 5.5
• Maximum Flow Rate (L/min): 20.8

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Power Source: Air

• Pump Ratio: 3:1

GG D73311

GG 24W346

ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD

Graco 24W346 Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, NPT

The Endura-Flo 4D offers the industry's highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 4D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Overall Height (in): 12.23

• Power Source: Air

• Pump Ratio: 4:1

GG 235870

PUMP, EXTRUDER, SST, 190

Graco 235870 DynaMite Pump Assembly

The Graco DynaMite Pump utilizes the NXT air motor to provide the power necessary to move viscous materials.

• Application: Bonding, Sealing, Gasketing, Thermal Management

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Operating Temperature (°C): 60
• Maximum Operating Temperature (°F): 140

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Overall Depth (cm): 20.96
• Overall Depth (in): 8.25
• Overall Depth (mm): 209.6

• Overall Width (cm): 43.2128
• Overall Width (in): 17.0129
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 12:1

GG CM7A3B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

Graco CM7A3B 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG 220666

GLUTTON PUMP, (4:1 SST)

Graco 220666 Glutton 4:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 5.6
• Maximum Flow Rate (L/min): 21.2

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 4:1
