    Glutton Pump, (4:1 Sst)

    Manufacturer: GRACO INC. S10595

    GG 220666

    GLUTTON PUMP, (4:1 SST)

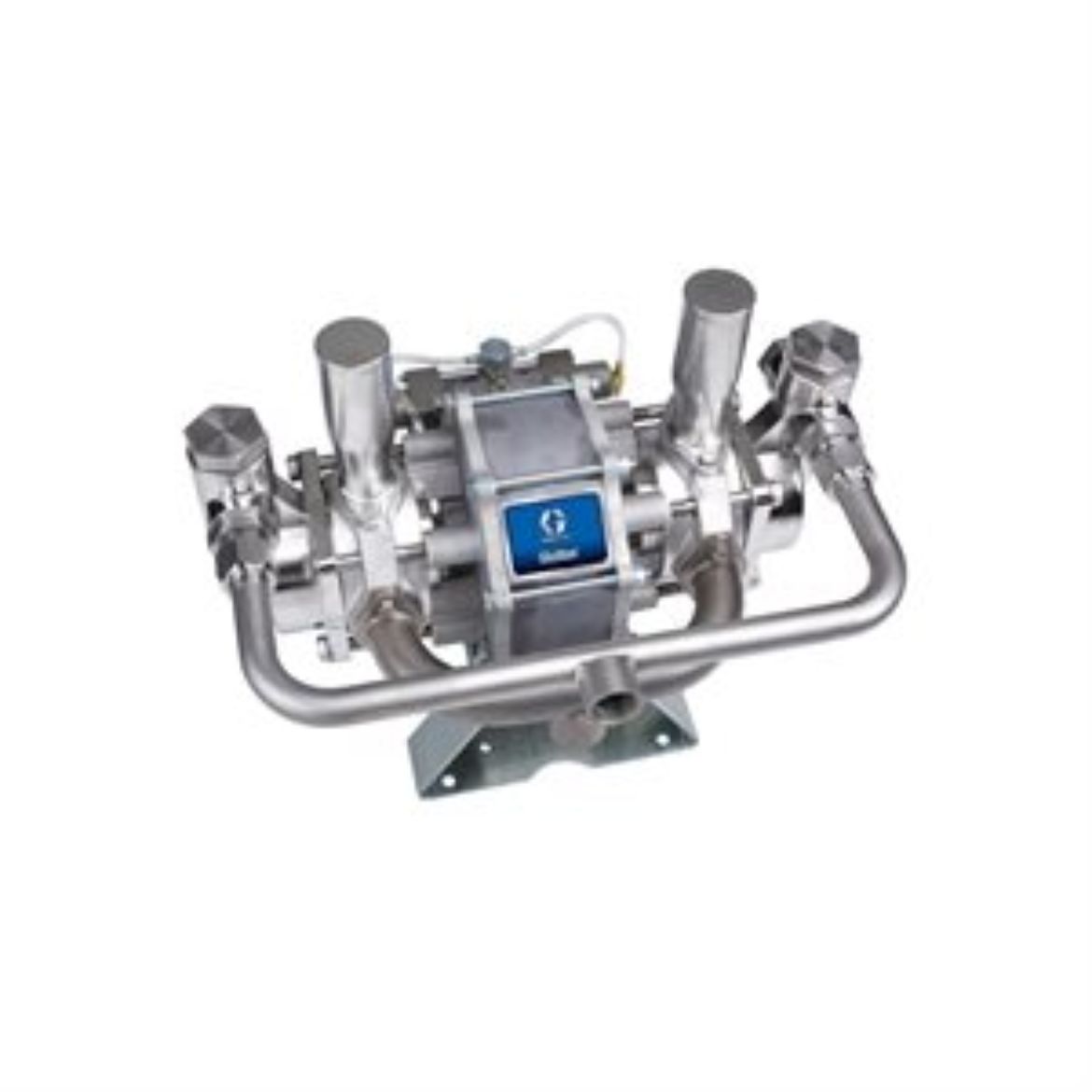

    Graco 220666 Glutton 4:1 Bellows Pump, SST, UHMWPE Seals

    The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

    • Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
    • Designed to handle a broad range of applications, including abrasive materials
    • Reversible outlet manifold simplifies plumbing installations


    • Model: Glutton
    • Series: Bellows
    • Air Inlet Size (in): 0.5
    • Air Inlet Size (mm): 12.7
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Application: Circulation
    • Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Fluid Section Type: Sealed
    • Material: Stainless Steel
    • Maximum Air Inlet Pressure (bar): 6.9
    • Maximum Air Inlet Pressure (kPa): 690
    • Maximum Air Inlet Pressure (psi): 100
    • Maximum Continuous Cycle Rate (CPM): 60
    • Maximum Flow Rate (GPM): 5.6
    • Maximum Flow Rate (L/min): 21.2
    • Maximum Operating Temperature (°C): 66
    • Maximum Operating Temperature (°F): 150
    • Maximum Working Pressure (bar): 28
    • Maximum Working Pressure (kPa): 2800
    • Maximum Working Pressure (MPa): 2.8
    • Maximum Working Pressure (psi): 400
    • Portable: Non-Portable
    • Pump Ratio: 4:1
    SKU: GG 220666
    Availability:
    Price: $11,460.00
