Torque Management

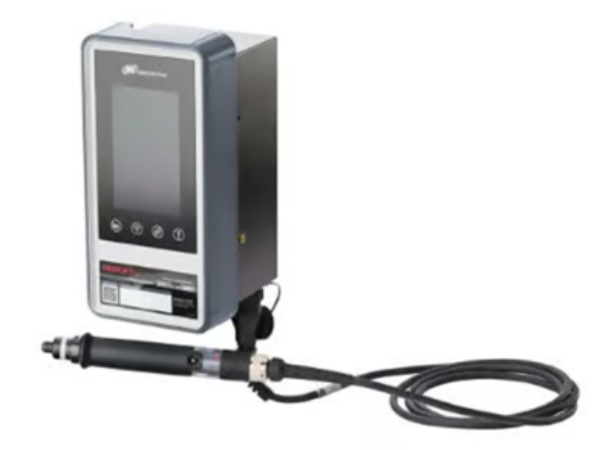

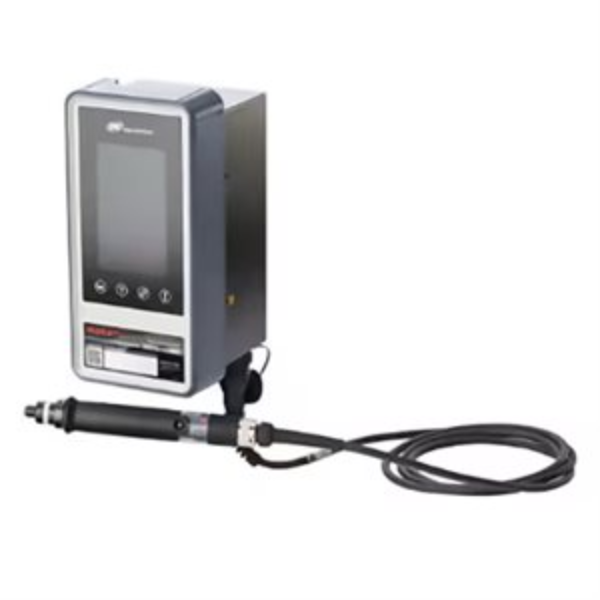

IR QCD11-FM

INSIGHTqc Controller, 120V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces - compared to 10 to 30K in competitors' products - which will let users understand all facets of the tightening process - torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

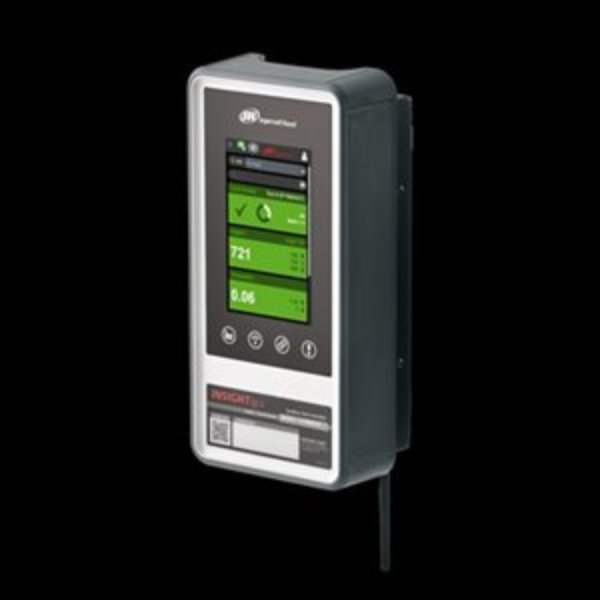

IR QCXD11-FM

INSIGHTqcx Cordless Controller, Standard Hardware, Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

Product Application and Uses:

These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 24
• Warranty: 1-year

PAN EYFGB1N

IR IC12D1A1AWS

STR 10600

Torque Testers: System 8 Digital Torque Tester

Product Description

IR MTC-SW-OPT4-NA

AIM ATC-100

STR 10599

Calibration and Certification Software: Torque Tool Manager 4.0

Product Description

• Calibration and certification software directly engineered to work with Torq-Tronics 2 and System 8
• Backward compatible so it also works with Torq-Tronics, System 4/5, and System 6
• Fulfills your TS 16949 and ISO 17025 requirements
• Gives you a robust database about your torque tools and it also allows you to print Calibration Certificates
• Track past and future calibration dates
• Keeps records for each tool, including calibration date, serial number, tester and transducer serial numbers, and operator identification
• Tracks "As Found" and "As Left" test results
• NIST traceability numbers and all other data requirements for ISO and QS compliance are covered
• Error-proofs calibration procedures and virtually eliminates retesting due to operator error
• Downloads the proper test protocol to your SR tester and sets up the tester for the tool
• Only accepts results that are in line with the test protocol. Errors resulting from failure to follow the programmed test procedure are automatically rejected
• Has a send request radio button - 30 day free trial available by request

IR QXX2A52T0594PS12

3/4" 20V Cordless Angle Torque Wrench, Bare Tool, 5257 in-lb, Bluetooth/802.15.4

Description: The innovative QX Series Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity. Offer option for Insight Connect Android APP Link

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 degree adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 14
• Max Torque (ft-lb): 438
• Max Torque (in-lb): 5257
• Max Torque (nm): 594
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 88-438
• Recommended Forward Torque Range (in-lb): 1053-5257
• Recommended Forward Torque Range (nm): 119-594
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

PAN EYFGA1N

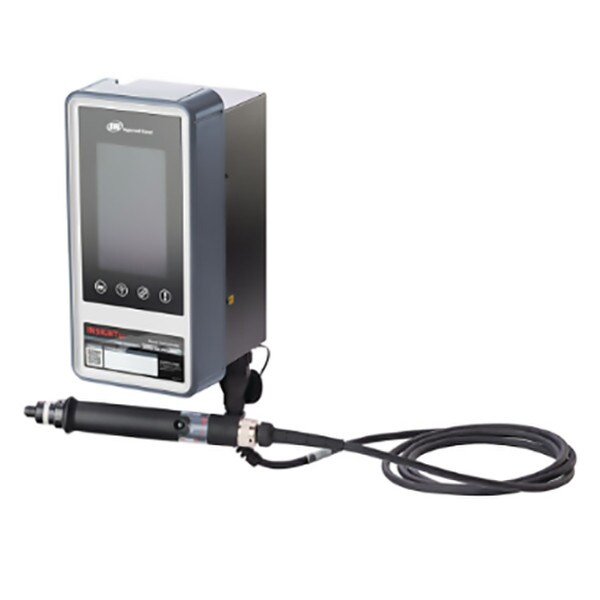

IR QCD21-FM

INSIGHTqc Controller, 230V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces - compared to 10 to 30K in competitors' products - which will let users understand all facets of the tightening process - torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

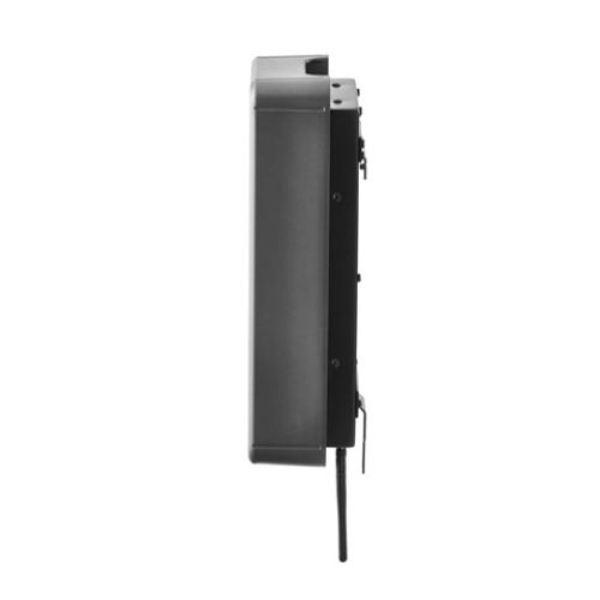

IR QCXM11-FM

INSIGHTqcx Cordless Controller, Standard Hardware, No Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: No Display
• Warranty: 1-year

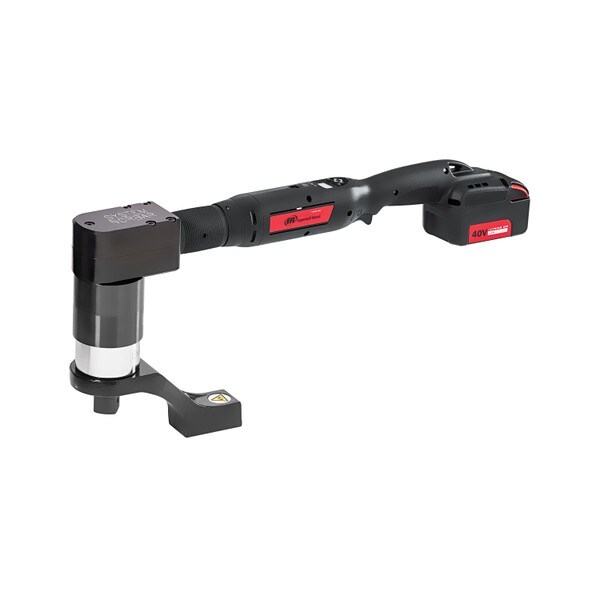

IR QXX5A72T1620PS16

1" 40V Cordless Angle Torque Wrench, 14338 in-lb, Bare Tool, Bluetooth/802.15.4

Description: Meet the tool that's taking torque to the next level - the QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series 40V Cordless Torque Multiplier.

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 degree adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 13
• Max Torque (ft-lb): 1195
• Max Torque (in-lb): 14338
• Max Torque (nm): 1620
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 239-1195
• Recommended Forward Torque Range (in-lb): 2868-14338
• Recommended Forward Torque Range (nm): 324-1620
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• P

IR QXX5A52T0880PS12

3/4" 40V Cordless Angle Torque Wrench, 7789 in-lb, Bare Tool, Bluetooth/802.15.4

Description: Meet the tool that's taking torque to the next level - the QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series 40V Cordless Torque Multiplier.

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 degree adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 23
• Max Torque (ft-lb): 649
• Max Torque (in-lb): 7789
• Max Torque (nm): 880
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 133-649
• Recommended Forward Torque Range (in-lb): 1593-7789
• Recommended Forward Torque Range (nm): 180-880
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Part

PAN EYFEA1N2S

PAN EYFGB2N

IR IQCTA

IR QCD21

INSIGHTqc Controller, 230V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces - compared to 10 to 30K in competitors' products - which will let users understand all facets of the tightening process - torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES option.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QXX5A45T0180PS12

3/4" 40V Cordless Angle Torque Wrench, 1593 in-lb, Bare Tool, Bluetooth/802.15.4

Description: Meet the tool that's taking torque to the next level - the QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series 40V Cordless Torque Multiplier.

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 degree adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 110
• Max Torque (ft-lb): 133
• Max Torque (in-lb): 1593
• Max Torque (nm): 180
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 12-133
• Recommended Forward Torque Range (in-lb): 142-1593
• Recommended Forward Torque Range (nm): 16-180
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts:

STR 10009

Torque Transducers: TT and STT Series

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

AIM ATC-500

IR QCD11-F

INSIGHTqc Controller, 120V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces - compared to 10 to 30K in competitors' products - which will let users understand all facets of the tightening process - torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCXD11

INSIGHTqcx Cordless Controller, Standard Hardware, Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

Product Application and Uses:

These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 24
• Warranty: 1-year

IR QXX2A52T0396PS12

3/4" 20V Cordless Angle Torque Wrench, 3496 in-lb, Bare Tool, Bluetooth/802.15.4

Description: The innovative QX Series Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity. Offer option for Insight Connect Android APP Link

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 degree adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 21
• Max Torque (ft-lb): 291
• Max Torque (in-lb): 3496
• Max Torque (nm): 395
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 58-291
• Recommended Forward Torque Range (in-lb): 699-3496
• Recommended Forward Torque Range (nm): 79-395
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

PAN EYFGB3N
