Fluid Regulators

View as Grid List

Sort by

Display items per page

Regulator, Press Fluid SST

GG 214706

Regulator, Press Fluid SST

Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves Stainless steel wetted materials are compatible with catalyst and waterborne materials Removable adjustment key eliminates operator interference Manual quick flush mode ensures easy cleaning without impacting production settings Tungsten and carbide materials ensure low wear and long life PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

$840.00

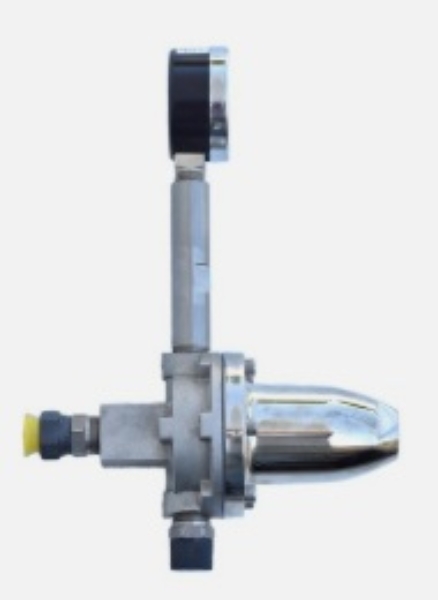

Fluid Regulator

DD HGB-508-1

Fluid Regulator

$838.00

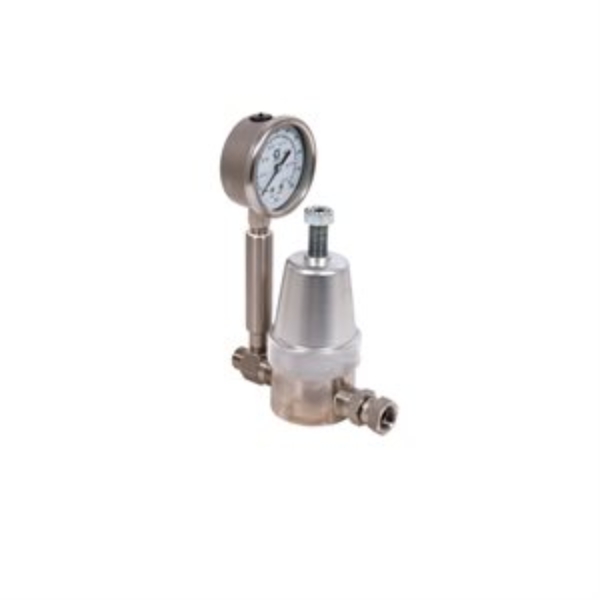

REGULATOR, BACK PRESSURE

GG 236770

REGULATOR, BACK PRESSURE

Graco 236770 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, SST, Manual, 3/8 (m) x 3/8 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

Stainless steel wetted materials are compatible with catalyst and waterborne materials
Tungsten and carbide materials ensure low wear and long life
Compact and lightweight design saves space and reduces payload for small circulation systems
Air operated model available for automated control, Conversion kit (237448)

Compatible Material: Catalyst, Waterborne

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Type: NPT
Inlet Size (cm): 0.9525
Inlet Size (in): 3/8
Inlet Size (mm): 9.525
Inlet Thread Type: NPSM
Maximum Flow Rate (GPM): 4.3
Maximum Flow Rate (L/min): 16.28
Maximum Regulated Pressure (bar): 12.4
Maximum Regulated Pressure (kPa): 1240
Maximum Regulated Pressure (psi): 180
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 21
Maximum Working Pressure (kPa): 2100
Maximum Working Pressure (psi): 300
Minimum Regulated Pressure (bar): 0.3
Minimum Regulated Pressure (kPa): 30
Minimum Regulated Pressure (MPa): 0.03
Minimum Regulated Pressure (psi): 5
Outlet Size (cm): 0.9525
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Type: NPSM

$997.00

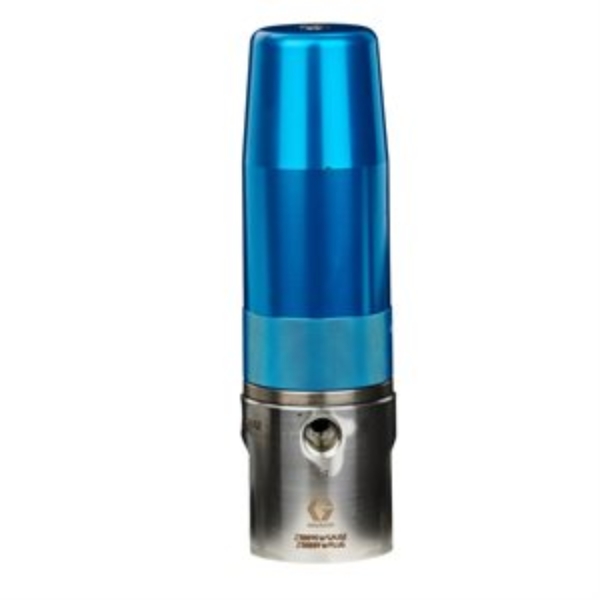

REGULATOR, PRESSURE, FLUID

GG 238890

REGULATOR, PRESSURE, FLUID

Corrosion Resistant High Pressure Fluid Regulator, 500-3000 psi Range, 1.0 GPM, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge Stainless steel wetted materials are compatible with catalyst and waterborne materials Tungsten and carbide materials ensure low wear and long life Valve cartridge for quick cleaning and replacement – reduce downtime Glycerin filled gauge for accurate pressure reading

$1,365.00

REGULATOR, PRESS, FLUID, 0-60 PSI

GG 241976

REGULATOR, PRESS, FLUID, 0-60 PSI

Graco 241976 Low Pressure Lightweight Fluid Regulator, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

Lightweight composite material is compatible with waterborne materials
PTFE, stainless steel seat, and carbide ball provide wear resistance
Pressure adjustment key with locking mechanism protects production settings

Actuation Type: Spring

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Type: NPT
Includes: Regulator Only
Inlet Size (cm): 0.635
Inlet Size (in): 1/4
Inlet Size (mm): 6.35
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 0.5
Maximum Flow Rate (L/min): 1.89
Maximum Regulated Pressure (bar): 2.1
Maximum Regulated Pressure (kPa): 210
Maximum Regulated Pressure (MPa): 0.21
Maximum Regulated Pressure (psi): 30
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Minimum Regulated Pressure (bar): 0.2
Minimum Regulated Pressure (kPa): 20
Minimum Regulated Pressure (MPa): 0.02
Minimum Regulated Pressure (psi): 3
Outlet Size (cm): 0.635
Outlet Size (in): 1/4
Outlet Size (mm): 6.35

$685.00

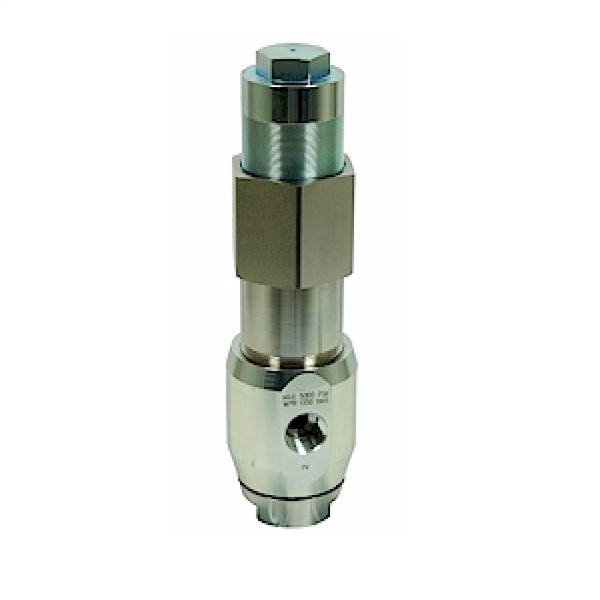

REGULATOR, MASTIC

GG 903958

REGULATOR, MASTIC

Graco 903958 Spring Operated Mastic Fluid Pressure Regulator

The mastic regulator is ideal for low to high viscosity sealants or adhesives

Application: These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.

Actuation Type: Spring

Flow Control Type: Regulation
Gauge Port Size (cm): 1.905
Gauge Port Size (in): 3/4
Gauge Port Size (mm): 19.05
Gauge Port Type: NPT
Inlet Size (cm): 1.905
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPT
Maximum Regulated Pressure (bar): 310
Maximum Regulated Pressure (kPa): 31000
Maximum Regulated Pressure (MPa): 31.0
Maximum Regulated Pressure (psi): 4500
Maximum Viscosity (cP): 80000
Maximum Working Pressure (bar): 344
Maximum Working Pressure (kPa): 34400
Maximum Working Pressure (MPa): 34.4
Maximum Working Pressure (psi): 5000
Minimum Regulated Pressure (bar): 70
Minimum Regulated Pressure (kPa): 7000
Minimum Regulated Pressure (MPa): 7.0
Minimum Regulated Pressure (psi): 1000
Outlet Size (cm): 1.905
Outlet Size (in): 3/4
Outlet Size (mm): 19.05
Outlet Thread Type: NPT

$2,550.00

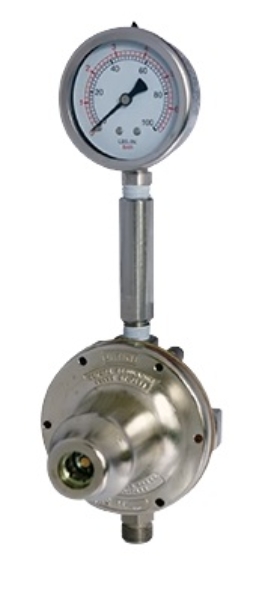

SS Fluid Regulator

BB 84-320

SS Fluid Regulator

$871.00

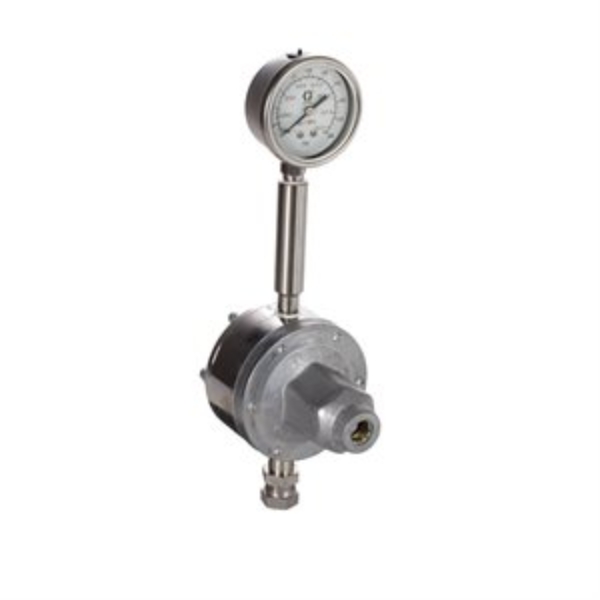

REGULATOR, PRESS, FLUID

GG 217314

REGULATOR, PRESS, FLUID

Graco 217314 Low Pressure Fluid Regulator, 250 Max psi, 20-160 psi Range, 3.0 GP (m), SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

Stainless steel wetted materials are compatible with catalyst and waterborne materials
Removable adjustment key eliminates operator interference
Manual quick flush mode ensures easy cleaning without impacting production settings
PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

Actuation Type: Spring

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Thread Gender: Female
Gauge Port Type: NPT
Includes: Gauge
Inlet Size (cm): 0.9525
Inlet Size (in): 3/8
Inlet Size (mm): 9.525
Inlet Thread Gender: Female
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.36
Maximum Regulated Pressure (bar): 11
Maximum Regulated Pressure (kPa): 1100
Maximum Regulated Pressure (MPa): 1.1
Maximum Regulated Pressure (psi): 160
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 18
Maximum Working Pressure (kPa): 1800
Maximum Working Pressure (MPa): 1.8
Maximum Working Pressure (psi): 250
Minimum Regulated Pressure (bar): 1.4
Minimum Regulated Pressure (kPa): 140
Minimum Regulated Pressure (MPa): 0.14
Minimum Regulated Pressure (psi): 20
Outlet Size (cm): 0.9525
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Gender: Female

$1,185.00

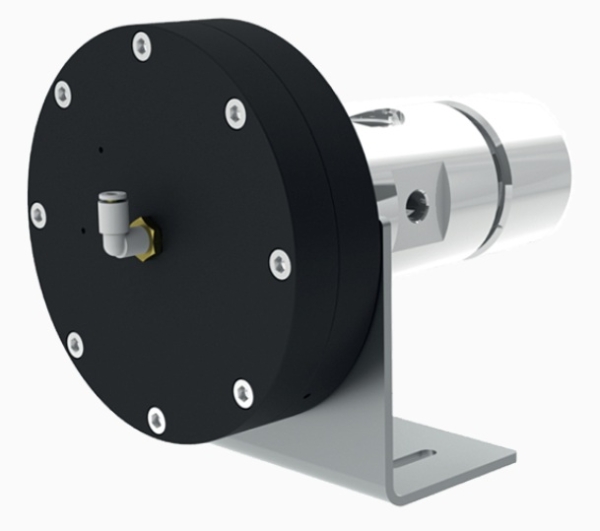

High Pressure Regulator, Air Pilot

BB 107906

High Pressure Regulator, Air Pilot

$2,761.00

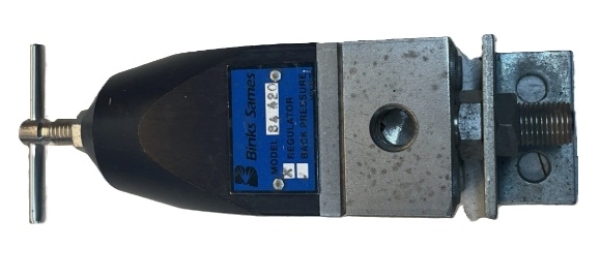

Hp Fluid Regulator

BB 84-420

Hp Fluid Regulator

$1,350.00

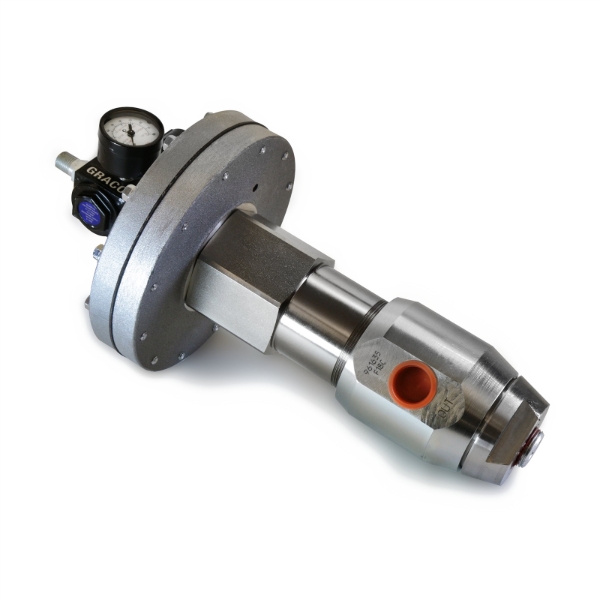

REGULATOR, MASTIC, 5000 PSI

GG 961635

REGULATOR, MASTIC, 5000 PSI

Graco 961635 Air Operated Mastic Fluid Pressure Regulator

The mastic regulator is ideal for low to high viscosity sealants or adhesives

Actuation Type: Air

Flow Control Type: Regulation
Gauge Port Size (cm): 1.905
Gauge Port Size (in): 3/4
Gauge Port Size (mm): 19.05
Gauge Port Type: NPT
Inlet Size (cm): 1.905
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPT
Maximum Regulated Pressure (bar): 310
Maximum Regulated Pressure (kPa): 31000
Maximum Regulated Pressure (MPa): 31.0
Maximum Regulated Pressure (psi): 4500
Maximum Viscosity (cP): 80000
Maximum Working Pressure (bar): 344
Maximum Working Pressure (kPa): 34400
Maximum Working Pressure (MPa): 34.4
Maximum Working Pressure (psi): 5000
Minimum Regulated Pressure (bar): 17
Minimum Regulated Pressure (kPa): 1700
Minimum Regulated Pressure (MPa): 1.7
Minimum Regulated Pressure (psi): 250
Outlet Size (cm): 1.905
Outlet Size (in): 3/4
Outlet Size (mm): 19.05
Outlet Thread Type: NPT

$2,890.00

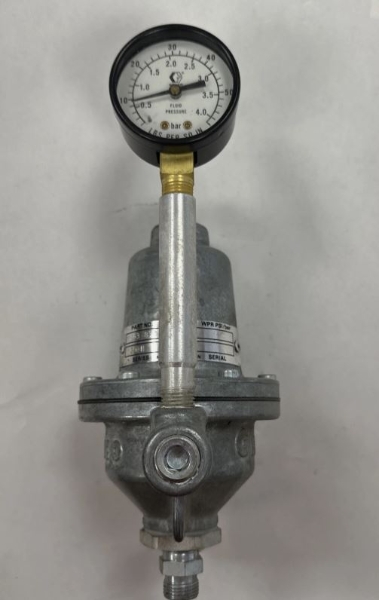

D/S Regulator, 3/8In, Alu, 0-60 psi

GG 203831

REGULATOR,FLUID

Graco 203831 Low Pressure Fluid Regulator, 0-60 psi (0-4 bar) Regulated Pressure, 3.0 GPM, Aluminum, Spring Type, 3/8(f) x 3/8(m), 1/4(f) Port

For accurate, positive control of fluid pressure to one spray gun, dispensing valve, or atomizing head. Gives positive control of fluid pressures in most normal direct supply and circulating spray systems

$831.00

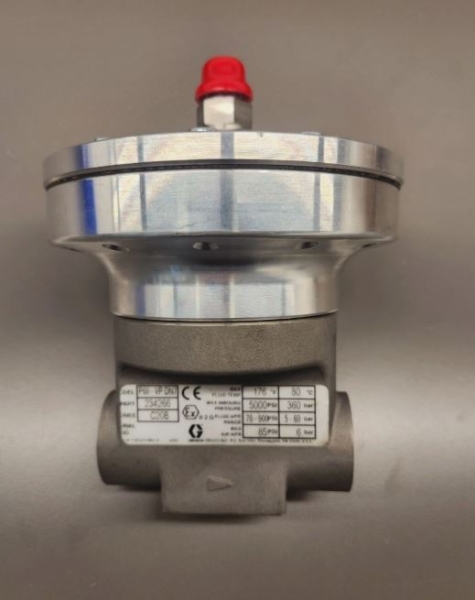

REGULATOR, PRESSURE, NPT, P60-VP DN7

GG 234266

REGULATOR, PRESSURE, NPT, P60-VP DN7

Graco 234266 High Pressure Fluid Regulator, 5000 Max psi, 70-900 psi Range, 11.3 GPM, SST, Air Type, 3/4 (f) x 3/4 (f), 1/4 BSPP Port

Our pneumatically operated fluid pressure regulators are designed primarily for use with highly viscous coatings

Actuation Type: Air

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Type: BSPP
Includes: Regulator Only
Inlet Size (cm): 1.905
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 11.3
Maximum Flow Rate (L/min): 42.8
Maximum Regulated Pressure (bar): 60
Maximum Regulated Pressure (kPa): 6000
Maximum Regulated Pressure (MPa): 6
Maximum Regulated Pressure (psi): 900
Maximum Working Pressure (bar): 360
Maximum Working Pressure (kPa): 36000
Maximum Working Pressure (MPa): 36
Maximum Working Pressure (psi): 5000
Minimum Regulated Pressure (bar): 5
Minimum Regulated Pressure (kPa): 500
Minimum Regulated Pressure (MPa): 0.5
Minimum Regulated Pressure (psi): 70
Outlet Size (cm): 1.905
Outlet Size (in): 3/4
Outlet Size (mm): 19.05

$2,270.00

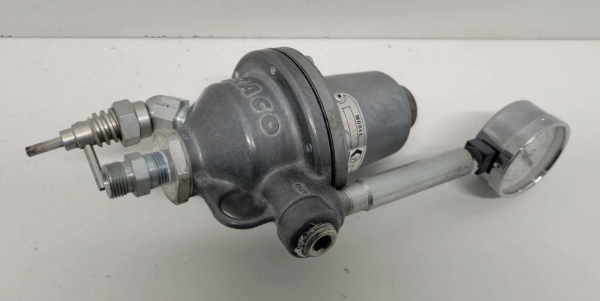

D/S Regulator, 3/8In, Alu, 0-60 psi

GG 205425

D/S Regulator, 3/8In, Alu, 0-60 psi

$979.00

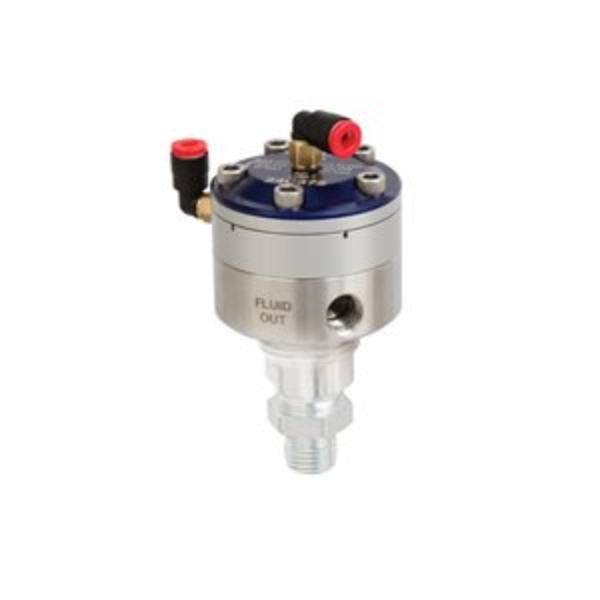

REGULATOR, FLUID, 1:1 RATIO

GG 24C375

REGULATOR, FLUID, 1:1 RATIO

1:1 Precision Flow Fluid Pressure Regulator, 90 psi (6.2 bar) max pressure, silver ratio spacer Fluid regulators keep your system functioning more productively. Available with mechanical control or pneumatic control Suitable for fluids with low and high viscosities Models available with wetted parts made of stainless steel Application-oriented pressure ranges

$2,190.00

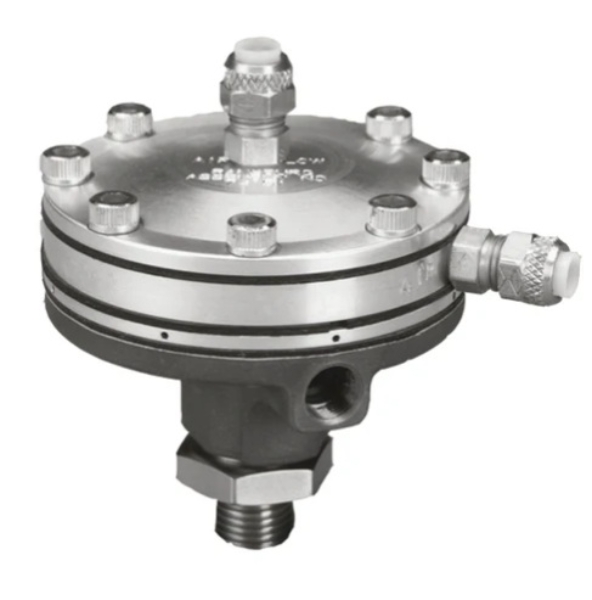

Regulator, Dr1, 2-Stage, 1:2

RR 74151-01

Regulator, Dr1, 2-Stage, 1:2

$1,966.00

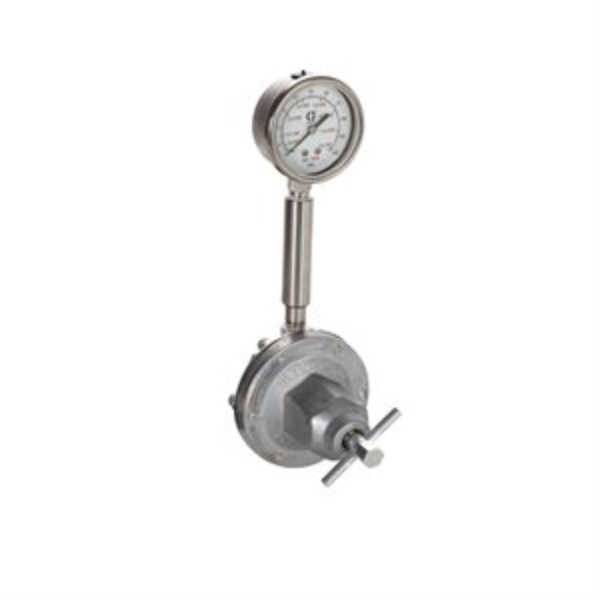

REGULATOR, FLUID PRESS

GG 214895

REGULATOR, FLUID PRESS

$774.00

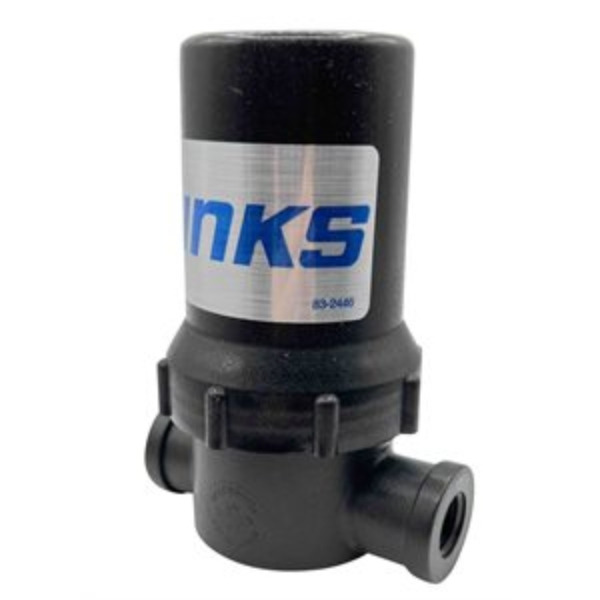

Pulse/Chamber Filter Assy

BB 135-80

Pulse/Chamber Filter Assy

$229.00

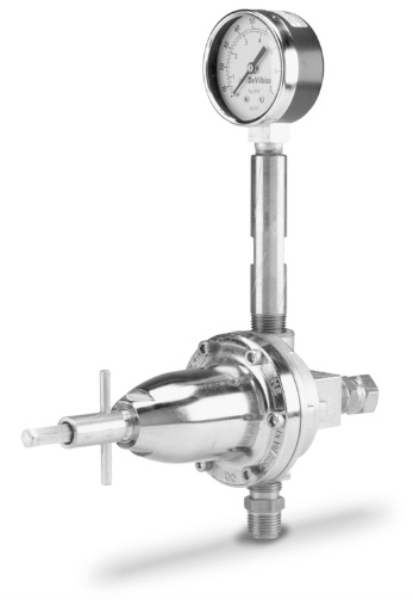

Fluid Regulator, Low Pressure (0-15 Lbs), Ss

BB 84-410

Fluid Regulator, Low Pressure (0-15 Lbs), Ss

$944.00

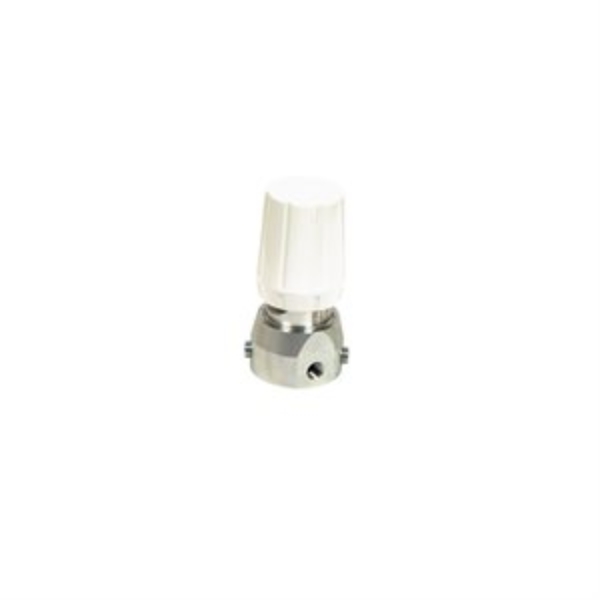

VALVE, BACK PRESSURE

GG 206819

VALVE, BACK PRESSURE

Back Pressure Fluid Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f) Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand Tungsten and carbide materials ensure low wear and long life Plated carbon steel housing is compatible with solvent-bornematerials Laser-marked indication lines for easy pressure adjustmentand process control Ergonomic adjustment knob

$1,530.00

REGULATOR, PRESS, FLUID

GG 236450

REGULATOR, PRESS, FLUID

Graco 236450 Low Pressure Lightweight Fluid Regulator, Gauge, 20-100 psi (1-7 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

Lightweight composite material is compatible with waterborne materials
PTFE, stainless steel seat, and carbide ball provide wear resistance
Pressure adjustment key with locking mechanism protects production settings

Actuation Type: Spring

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Type: NPT
Includes: Gauge
Inlet Size (cm): 0.635
Inlet Size (in): 1/4
Inlet Size (mm): 6.35
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 0.5
Maximum Flow Rate (L/min): 1.89
Maximum Regulated Pressure (bar): 7.0
Maximum Regulated Pressure (kPa): 700
Maximum Regulated Pressure (MPa): 0.7
Maximum Regulated Pressure (psi): 100
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Minimum Regulated Pressure (bar): 1.4
Minimum Regulated Pressure (kPa): 140
Minimum Regulated Pressure (MPa): 0.14
Minimum Regulated Pressure (psi): 20
Outlet Size (cm): 0.635
Outlet Size (in): 1/4
Outlet Size (mm): 6.35

$579.00

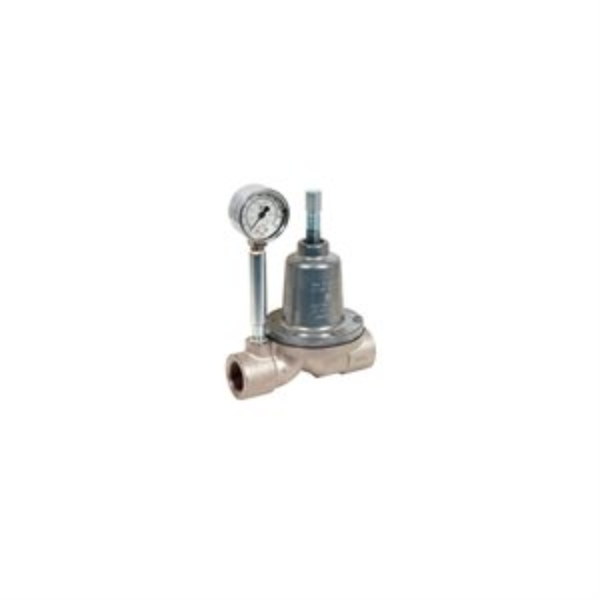

REGULATOR, PRESS, BACK

GG 206019

REGULATOR, PRESS, BACK

Low Pressure Fluid Back Pressure Regulator, 180 psi (12 bar) max pressure, AL wetted parts, manual, 1(f) inlet, 1(f) outlet with gauge Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand Electroless nickel plated aluminum housing with smooth flow orifices Tungsten and carbide materials to resist wear PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness Compatible with solvent-borne materials

$646.00

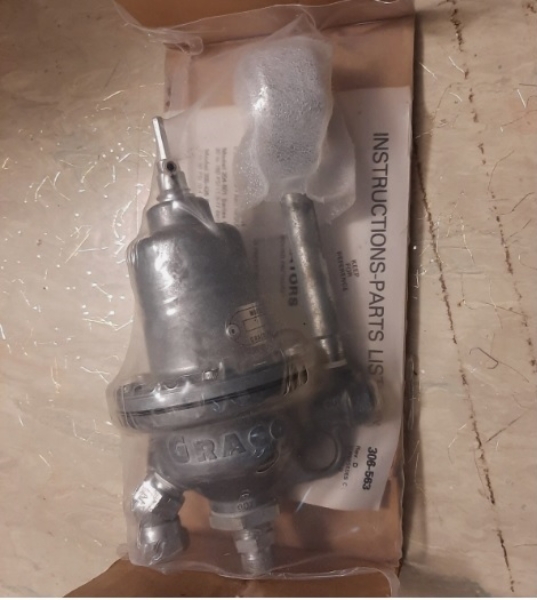

D/S Regulator, 3/8In, Alu, 20-160 psi

GG 204501

D/S Regulator, 3/8In, Alu, 20-160 psi

$979.00

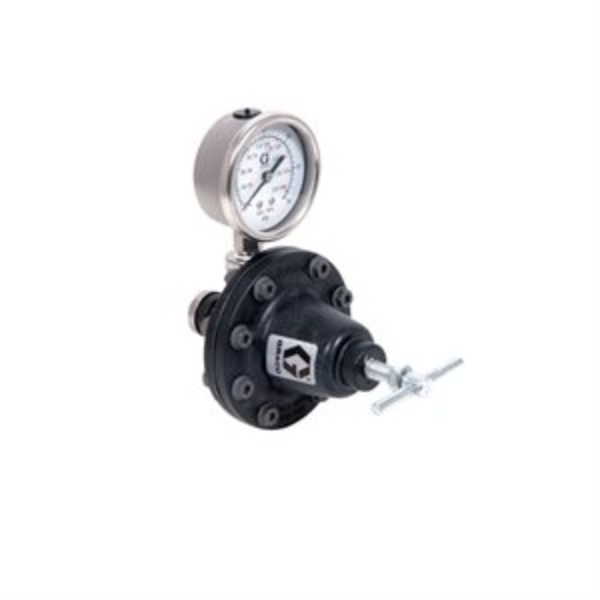

REGULATOR, PRESS, FLUID

GG 236449

REGULATOR, PRESS, FLUID

Graco 236449 Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

Lightweight composite material is compatible with waterborne materials
PTFE, stainless steel seat, and carbide ball provide wear resistance
Pressure adjustment key with locking mechanism protects production settings

Actuation Type: Spring

Gauge Port Size (cm): 0.635
Gauge Port Size (in): 1/4
Gauge Port Size (mm): 6.35
Gauge Port Type: NPT
Includes: Gauge
Inlet Size (cm): 0.635
Inlet Size (in): 1/4
Inlet Size (mm): 6.35
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 0.5
Maximum Flow Rate (L/min): 1.89
Maximum Regulated Pressure (bar): 2.1
Maximum Regulated Pressure (kPa): 210
Maximum Regulated Pressure (MPa): 0.2
Maximum Regulated Pressure (psi): 30
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Minimum Regulated Pressure (bar): 0.2
Minimum Regulated Pressure (kPa): 20
Minimum Regulated Pressure (MPa): 0.02
Minimum Regulated Pressure (psi): 3
Outlet Size (cm): 0.635
Outlet Size (in): 1/4
Outlet Size (mm): 6.35

$684.00

Fluid Regulator, Hi-Capacity (0-100 Lbs)

BB 84-411

Fluid Regulator, Hi-Capacity (0-100 Lbs)

$870.00

Refine
