D/S Regulator,1/4in,Acetal,20-100 psi

GG 236450

REGULATOR, PRESS, FLUID

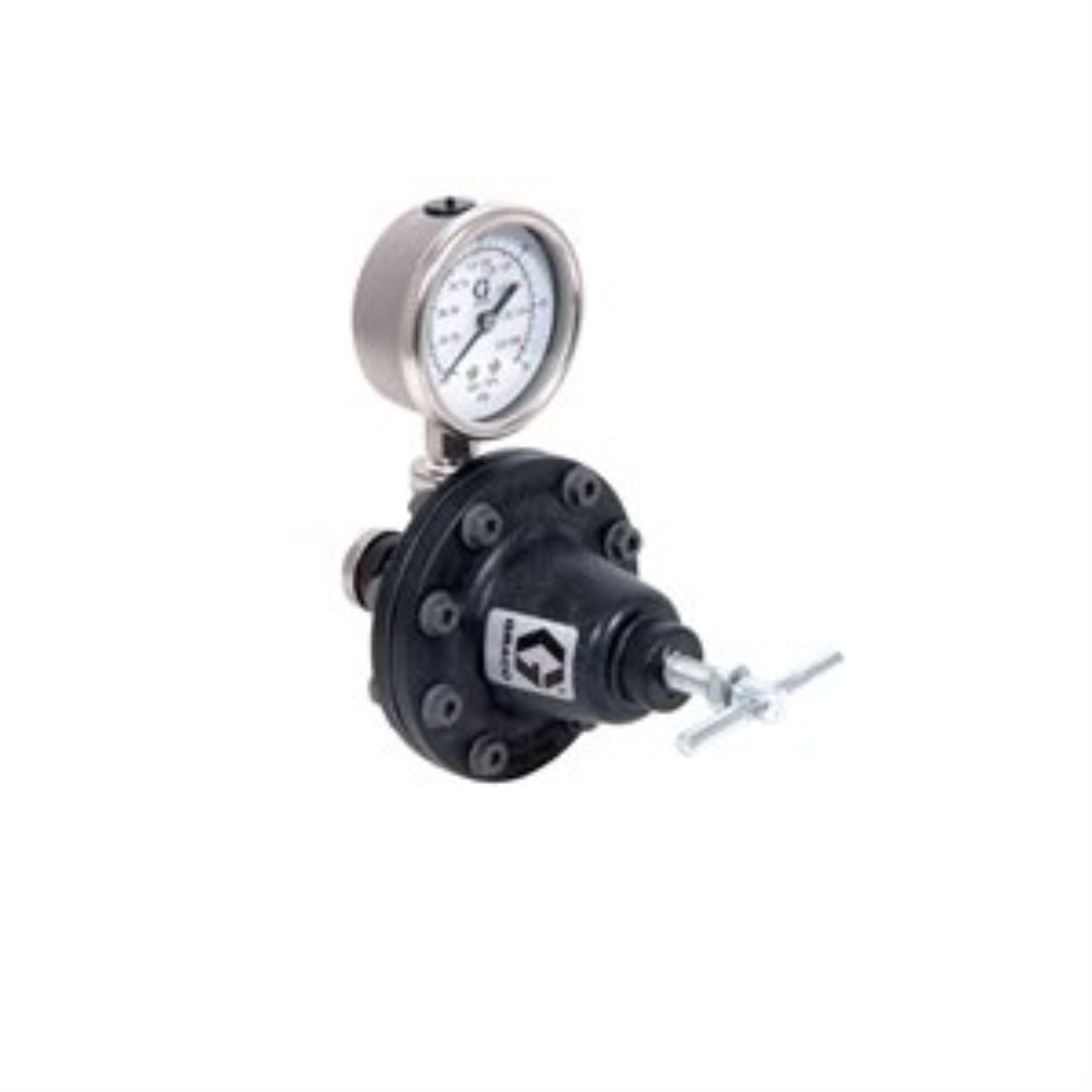

Graco 236450 Low Pressure Lightweight Fluid Regulator, Gauge, 20-100 psi (1-7 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Lightweight composite material is compatible with waterborne materials
• PTFE, stainless steel seat, and carbide ball provide wear resistance
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Regulated Pressure (bar): 7.0
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Regulated Pressure (bar): 1.4
• Minimum Regulated Pressure (kPa): 140
• Minimum Regulated Pressure (MPa): 0.14
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
