Scalers and Hammers

GW 3591D

IR JQ2-724

IR JQ2-721

IR JQ4-724

U UT9922

IR 182LNA1

Air Needle Scaler, 4000 BPM, 1-1/16" Stroke

Description: With 4000 blows-per-minute and 1" stroke, the 182 is our most powerful and chisel durable scaler.

Features And Benefits:

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, and they're durable enough to withstand repeated drops and harsh conditions with ease.
• Comfort: Compact, well balanced and low vibration maximize operators comfort
• Power: The powerful motor featured in the 182 Series makes work easier and more efficient.
• Tested and approved in accordance with MIL-S-23492A (Ships).
• Includes (19) steel precision heat-treated needles for maximum performance. (1/8" diameter, 5" length)

Product Application and Uses:

Remove Paint, Rust, Dirt, Weld Slags

• Includes: 19 steel precision heat-treated needles (1/8" diameter, 5" length)
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 13
• Air Consumption @ Load (l/min): 368
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 4000
• Bore Diameter (in): 0.94

• Color: Black
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Max Pressure (bar): 6.2
• Min Hose Size (in): 5/16
• Needle Qty: 19 Needles

• Non Sparking: No
• Power Source: Air Powered
• Product Length (in): 15

• Product Width (in): 6.6
• Product Height (in): 2.7
• Product Weight (lb): 5.8

• Shank SIze (in): .5
• Shank Type: Ingersoll Rand Shank

• Sound Pressure/Power Db(A): 107.2 / 118.2
• Stroke Length (in): 1.06

• Vibration Level (m/s2): 10.1
• Warranty: 1-year

• Accessories: NS11-122-19
• Accessories: NS11-22-19

• Lubrication: 10G
• Lubrication: 10P
• Parts: NS11-A24
• Parts: NS11A

SX PT850P12R

CL CH-30-RD

IR 2145-THK2

Hammer Mechanism Replacement Part for Ingersoll Rand 2145 and 2155 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 2145 and 2155 Series Impact Wrench

• Includes: (2) Hammer, Hammer Frame, (2) Hammer pins

• For Use With: 2145QIMAX-3
• For Use With: 2145QIMAX-3-AP
• For Use With: 2145QIMAX-6
• For Use With: 2145QIMAX-6-AP
• For Use With: 2145QIMAX-AP
• For Use With: 2145QIMAX-SP
• For Use With: 2155QIMAX

IR 117

Air Hammer, 2000 BPM, 3-1/2" Stroke

Description: The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.

Features And Benefits:

• Reliable: Ingersoll Rand promises tools that last, and this hammer is no different. You can count on it to perform the same way every time. Comes with a 1-year warranty.
• 2,000 Blows Per Minute: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
• Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.

Product Application and Uses:

Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

• Includes: Tool, Retainer, Manuals
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 15
• Air Consumption @ Load (l/min): 396
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Blows per Min: 2000
• Bore Diameter (in): 0.69

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: General Duty

• Handle Material: Aluminum
• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 9.9

• Product Width (in): 7.4
• Product Height (in): 2.68
• Product Weight (lb): 4.1
• Retainer Type: Spring

• Shank SIze (in): .401
• Shank Type: Round

• Sound Pressure/Power Db(A): 103.5 / 114.5
• Standards/Certifications: Ce
• Stroke Length (in): 3.5

• Vibration Level (m/s2): 9.2
• Warranty: 1-year

• Accessories: 401B07
• Accessories: 401B09
• Accessories: 401FC347
• Accessories: 401MP7
• Accessories: 9500
• Accessories: 9510

• Complete Tool Kits: 117K

• Lubrication: 10G
• Lubrication: 10P
• Parts: 115-183

MP MP2466

IR HH1-1194

Grooved Lock Spring for Ingersoll Rand K, A, D Series Chipping Hammers

Product Application and Uses:

For use with all Ingersoll Rand grooved retainer K, A and D Series Chipping Hammers.

• Housing Material: Steel

• Shank SIze (in): 0.5
• Shank Type: Ingersoll Rand Shank

• For Use With: 1A1SA
• For Use With: 1A2SA
• For Use With: 2A1SA
• For Use With: 2A2SA
• For Use With: 2DA1SA
• For Use With: 2DA2SA
• For Use With: 3A1SA
• For Use With: 3A2SA
• For Use With: 3DA1SA
• For Use With: 3DA2SA
• For Use With: 4A1SA
• For Use With: 4A2SA
• For Use With: 4DA1SA
• For Use With: 4DA2SA

APT 5214

IR 123MAX

Vibration Reduced Air Hammer, 3530 BPM, 2-5/8" Stroke, Round Shank

Description: Great for front-end jobs, general bolt cutting, pin driving, and body shearing work, this short barreled hammer is ready to deliver the punch you need.

Features And Benefits:

• Increased Power: The 123MAX hammer has a 15% impact force increase over standard air hammers.
• Reduced Vibration: The 123MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
• Comfort Grip: Shock reduction and anti-slip grip.
• Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
• Durable: This hammer can withstand anything, including repeated drops and harsh conditions. No matter where you take it, it will perform like new.
• Swivel Air Inlet: Prevents hose twisting during use.
• Optimized for the vehicle repair industry, heavy trucks, and MRO.

Product Application and Uses:

Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

• Includes: Tool, Quick-change Retainer, Manuals
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 24.1
• Air Consumption @ Load (l/min): 682.4
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 3530
• Bore Diameter (in): 3/4

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Industrial Duty

• Handle Material: Composite

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 7.2

• Product Width (in): 2
• Product Height (in): 7.2
• Product Weight (lb): 3.9
• Retainer Type: Quick Change

• Shank SIze (in): .401
• Shank Type: Round

• Sound Pressure/Power Db(A): 95 / 106
• Special Features: Vibration reduced
• Standards/Certifications: Ce, Eac
• Stroke Length (in): 2.63

• Vibration Level (m/s2): 5.9
• Warranty: 1-year

• Accessories: 401B07
• Accessories: 401B09
• Accessories: 401FC347
• Accessories: 401MP7
• Accessories: 9500
• Accessories: 9510

• Complete Tool Kits: 123MAXK

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 122MAX-4A
• Parts: 9510

IR 2940-724

SX SSD4P18P

IR 182L

Air Chisel Scaler, 4000 BPM, 1-1/16" Stroke

Description: With 4000 blows-per-minute and 1" stroke, the 182 is our most powerful and chisel durable scaler. The 'swan' neck grip option add an extra level of comfort for both vertical and horizontal operation

Features And Benefits:

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, and they're durable enough to withstand repeated drops and harsh conditions with ease.
• Comfort: Compact, well balanced and low vibration maximize operators comfort
• Power: The powerful motor featured in the 182 Series makes work easier and more efficient.

Product Application and Uses:

Remove Paint, Rust, Dirt, Weld Slags

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 13
• Air Consumption @ Load (l/min): 368
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 4000
• Bore Diameter (in): 0.94

• Color: Silver
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Max Pressure (bar): 6.2
• Min Hose Size (in): 5/16

• Non Sparking: No
• Power Source: Air Powered
• Product Length (in): 9

• Product Width (in): 6.93
• Product Height (in): 2.76
• Product Weight (lb): 4.1

• Shank SIze (in): .5
• Shank Type: Ingersoll Rand Shank

• Sound Pressure/Power Db(A): 107.2 / 118.2
• Stroke Length (in): 1.06

• Vibration Level (m/s2): 12.7
• Warranty: 1-year

• Accessories: WF-14-12
• Accessories: WF-14A-007
• Accessories: WF-14B-007
• Accessories: WF-14B-012
• Accessories: WF-14C-007
• Accessories: WF-14C-012
• Accessories: WF-14C-018
• Accessories: WF-14D-007
• Accessories: WF-14D-012
• Accessories: WF-14D-018
• Accessories: WF-14F-12
• Accessories: WF-14F-18
• Accessories: WF-14F-7

• Complete Tool Kits: 182K1

• Lubrication: 10G
• Lubrication: 10P
• Parts: NS11-27
• Parts: NS11-A24

IR 2141-724

Hammer for Ingersoll Rand 2141 Series Impact Wrench

IR JQ4-721

IR 772

MN S-160

SX SPSDR-2B

IR 116

Air Hammer, 3500 BPM, 2-5/8" Stroke

Description: The 116 standard air hammer is ideal for fast cutting action, and excels in medium exhaust systems, panel cutting, and general repair work.

Features And Benefits:

• Reliable: This hammer's alloyed steel barrel and heat-treated piston prolong your tool's life and make sure it delivers the same quality output every time.
• Lightweight: Built for user comfort, this tool is lightweight and easy to use, so you never have to overexert yourself when working a job.
• Power: With a built-in power regulator you have full control over the speed and power output of your hammer, up to 3,500 blows per minute.

Product Application and Uses:

Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

• Includes: Tool, Retainer, Manuals
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 15
• Air Consumption @ Load (l/min): 425
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Blows per Min: 3500
• Bore Diameter (in): 0.69

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: General Duty

• Handle Material: Aluminum
• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 7.8

• Product Width (in): 7.01
• Product Height (in): 2.28
• Product Weight (lb): 3.4
• Retainer Type: Spring

• Shank SIze (in): .401
• Shank Type: Round

• Sound Pressure/Power Db(A): 101.4 / 112.4
• Standards/Certifications: Ce
• Stroke Length (in): 2.63

• Vibration Level (m/s2): 14.8
• Warranty: 1-year

• Accessories: 401B07
• Accessories: 401B09
• Accessories: 401FC347
• Accessories: 401MP7
• Accessories: 9500
• Accessories: 9510

• Complete Tool Kits: 116K

• Lubrication: 10G
• Lubrication: 10P
• Parts: 115-183

IR 260-724

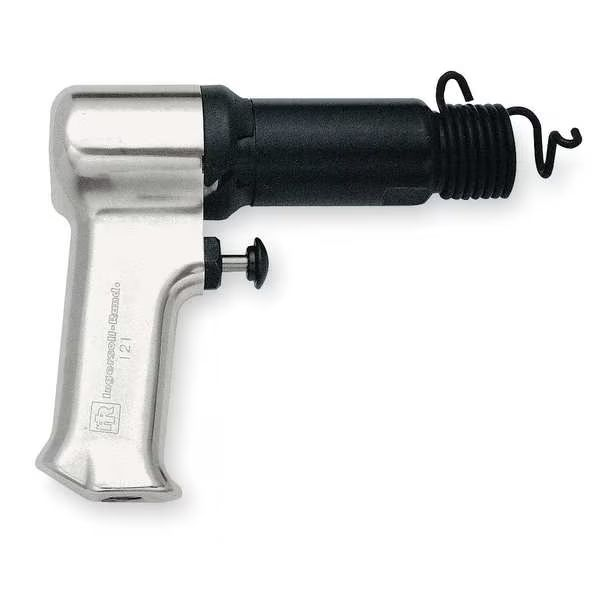

IR 121/Q

Super Duty Air Hammer, 3000 BPM, 2-9/32" Stroke

Description: Make fast work of body panel crimping and cutting, bushing driving, shearing and general front end work with this air hammer, a super duty tool that produces up to 3000 blows per minute.

Features And Benefits:

• Long Lasting: The 121 super duty air hammer was built with an alloyed steel barrel and heat-treated piston to make sure it lasts as long as you need it to.
• Super Duty: This hammer can produce up to 3,000 blows per minute so you can speed through your tasks with ease.
• Easy to maintain: Includes " easy out" throttle valve assembly.
• Built-in power regulator and trigger control

Product Application and Uses:

Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

• Includes: Tool, Retainer, Manuals
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 15
• Air Consumption @ Load (l/min): 425
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Blows per Min: 3000
• Bore Diameter (in): 3/4

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Super Duty

• Handle Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 7.63

• Product Width (in): 8
• Product Height (in): 3.1
• Product Weight (lb): 3.5
• Retainer Type: Spring

• Shank SIze (in): .401
• Shank Type: Round

• Sound Pressure/Power Db(A): 97.1 / 108.1
• Standards/Certifications: Ce, Eac
• Stroke Length (in): 2.28

• Vibration Level (m/s2): 19.9
• Warranty: 1-year

• Accessories: 401B07
• Accessories: 401B09
• Accessories: 401FC347
• Accessories: 401MP7
• Accessories: 9512

• Complete Tool Kits: 121-K6

• Lubrication: 10G
• Lubrication: 10P
• Parts: 9512
