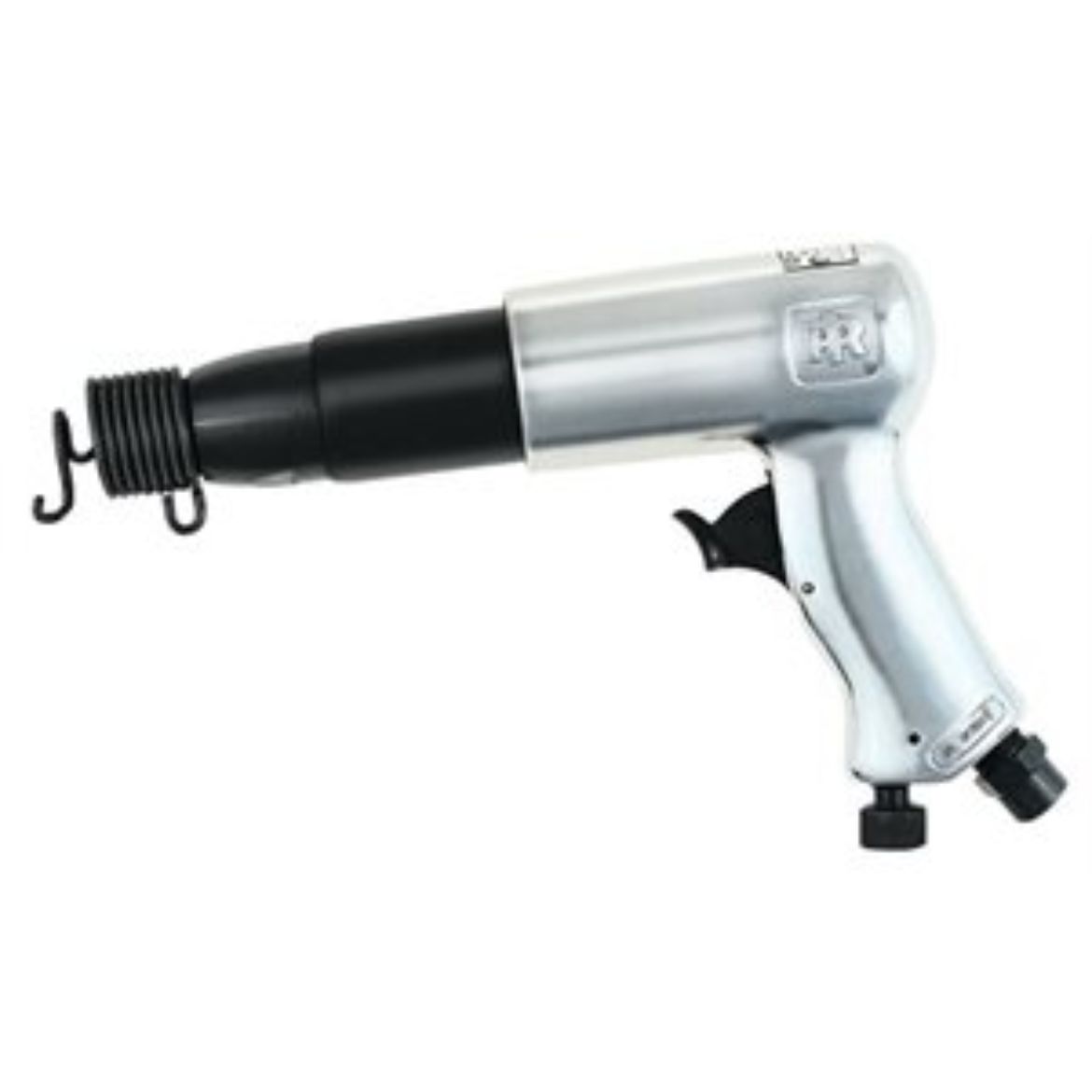

    Pistol Grip Air Hammer, Long Stroke

    IR 117

    Air Hammer, 2000 BPM, 3-1/2" Stroke

    Description: The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.

    Features And Benefits:

    • Reliable: Ingersoll Rand promises tools that last, and this hammer is no different. You can count on it to perform the same way every time. Comes with a 1-year warranty.
    • 2,000 Blows Per Minute: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
    • Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.

    Product Application and Uses:

    Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

    • Includes: Tool, Retainer, Manuals
    • Actuation/Throttle Type/Switch Type: Trigger
    • Air Consumption @ Load (cfm): 15
    • Air Consumption @ Load (l/min): 396
    • Air Inlet: 1/4" NPT
    • Air Pressure (psi): 90
    • Average Air Consumption (cfm): 3
    • Average Air Consumption (l/min): 85
    • Blows per Min: 2000
    • Bore Diameter (in): 0.69
    • Color: Silver
    • Configuration/Handle Type: Pistol Grip
    • Duty Rating: General Duty
    • Handle Material: Aluminum
    • Housing Material: Aluminum
    • Max Pressure (bar): 6.2
    • Min Hose Size (in): 3/8
    • Power Source: Air Powered
    • Product Length (in): 9.9
    • Product Width (in): 7.4
    • Product Height (in): 2.68
    • Product Weight (lb): 4.1
    • Retainer Type: Spring
    • Shank SIze (in): .401
    • Shank Type: Round
    • Sound Pressure/Power Db(A): 103.5 / 114.5
    • Standards/Certifications: Ce
    • Stroke Length (in): 3.5
    • Vibration Level (m/s2): 9.2
    • Warranty: 1-year
    • Accessories: 401B07
    • Accessories: 401B09
    • Accessories: 401FC347
    • Accessories: 401MP7
    • Accessories: 9500
    • Accessories: 9510
    • Complete Tool Kits: 117K
    • Lubrication: 10G
    • Lubrication: 10P
    • Parts: 115-183
    SKU: IR 117
    Availability:
    Price: $92.40
