INGERSOLL-RAND IR TOOL S12880

IR 259-A329

IR 260-726

IR 259-3

IR 259

3/4" Air Impact Wrench, 1050 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand's strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.

Features And Benefits:

• LIGHT WEIGHT: With the 259 Series' aluminum hammer case and powerful vane motor, this impact wrench offers a great power-to-weight ratio.
• RELIABILITY: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• ERGONOMIC: The aluminum hammer case and pistol grip make the 259 Series easy to hold, while the power regulator offers deeper control during use.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life
• Handle-vented exhaust directs air away from the operator
• Silenced exhaust reduces tool noise while using this pneumatic impact wrench
• Feather-touch trigger provides maximum speed control
• Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench
• Optimized for the vehicle repair industry and heavy trucks
• Non-biased motor delivers 1,050 ft-lb of maximum torque in both forward and reverse
• 1-year warranty

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 30
• Air Consumption @ Load (l/min): 850
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 8
• Average Air Consumption (l/min): 227

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.5 / 107.5

• Hammer Case: Aluminum
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Rocking Dog
• Impacting Sound Pressure/Power Db(A): 91.6 / 102.6

• Max Bolt Diameter (in): 7/8
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1050
• Max Torque (in-lb): 12603
• Max Torque (nm): 1424
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 2
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.3
• Product Length (in): 8.6

• Product Width (in): 3.2
• Product Height (in): 8.5
• Product Weight (lb): 8.8
• Recommended Forward Torque Range (ft-lb): 201-800
• Recommended Forward Torque Range (in-lb): 2407-9603
• Recommended Forward Torque Range (nm): 272-1085
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.6
• Side to Center Distance (mm): 41

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.4
• Warranty: 1-year

• Accessories: 259-BOOT
• Accessories: SK6H8N
• Accessories:

IR 259-800

IR 24SR-106

IR 259-11

Front End Plate for Ingersoll Rand 259 Series Impact Wrench

IR 259-223

Reverse Retainer Gasket Replacement Part for Ingersoll Rand 259 Series Impact Wrench

IR 24SR-207

Lock Clip for Ingersoll Rand W, A, D, MDT3-EU Series Chipping Hammer

IR 261

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• Power to Weight: Lightweight but still delivers high torque output capabilities, making it the best choice for spring work, pinion nut and track pad removal, and major engine teardowns.
• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 38
• Air Consumption @ Load (l/min): 1076
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.4 / 109.4

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1100
• Max Torque (in-lb): 13196
• Max Torque (nm): 1491
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96.7
• Product Length (in): 8.8

• Product Width (in): 4.7
• Product Height (in): 10.3
• Product Weight (lb): 12.4
• Recommended Forward Torque Range (ft-lb): 200-600
• Recommended Forward Torque Range (in-lb): 2399-7196
• Recommended Forward Torque Range (nm): 271-813
• Recommended Reverse Torque (ft-lb): 200-600
• Recommended Reverse Torque (nm): 271-813
• Retainer Type: Friction Ring

• Side to Center Distance (in): 2.4
• Side to Center Distance (mm): 61

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.4
• Warranty: 1-year

• Accessories: 261-BOOT

• Lubrication: 105-LBK1
<

IR 259-12

IR 260-724

IR 261-3

3/4" Air Impact Wrench, 3" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 3-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 38
• Air Consumption @ Load (l/min): 1076
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: 3" Extended
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.4 / 109.4

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1100
• Max Torque (in-lb): 13196
• Max Torque (nm): 1491
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 11.8

• Product Width (in): 3.76
• Product Height (in): 10.3
• Product Weight (lb): 13
• Recommended Forward Torque Range (ft-lb): 200-600
• Recommended Forward Torque Range (in-lb): 2399-7196
• Recommended Forward Torque Range (nm): 271-813
• Recommended Reverse Torque (ft-lb): 200-600
• Recommended Reverse Torque (nm): 271-813
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.88
• Side to Center Distance (mm): 48

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.4
• Warranty: 1-year

• Accessories: 261-BOOT

• Lubrication:

IR 26686

IR 244-TK2

Tune-Up kit for 244A Series Impact Wrench

• Includes: throttle valve face and spring, reverse valve bushing seal (2), reverse valve dentent ball and spring, front and rear rotor bearings, rear rotor bearing retainer, vane pack (6), hammer and end plate gaskets, socket retainer, retainer o-ring

• For Use With: 244A
• For Use With: 244A-2

IR 261-283

Reverse Valve Seal for Ingersoll Rand 261, 271 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 261 and 271 Series Impact Wrench

• Includes: (2) Seals

• For Use With: 261
• For Use With: 261-3
• For Use With: 261-6
• For Use With: 271

IR 2705P1

1/2" Air Impact Wrench, Heavy Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: The 2700 Series impact wrench is built strong with a twin hammer impact mechanism, smooth trigger actuation and an easy-to-hold pistol grip. This wrench's vane motor delivers high torque output, while the power regulator allows for increased control.

Features And Benefits:

• Durability: Steel hammer case and metal housing increases the ability to withstand drops or harsh conditions.
• Power and Performance: Finely tuned twin hammer impact mechanism and power regulator

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 4.2
• Air Consumption @ Load (l/min): 119
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.5
• Product Length (in): 7.3

• Product Width (in): 2.81
• Product Height (in): 7.7
• Product Weight (lb): 5.63
• Recommended Forward Torque Range (ft-lb): 40-200
• Recommended Forward Torque Range (in-lb): 478-2399
• Recommended Forward Torque Range (nm): 54-271
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N
• Accessories: SK4M14LN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2705-TK3
• Parts: 402-302

• Parts: 402-303
• Parts: 404-50A
• Parts: 405-159
• Parts: 705-93

IR 261-TK2

Tune-up Kit for Ingersoll Rand 261 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 261 3/4" air impact wrench.

• Includes: Throttle Valve, Throttle Valve Seat, Throttle Valve Spring, Housing Plate Gasket, (2) Reverse Valve Seals, Rotor Bearing Retainer, Rear Rotor Bearing, Front Rotor BearingRear End Plate Gasket, (6-pc) Vane Packet, Hammer Case Gasket, Socket Retainer, Socket Retainer O-ring.

• For Use With: 261
• For Use With: 261-3
• For Use With: 261-6
• For Use With: 271

IR 273H-22

IR 2850-11

IR 2850-A626-6

Anvil Assembly Replacement Part For Ingersoll Rand 2175MAX Series Air Impact Wrench

Product Application and Uses:

For use with 2175MAX-6 air impact wrench

• Includes: anvil, socket retaining kit, o-ring, socket retaining spring

• For Use With: 2175MAX-6
• For Use With: 2850MAX-6

IR 2850-K303

IR 2850MAX

1" Air Impact Wrench, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 2850MAX 1" D-handle Impact Wrench, our fiercest 1" wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• Solid steel impact mechanism: Deliver 2,100 ft.-lbs. of torque.
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments.
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry's leading 1" wrench.
• 360 degree adjustable handle: The side handle rotates fully around the tool as the job demands.
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 56
• Air Consumption @ Load (l/min): 1587
• Air Inlet: 1/2in NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 397

• Blows per Min: 770

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Top
• Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0

• Hammer Case: Steel
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.7 / 107.7

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2102
• Max Torque (in-lb): 25225
• Max Torque (nm): 2850
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 108.2
• Product Length (in): 13.1

• Product Width (in): 6.5
• Product Height (in): 9
• Product Weight (lb): 19.43
• Recommended Forward Torque Range (ft-lb): 2002
• Recommended Forward Torque Range (in-lb): 24030
• Recommended Forward Torque Range (nm): 2715
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 3.3
• Side to Center Distance (mm): 84

• Special Features: 2-Year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 12.6
• Warranty: 2-year

• Accessories: SK8H9TN
• Accessories: SK8M4LN
• Accessories: TB3

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2850-A626
• Parts: 2850MAX-TK1

IR 2850MAX-6

1" Air Impact Wrench, 6" Ext Anvil, 2100 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 2850MAX 1" D-handle 6 inch extended anvil Impact Wrench, our fiercest 1" wrench, engineered to make quick work of big jobs like semi, bus and tractor tires. This tool has been made lighter, pushed harder and worked longer to make sure it can handle repeated demands without sacrificing power. Every time you need extreme torque, this lightweight boss can get the job done.

Features And Benefits:

• Solid steel impact mechanism: Deliver 2,100 ft- lbs of torque
• Chemical resistant housing & steel core: Stands up to drops and harsh work environments
• Lightweight: Weighs under 20 lbs. and is 25% lighter than the industry's leading 1" wrench.
• 360 degree adjustable handle: The side handle rotates fully around the tool as the job demands
• Swivel hose connection: Keeps cords from getting tangled so you can move freely around the garage
• 6" anvil extension: Increases accessibility in hard to reach places

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 56
• Air Consumption @ Load (l/min): 1587
• Air Inlet: 1/2in NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 14
• Average Air Consumption (l/min): 397

• Blows per Min: 770

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Steel Wear Plate
• Exhaust Location: Top
• Free Speed Sound Pressure/Power Db(A): 105.0 / 116.0

• Hammer Case: Steel
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.7 / 107.7

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2102
• Max Torque (in-lb): 25225
• Max Torque (nm): 2850
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 97.2
• Product Length (in): 19.1

• Product Width (in): 9.5
• Product Height (in): 6.5
• Product Weight (lb): 21.58
• Recommended Forward Torque Range (ft-lb): 2002
• Recommended Forward Torque Range (in-lb): 24030
• Recommended Forward Torque Range (nm): 2715
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4.8
• Side to Center Distance (mm): 122

• Special Features: 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 10.3
• Warranty: 2-year

• Accessories: SK8H9TN
• Accessories: TB3

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2850-A626-6
• Parts: 2850MAX-TK1

IR 2850-THK1

IR 285B

1" Air Impact Wrench, Heavy Duty, 1475 ft-lb Torque, Friction Ring -Thru-hole Retainer, D-handle Inside Trigger

Description: The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 13.2

• Product Width (in): 9.1
• Product Height (in): 7.2
• Product Weight (lb): 24.6
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring and Thru-hole

• Sound Pressure/Power Db(A): 107/118
• Speed Setting: Variable Speed

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 16.5
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Accessories: 285-BOOT
• Accessories: SK8H9TN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 285B-283
• Parts: 285B-302

• Parts: 285B-333

IR 285B-11

IR 285B-283

Handle Gasket for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-302

Throttle Valve Plunger for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-333

Ball for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-36

Hammer Case Gasket for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-334

Spring Replacement Part for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-50

Throttle Valve for Ingersoll Rand 285B Series Air Impact Wrench

Description: For Use with Ingersoll Rand 285B Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-566

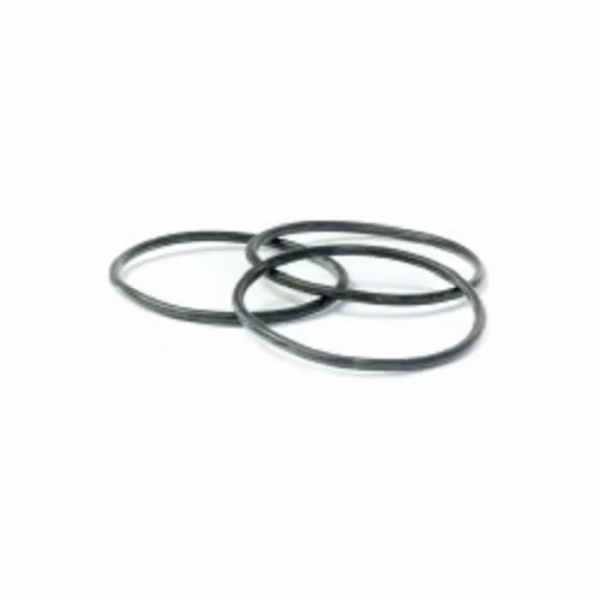

O-Ring for Ingersoll Rand Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-51

Throttle Valve Spring for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-6

1" Air Impact Wrench, 6" Ext Anvil, Heavy Duty, 1770 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-handle Inside Trigger

Description: The 285B combine exceptional power, control and durability. It delivers 1770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability. The 285B 6-inch extended anvil makes changing tires and deeper fastening will be a breeze.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 20.43

• Product Width (in): 7.94
• Product Height (in): 7.18
• Product Weight (lb): 27.8
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring and Thru-hole

• Side to Center Distance (in): 4.1
• Side to Center Distance (mm): 104

• Sound Pressure/Power Db(A): 107/118
• Speed Setting: Variable Speed
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.3
• Vibration Uncertainy K*

IR 285B-641

IR 285B-93A

Trigger for Ingersoll Rand 285B Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-724

IR 285B-A12

IR 285B-A329

Reverse Valve for Ingersoll Rand 285B Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-A48

IR 285B-A48-6

Angled Dead Handle for Ingersoll Rand 285B Air Impact Wrenches

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• Includes: Dead handle with screws

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-A526-6

6" Extended #5 Spline Service Par for Ingersoll Rand 285B-S6 Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B-S6 Air Impact Wrench.

• For Use With: 285B-S6

IR 285B-A565

Inlet Bushing Assembly for Ingersoll Rand 285B Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-A638

IR 285B-A726

Anvil Assembly for Ingersoll Rand 295A & 285B Standard Length Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B and 295A standard anvil air impact wrench.

• For Use With: 285B
• For Use With: 295A

IR 285B-A726-6

6" Extended Anvil Assembly for Ingersoll Rand 285B-6 Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B-6 6" Extended Impact Wrench

• For Use With: 285B-6
• For Use With: 285B-6-AP

IR 285B-A727

IR 285B-A92A

Trigger Handle Assembly for Ingersoll Rand 285B Impact Wrench

Product Application and Uses:

For use with 285B Series Impact Wrench (285B, 285B-6, 285B-S6, 285B-6-AP)

• Includes: Trigger, Slot Cover, Name Plate and (4) Rivets, Stop Pin, Spring Pin

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 285B-S-557

O-Ring for Ingersoll Rand Series Air Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• For Use With: 285B-S6

IR 285B-K727-6

Hammer Case Replacement Kit for Ingersoll Rand 285B Series Air Impact Wrench

IR 285B-S6

No. 5 Spline Air Impact Wrench, 6" Ext Anvil, 1770 ft-lb Torque, D-Handle Inside Trigger

Description: The 285B Series Impact Wrench combines exceptional power, control and durability is great for any garage. They deliver 1,770 ft-lb of maximum torque @ 120 psi, with 5,250 rpm free speed and a high-efficiency, 6-vane motor. The swept-back 285B handle provides excellent maneuverability.

Features And Benefits:

• Power: The rocking dog's combination of high inertia and low BPM means this tool can deliver a powerful blow with little air, giving you all the power you want without having to overextend yourself.
• Professional Use: Designed for the professional with over 1770 ft.-lbs. of torque for the toughest applications.
• Reliability: Built with a steel hammer case and metal housing, this wrench can withstand repeated drops and harsh weather conditions.
• Durable and Resistant: Phenolic 6 vane motor resist harsh environments for less downtime on the job. A protective rubber boot shields the tool from exterior damage.
• Reach: With Multiple retention methods and a 6-inch extended anvil you access hard-to-reach spaces, while maintaining a strong connection to the socket.
• Control: Feather Touch trigger and 3 position power regulator in both forward and reverse. Ergonomic swept-back handle provides excellent maneuverability.
• Speed: The impact wrench has a free speed of 5,250 rpm.
• Optimized: Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO. 1-year warranty.

Product Application and Uses:

Optimized for the vehicle repair industry, heavy trucks, tire lanes, and MRO

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 61
• Air Consumption @ Load (l/min): 1727
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 120
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 830

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): No. 5
• Drive Type: Spline
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom

• Hammer Case: Aluminum
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Rocking Dog

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 5250
• Max Torque (ft-lb): 1770
• Max Torque (in-lb): 21242
• Max Torque (nm): 2400
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 20.1

• Product Width (in): 8.1
• Product Height (in): 7.2
• Product Weight (lb): 27.8
• Recommended Forward Torque Range (ft-lb): 120-1080
• Recommended Forward Torque Range (in-lb): 1443-12957
• Recommended Forward Torque Range (nm): 163-1464
• Retainer Type: Friction Ring

• Sound Pressure/Power Db(A): 107/118
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.3
• Vibration Uncertainy K* (m/s2): 2.1
• Warranty: 1-year

• Accessories: 285-BOOT

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrica

IR 285B-TK1

Tune-up Kit for Ingersoll Rand 285B Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 285B Series Air Impact Wrench.

• Includes: Slot cover, Throttle Valve Plunger, Throttle Valve, Throttle Valve Spring, (2) O-rings, Stop Pin, Spring, Ball, Reverse Valve Seal, Spring Pin, Handle Gasket, Hammer Case Gasket, Front Rotor Bearing, Rear Rotor Bearing, Vane Pack (set of 6), Retainer Ring, Oil Seal

• For Use With: 285B
• For Use With: 285B-6
• For Use With: 285B-6-AP
• For Use With: 285B-S6

IR 28696

IR 2902-A727

IR 2902P-A40

IR 2904P-TK2

IR 2906P1

1/2" Air Impact Wrench, Super Duty, 500 ft-lb Torque, Pin Retainer, Pistol

Description: This heavy duty impact wrench has your back. This tool is safe, reliable and always ready to perform at its peak.

Features And Benefits:

• Durability: The 2906P1 Impact Wrench was built to last. Thanks to its steel hammer case and metal housing, this tool will work after multiple drops and harsh weather conditions.
• Power: Finely tuned twin hammer impact mechanism and a reverse bias motor delivers 500 ft-lbs. of max. torque, and 1200 blows per minute.
• Increased Safety: The square pin drive ensures provides the strongest connection to the socket to increase safety.

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 23
• Average Air Consumption (l/min): 651

• Blows per Min: 1200

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 84.2 / 95.2

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 86.0 / 97.0

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 5000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 500
• Max Torque (in-lb): 6001
• Max Torque (nm): 678
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 83.3
• Product Length (in): 6.88

• Product Width (in): 8.82
• Product Height (in): 3.39
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 40-350
• Recommended Forward Torque Range (in-lb): 480-4204
• Recommended Forward Torque Range (nm): 54.2-475
• Recommended Reverse Torque (ft-lb): 40-350
• Recommended Reverse Torque (nm): 54.2-475
• Retainer Type: Pin Detent

• Side to Center Distance (in): 4.4
• Side to Center Distance (mm): 112

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 7.6
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2906P-TK1

IR 2902-36

IR 2920-3

IR 2920-641

IR 2921-302

Throttle Valve for Ingersoll Rand Air Impact Wrenches

Product Application and Uses:

For use with Ingersoll Rand 2925, 2921, 2920, 271, 261, 259, 2190, 2171, 2161, 1720P Series Impact Wrenches

IR 2910-704

IR 2921HP-11

IR 2934-140

IR 2920P-TK2

Tune-Up Kit For Ingersoll Rand Power Tools

IR 2910-42-6

IR 2910-826

1" Anvil Service Part for Ingersoll Rand Impact Wrench

• For Use With: 2925RBP3TI

IR 2925-A3

IR 2925-TK2

Tune-Up Kit for Ingersoll Rand 2925 Series Impact Wrench

• Includes: (1) Vane pack, (1) Spring (1) Front Rotor Bearing, (1) Rear Rotor Bearing, (2) Gasket, (2) O-Ring, (1) Throttle Valve Seat, (1) Throttle Valve, (1) Inlet Screen, (1) Seal, (1) Muffler

IR 2920B-800

IR 2925-42-7

Vane Pack (set of 7) Service Part for Ingersoll Rand 2925 Series Impact Wrenches

• For Use With: 2925P1TI
• For Use With: 2925RBP3TI

IR 2934-124

IR 2925B2TI

1" Air Impact Wrench, 1600 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-handle Inside Trigger

Features And Benefits:

• Durability: Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• Reliability: The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 60
• Air Consumption @ Load (l/min): 1699
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 12
• Average Air Consumption (l/min): 340

• Blows per Min: 900

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square

• End Plates: Bronze
• Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6

• Hammer Case: Titanium
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.9 / 106.9

• Max Free Speed (rpm): 6500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1497
• Max Torque (in-lb): 17967
• Max Torque (nm): 2030
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Power Source: Air Powered
• Product Length (in): 13.3

• Product Height (in): 10.9
• Product Weight (lb): 15.2
• Recommended Forward Torque Range (ft-lb): 1298
• Recommended Forward Torque Range (in-lb): 15577
• Recommended Forward Torque Range (nm): 1760
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase

• Vibration Level (m/s2): 9.8
• Warranty: 1-year

• Parts: 834-61

IR 2910-726

3/4" Square Drive Anvil for Ingersoll Rand Impact Wrenches

• For Use With: 2925P1TI
• For Use With: 2925RBP1TI
• For Use With: 2925RBP1TIEX

IR 2925-638

IR 2920-74

IR 2920P-465

Inlet Bushing for Ingersoll Rand 259, 261, 271, 1720P Series Impact Wrench

• For Use With: 1720P1
• For Use With: 1720P3
• For Use With: 259
• For Use With: 261
• For Use With: 261-3
• For Use With: 261-6
• For Use With: 271

IR 2910B-364

IR 2925-703

IR 2925-658

IR 2934-23A

IR 2934-207

IR 2934-302

IR 2934-364

IR 2934-42-7

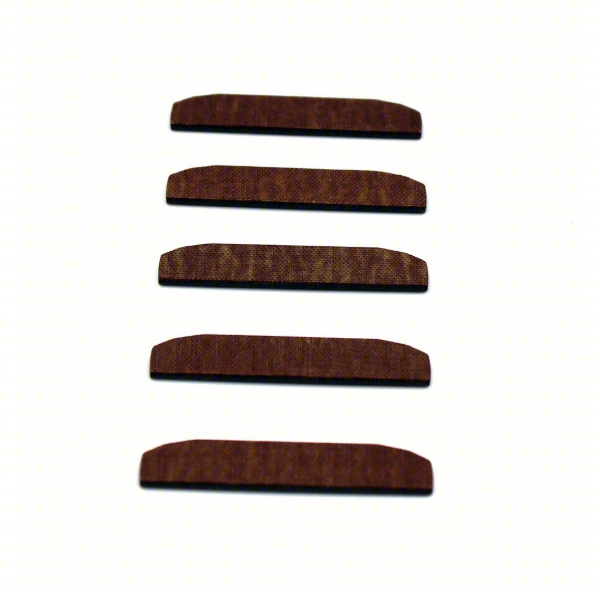

Vane Pack Service Part for Ingersoll Rand Power Tools, QTY 7

IR 2934-641

IR 2934-658A

IR 2934-726

IR 2934B9

1" Air Impact Wrench, Super Duty, 750 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.

Features And Benefits:

• Durability: This Series features an iron hammer case and metal housing that'll withstand harsh conditions and drops.
• Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses:

Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 47
• Average Air Consumption (l/min): 1331

• Blows per Min: 780

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 93.2 / 104.2

• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.5 / 105.5

• Max Bolt Diameter (in): 1.125
• Max Free Speed (rpm): 5300
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 750
• Max Torque (in-lb): 9001
• Max Torque (nm): 1017
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 18.63

• Product Width (in): 4.4
• Product Height (in): 6.7
• Product Weight (lb): 35.75
• Recommended Forward Torque Range (ft-lb): 500-656
• Recommended Forward Torque Range (in-lb): 6001-7877
• Recommended Forward Torque Range (nm): 678-890
• Recommended Reverse Torque (ft-lb): 500-656
• Recommended Reverse Torque (nm): 678-890
• Retainer Type: Thru-hole

• Side to Center Distance (in): 1.63
• Side to Center Distance (mm): 41

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 30.8
• Warranty: 1-year

• Lubrication: 10P
• Parts: 2934-42-6
• Parts: 2934-A827

• Parts: 2934-TK3

IR 2934P-A50

IR 2934SP-A92A

IR 2940-724

IR 2940B2

1" Air Impact Wrench, Industrial Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

Description: Find the top impact tools in the industry. The 2940 Series from Ingersoll Rand has over 100 years of legacy behind it.

Features And Benefits:

• 2,000 ft.-lbs. of maximum torque
• Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
• Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
• Bronze end-plate that increases durability and is corrosion resistant
• Pressure-fed mechanism lubrication
• Reverse Bias Motor and Integral muffler

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• End Plates: Bronze
• Exhaust Location: Bottom

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 5000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 10.2

• Product Width (in): 22.1
• Product Height (in): 6.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170
• Retainer Type: Thru-hole

• Side to Center Distance (in): 11.1
• Side to Center Distance (mm): 282

• Sound Pressure/Power Db(A): 94.8 / 105.8
• Standards/Certifications: CE, Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 17.8
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-A703
• Parts: 2940-TK3

IR 2945-638

IR 2945-704

IR 2945-724

IR 2945-TK2

IR 2950-541
