Manual Dispense Guns

GG 235628

ULTRA-LITE 6000 GUN, FLOW

Graco 235628 Ultra-Lite 6000 Flow Gun with Ball End Valve Needle

The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 6000 psi (414 bar, 41.4 MPa).
• 150 degree head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs
• Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.

• Model: Ultra-Lite
• Series: 6000

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Connection Type: Threaded, Flange

• Gun Activation: Manual

• Inlet Size (in): 1/2

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 415
• Maximum Working Pressure (kg/cm 2): 422
• Maximum Working Pressure (kPa): 41500
• Maximum Working Pressure (MPa): 41.5
• Maximum Working Pressure (psi): 6000

• Nozzle Size (cm): 0.483
• Nozzle Size (in): 0.19
• Nozzle Size (mm): 4.826

• Number of Outputs: 1

GG 249514

THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED

Graco 249514 Therm-O-Flo Bottom Feed Manual Gun, 240V

Hot melt dispense gun provides ergonomic, easy-trigger actuation for high pressure, high flow sealant and adhesive applications.

• Provides accurate dispense control for Therm-O-Flow Systems

  Provides precise proportional control and variable dispense volume with unique tapered needle valve design

  Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control

  Rugged construction - durable, lightweight anodized aluminum body

  Ergonomic, easy-trigger actuation

  Designed for easy service - minimal maintenance and downtime

  Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)

  • Precise temperature control from PID control panel
  • Piston-actuated ball and seat design for positive shut off
  • Rugged all metal construction




  • Model: Therm-O-Flow
  • For Use With: Therm-O-Flow
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 2450
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 2450
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500

GG 235627

ULTRA-LITE 4000 GUN, FLOW

Graco 235627 Ultra-Lite 4000 Flow Gun

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 4000 psi (276 bar, 27.6 MPa).
• 150 degree head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs

• Model: Ultra-Lite
• Series: 4000

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Connection Type: Threaded, Flange

• Gun Activation: Manual

• Inlet Size (in): 1/4

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kg/cm 2): 281
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Number of Outputs: 1

GG 244161

INLINE GUN

Graco 244161 Contractor Gun In-Line Valve

Genuine Graco Contractor In-Line Valve Gun. Refer to the parts manual for your sprayer to ensure part compatibility

• Can be used with other extended reach tools such as Heavy Duty Extensions and Telescoping Extensions for Pressure Rolling
• Provides a straight connection to extensions for the most optimal rolling position
• In-handle paint filter and built-in swivel connection for top spraying performance

• Model: Graco

• For Use With: Pole Gun

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPSM

• Maximum Working Pressure (bar): 248
• Maximum Working Pressure (kPa): 24800
• Maximum Working Pressure (MPa): 25
• Maximum Working Pressure (psi): 3600

• Outlet Size (cm): 2.2225
• Outlet Size (in): 7/8
• Outlet Size (mm): 22.225
• Outlet Thread Type: UNF

GG 204355

GUN, EXTRUSION

Graco 204355 Palm Grip Extrusion Gun

For precise control of low-viscosity sealants and adhesives.

• Handles:
  • PVC sealers with glass or plastic filler
  • Low to high abrasive fluids
  • Waterborne or solventborne materials
  • Most fluids up to 150,000 centipoise
• Well-suited for dispensing onto horizontal surfaces
• Selectable trigger lock and hanger slot for operator convenience
• Rugged, lightweight design

GG 117792

GG 25P587

FUSION PC GUN, RND, 00

Graco 25P587 Fusion ProConnect Gun with Round 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): .029
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.74
• Includes: PC29RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air

GG 25P588

FUSION PC GUN, RND, 01

Graco 25P588 Fusion ProConnect Gun with Round 01 Mix Chamber and 0.042 in (1.06 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.042
• Impingement Port Size (mm): 1.07
• Includes: PC42RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air

GG 257498

DISPENSER,GX16,NO:ORFC

Graco 257498 GX-16 Pour Gun

• Model: GX-16

• Application: NVH

• Compatible Material: Solventborne Paints and Resins, Oil and Catalysts

GG C27020

GUN, FLOW,PISTOL GRIP

Graco C27020 Pistol Grip Flow Gun

Rely on Graco pistol grip dispense guns for precise control of sealants and adhesive. No matter what the viscosity or material, Graco has a solution for you.

Application: For precise control of automotive and industrial adhesives and sealants

• 150 degree Pistol Grip Flow Guns (6000 psi/414 bar/41.4 mPa)
• Precise control of highly viscous material
• 150 degree head/handle is comfortable for operator Changeable tips for a variety of dispensing needs
• Lightweight with convenient trigger pull
• Typical applications: Automotive or industrial sealant and adhesive applications, high flow rate requirements, abrasive fluid requirements
• Handles rubber-based sealers, waterborne adhesives, silicone and solvent-borne materials
• 120 degree or 90 degree head/handle (3400 psi/235 bar/23.5 mPa)
• Lightweight, low trigger pull
• Typical applications: automotive and industrial adhesives and sealants, low to high flow rate requirements, in-line handle requirements
• Handles rubber-based fluids, caulks, sealants, adhesives

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill, Metering, Regulating

GG 16C279

GG 257999

EP GUN,250,031,HAND HELD

Graco 257999 EP250 Handheld Pour Gun with 0.25 in Purge Rod Diameter and 0.031 Orifice Size

The Graco EP Pour Gun is truly an innovative advancement for the polyurethane processing industry. Here's why. First of all, it's engineered with technology that allows for on-site rebuilds. Which means significantly less downtime and no more expensive backup mixheads. Second, it's affordable, with a low initial investment. Best of all, the Graco EP Pour Gun provides accurate on-ratio dispensing and handles a variety of materials.

Application: Polyurethane mixhead for open pour and closed-mold injection applications

• Low initial investment

• Easy do-it-yourself mixhead rebuilds

• Delivers repeatable, accurate shots

  Accurate, on-ratio dispensing

• Lightweight

• Responsive trigger delivers repeatable, accurate shots

• Offers both manual and automated application modes

• For open pour applications and closed-mold injection

• Compatible with Graco HFR Metering System, Reactor IP-25 and Reactor IP-40

• Application: Rigid Polyurethane, Flexible Polyurethane

IR R000A2-228

Push-type Hand Grease Gun for for Flush-Type Fittings, 3 oz Capacity

Description: It goes without saying that proper lubrication of any tool is essential if you want the tool to last. By lubricating your air tools, you'll prolong the life of tool motors, mechanisms, gearing, and other vital parts. Ingersoll Rand offers a complete line of specialized oils and greases that are engineered specifically for use with our air tools. Grease guns are available for your convenience to dispense the line of lubricants.

Product Application and Uses:

Push-type hand grease gun for flush-type fittings holds up to 3 oz of grease.

• Canister Capacity (g): 0.02
• Canister Capacity (oz): 3

BB 6279-0000-1

GG 114330

GG GCP2R0

P2 GUN

Graco GCP2R0 Probler P2 Gun Assembly with 00 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.074
• Fluid Orifice Size (in): 0.029
• Fluid Orifice Size (mm): 0.74

• For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment

• Gun Activation: Manual
• Gun Included: 1
• Gun Series: Standard
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 241
• Maximum Fluid Working Pressure (MPa): 24.1
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 00 (.029)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121

GG 224872

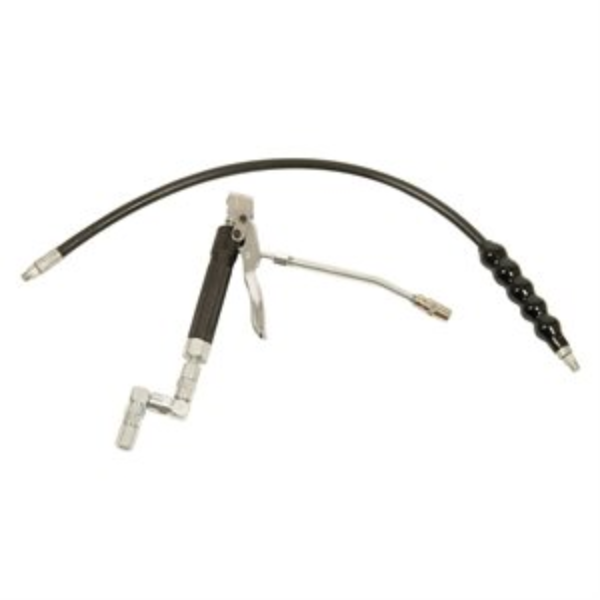

PRO-SHOT SYSTEM, DISPENSE

Graco 224872 Pro-Shot Grease Dispense Valve - Includes 30 in (76.2 cm) Whip Hose, Z-Swivel and Grease Valve

For heavy-duty applications, this non-metered dispense valve is designed to perform in heavy equipment shops, fleet maintenance shops, and municipal garages.

• Pressure-assisted trigger for ease of operation
• Easy top adjustment with locking nut
• Rugged design to withstand harsh environments
• Without coupler or extension

• Compatible Material: Grease

• Includes: 30 in (76.2 mm) Whip Hose, Z-Swivel, Grease Valve

• Maximum Working Pressure (bar): 560
• Maximum Working Pressure (kPa): 56000
• Maximum Working Pressure (psi): 8000

• Power Type: Manual

GG 237649

ULTRA-LITE 4000 GUN, FLOW, SWIVEL INLET

Graco 237649 Ultra-Lite 4000 SD with Swivel

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 4000 psi (276 bar, 27.6 MPa).
• 150 degree head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs

• Model: Ultra-Lite
• Series: 4000

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kg/cm 2): 281
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Nozzle Size (cm): 0.508
• Nozzle Size (in): 0.2
• Nozzle Size (mm): 5.08

BB 102-3610

GG 112005

GG 112007

GG 25P589

FUSION PC GUN, RND, 02

Graco 25P589 Fusion ProConnect Gun with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): .052
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.32
• Includes: PC52RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air I

GG C02026

GUN, PISTOL GRIP VALVE MTR

GG CS00RD

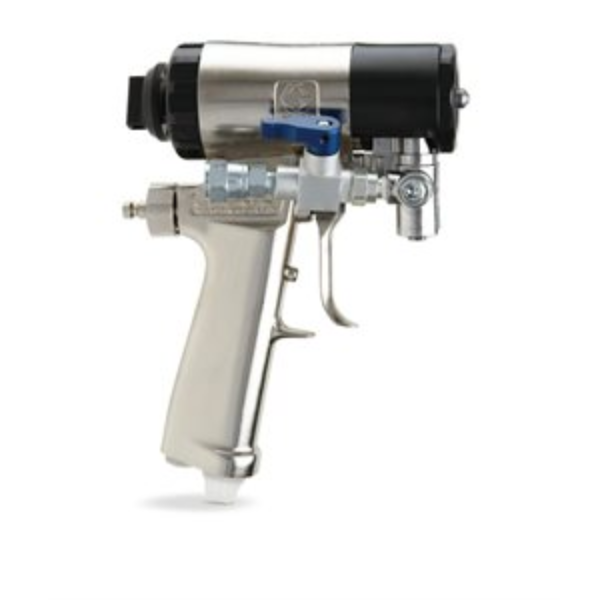

FUSION CS GUN, RD0000

Graco CS00RD Fusion CS Gun, Round Spray Pattern, 0.029 in (0.74 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first

  First plural-component gun with variable flow

  Switch from large to small spray patterns in seconds

  Gives you more maneuverability to spray in small, tight areas

  Ten different settings

  • Quick-change front - simpler and cleaner

    Swap out fluid heads in seconds

    Non-stick polymer cover keeps gun head cleaner

    Air knifereduces material build-up

    Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule




    • Model: Fusion CS
    • Series: Round
    • Air Inlet Size (cm): 0.635
    • Air Inlet Size (in): 1/4
    • Air Inlet Size (mm): 6.35
    • Air Inlet Thread Gender: Male
    • Air Inlet Thread Type: NPT
    • Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
    • Component A Inlet Size (cm): 1.27
    • Component A Inlet Size (in): 1/2-20
    • Component A Inlet Size (mm): 12.7
    • Component A Inlet Thread Type: UNF
    • Component B Inlet Size (cm): 1.42875
    • Component B Inlet Size (in): 9/16-18
    • Component B Inlet Size (mm): 14.2875
    • Component B Inlet Thread Type: UNF
    • Component Type: Plural-Component
    • Fluid Orifice Size (cm): 0.074
    • Fluid Orifice Size (in): 0.029
    • Fluid Orifice Size (mm): 0.74
    • For Use With: Non-Flammable Foam and Polyurea
    • Gun Activation: Manual
    • Gun Type: Liquid-Purge
    • Gun Weight (g): 1180
    • Gun Weight (kg): 1.18
    • Gun Weight (lb): 2.6
    • Gun Weight (oz): 41.6
    • Impingement Port Size (in): 0.029
    • Impingement Port Size (mm): 0.70
    • Includes: Mix Chamber
    • Maximum Air Inlet Pressure (bar): 9
    • Maximum Air Inlet Pressure (kPa): 900
    • Maximum Air Inlet Pressure (MPa): 0.9
    • Maximum Air Inlet Pressure (psi): 130
    • Maximum Air Pressure (bar): 9
    • Maximum Air Pressure (kPa): 900
    • Maximum Air Pressure (MPa): 0.9
    • Maximum Air Pressure (psi): 130
    • Maximum Flow Rate (kg/min): 11.3
    • Maximum Flow Rate (lb/min): 25
    • Maximum Flow Rate @ PSI (lb/min): 25
    • Maximum Fluid Pressure (bar): 241
    • Maximum Fluid Pressure (kPa): 24100
    • Maximum Fluid Pressure (MPa): 24.1
    • Maximum Fluid Pressure (psi): 3500
    • Maximum Fluid Temperature ( degree C): 93
    • Maximum Fluid Temperature ( degree F): 200
    • Maximum Fluid Pressure (bar): 241
    • Maximum Fluid Pressure (kPa): 24100
    • Maximum Fluid Pressure (MPa): 24.1
    • Maximum Fluid

BB 6277-3525-7
