GG CS00RD
FUSION CS GUN, RD0000

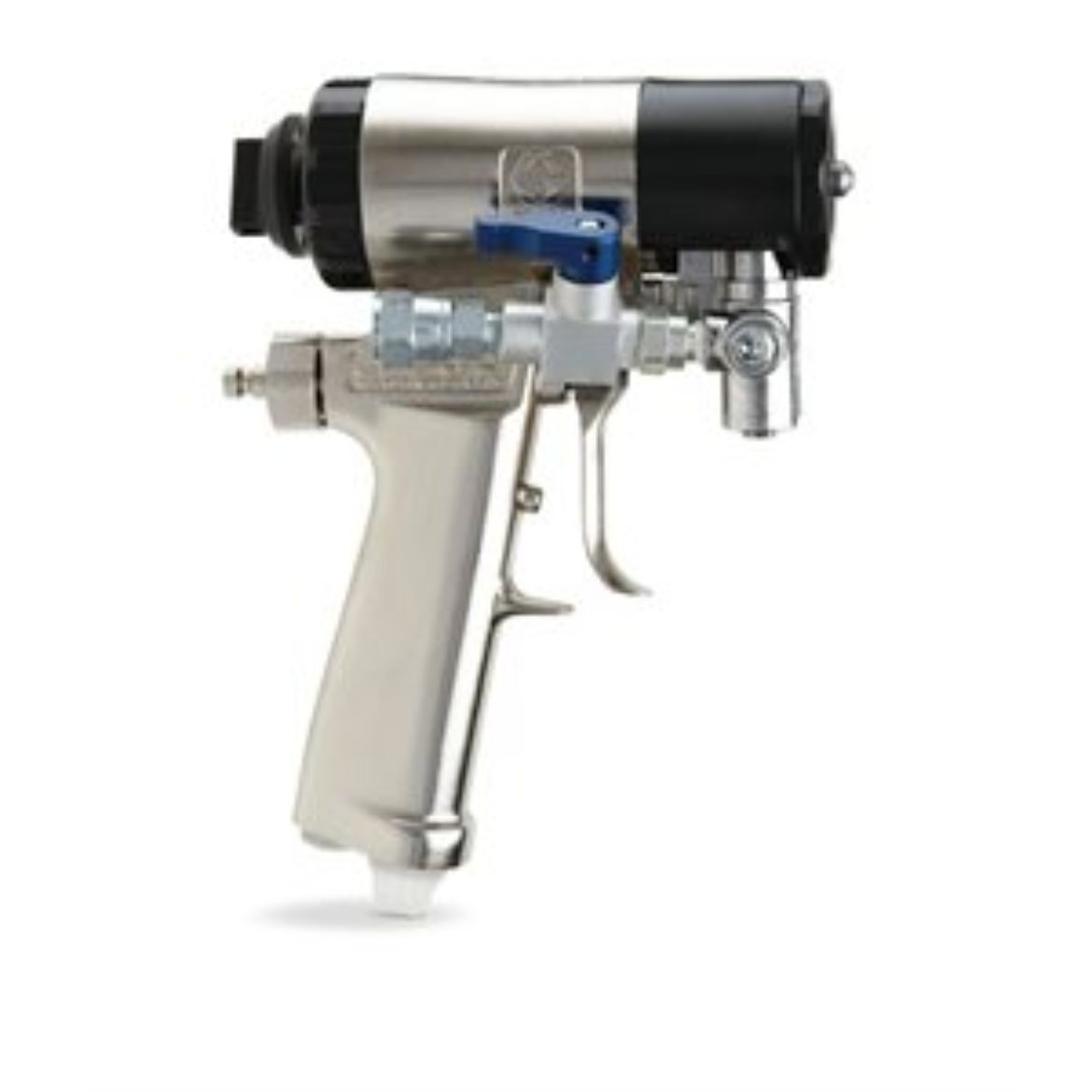

Graco CS00RD Fusion CS Gun, Round Spray Pattern, 0.029 in (0.74 mm) Mix Chamber
ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.
Application: For high output spray polyurethane foam and polyurea applications.
- New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
- Removes foam and keeps mix chamber clear
- Saves almost an hour of maintenance time each spray day
- Easy-to-insert cartridge fits into ergonomic handle
- Variable flow - an industry first
First plural-component gun with variable flow
Switch from large to small spray patterns in seconds
Gives you more maneuverability to spray in small, tight areas
Ten different settings
- Quick-change front - simpler and cleaner
Swap out fluid heads in seconds
Non-stick polymer cover keeps gun head cleaner
Air knifereduces material build-up
Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule
- Model: Fusion CS
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Type: Liquid-Purge
- Gun Weight (g): 1180
- Gun Weight (kg): 1.18
- Gun Weight (lb): 2.6
- Gun Weight (oz): 41.6
- Impingement Port Size (in): 0.029
- Impingement Port Size (mm): 0.70
- Includes: Mix Chamber
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate (kg/min): 11.3
- Maximum Flow Rate (lb/min): 25
- Maximum Flow Rate @ PSI (lb/min): 25
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (p
