FUSION AP GUN, ROUND 01

GG 246101

FUSION AP GUN, ROUND 01

Graco 246101 Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Round

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Applicator Type: Manual
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16-18
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
Fluid Orifice Size (cm): 0.107
Fluid Orifice Size (in): 0.042
Fluid Orifice Size (mm): 1.07
For Use With: Non-Flammable Foam and Polyurea
Gun Activation: Manual
Gun Included: 1
Gun Type: Air Purge Gun
Gun Weight (g): 1130
Gun Weight (kg): 1.1
Gun Weight (lb): 2.5
Gun Weight (oz): 40
Impingement Port Size (in): 0.042
Impingement Port Size (mm): 1.00
Includes: AR4242 Mix Chamber Tip
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Working Pressure (bar): 245
Maximum Fluid Working Pressure (MPa): 24.5
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80
Mix Chamber: 01 (.042)
Overall Hei

$3,680.00

FUSION AP GUN, ROUND 00

GG 246100

FUSION AP GUN, ROUND 00

Graco 246100 Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Round

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Applicator Type: Manual
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16-18
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
Fluid Orifice Size (cm): 0.074
Fluid Orifice Size (in): 0.029
Fluid Orifice Size (mm): 0.74
For Use With: Non-Flammable Foam and Polyurea
Gun Activation: Manual
Gun Included: 1
Gun Type: Air Purge Gun
Gun Weight (g): 1130
Gun Weight (kg): 1.1
Gun Weight (lb): 2.5
Gun Weight (oz): 40
Impingement Port Size (in): 0.029
Impingement Port Size (mm): 0.70
Includes: AR2929 Mix Chamber Tip
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Working Pressure (bar): 245
Maximum Fluid Working Pressure (MPa): 24.5
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80
Mix Chamber: 00 (.029)
Overall He

$3,680.00

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 25

GG 16R003

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 25

Graco 16R003 13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT

$16,860.00

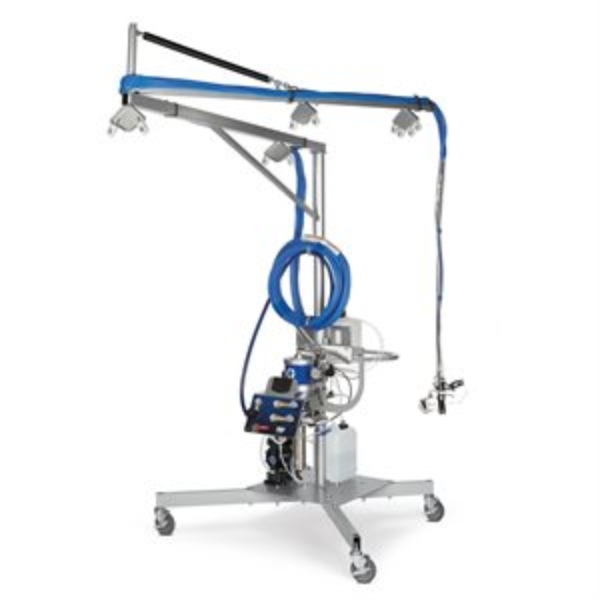

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 35

GG 16R091

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 35

Graco 16R091 13:1 Ratio External Mix Chop System with 35 ft (10.7 m) Hose, Cart, Mast, and Boom

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT

$16,990.00

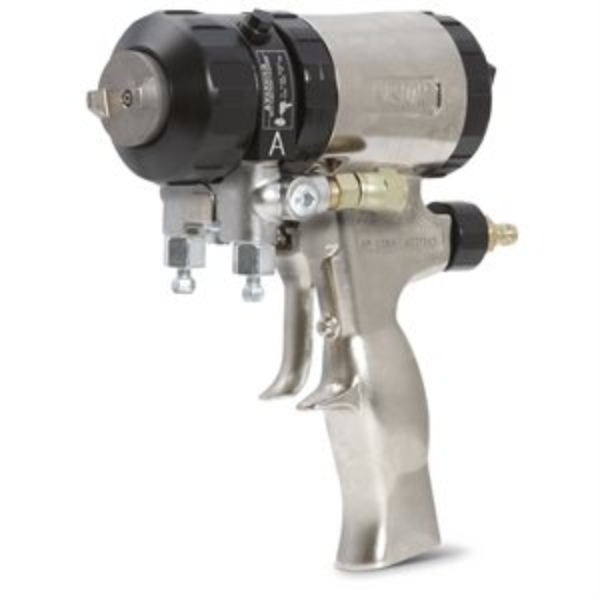

FUSION AP GUN, AF2929, FT0438

GG 247112

FUSION AP GUN, AF2929, FT0438

Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle

$3,940.00

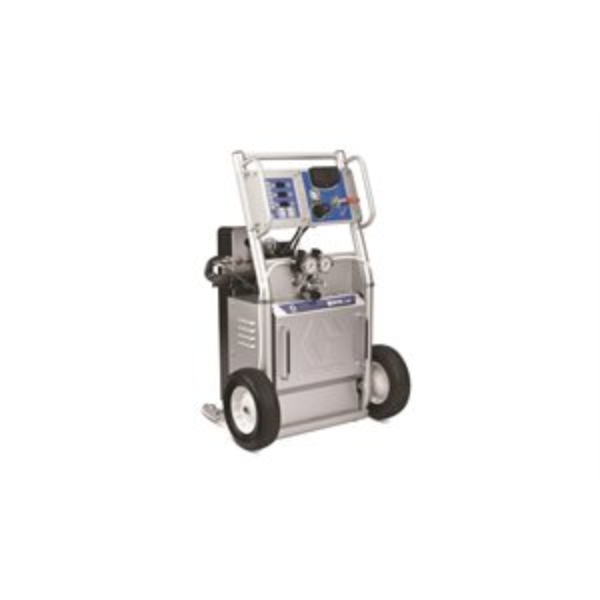

REACTOR A-25 SYSTEM, FUSION AP

GG AP2614

REACTOR A-25 SYSTEM, FUSION AP

Graco AP2614 Reactor A25 Proportioner Package, Fusion AP Gun, Wheels, DataTrak, 230/400 V

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you&prime, re spraying at maximum flow rates - resulting in better quality foam.

Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.

Maintains temperature setpoints for better yield
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain
DataTrak Control
Resettable counter tracks material usage
Three Heat Zones
Three independent heat zones – ISO, resin and hose heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls
Recirculation Manifold
A quick, easy way to balance system pressures
NXT Air Motor
Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover
Quick Knockdown Lower Pumps
For easy disassembly and maintenance
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft

Model: Reactor
Series: A-25

Air Inlet Size (cm): 1.27
Air Inlet Size (in): 1/2
Air Inlet Size (mm): 12.7
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 3/4
Component A Inlet Size (mm): 19.05
Component A Thread Gender: Female
Component A Thread Type: NPT
Component B Inlet Size (in): 3/4
Component B Inlet Size (mm): 19.05
Component B Thread Gender: Female
Component B Thread Type: NPT
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Includes: Proportioner, Fusion AP Gun, Heated Hose, Wheels, DataTrak
Material Application: Polyurethane Foam
Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (kg/min): 11.4
Maximum Flow Rate (lb/min): 25
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid

$27,390.00

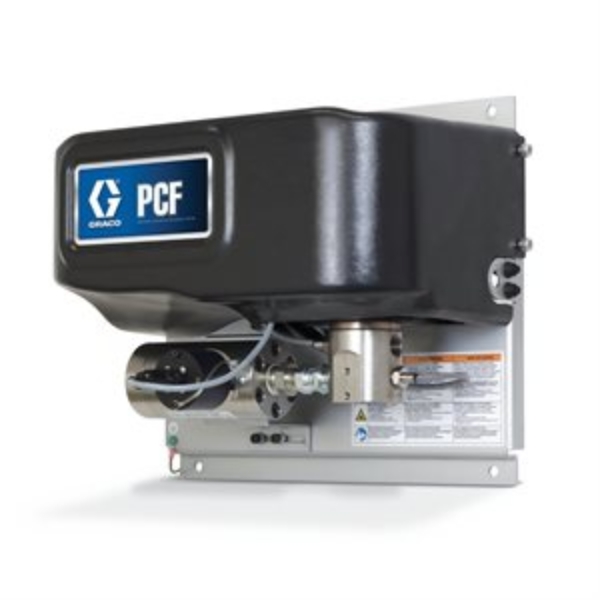

PCF SYSTEM, 016, CART, HR METER, EP

GG PF2320

PCF SYSTEM, 016, CART, HR METER, EP

Graco PF2320 16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and EtherNet/IP User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.

Application: Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Outlet Size (in): 5/32
Ambient/Warm Melt/Hot Melt: Ambient
Amperage (A): 1.4
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Metering, Regulating
Applicator Type: Automatic
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Flow Control Type: Regulation, Control
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 17256.6929133858
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 1725.6692913386
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Frequency (Hz): 50/60
Gateway: EtherNet/IP User Interface
Gun Activation: Automatic
Includes: Regulator, Flow Meter, FCM Key Token
Maximum Air Inlet Pressure (bar): 8.27
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (MPa): 0.83
Maximum Air Inlet Pressure (psi): 120
Maximum Ambient Temperature (°C): 49
Maximum Ambient Temperature (°F): 120
Maximum Flow Rate (cc/min): 7500
Maximum Flow Rate (GPM): 1.98
Maximum Flow Rate (L/min): 7.5
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Viscosity (cP): 1000000
Maximum Fluid Working Pressure (bar): 414
Maximum Fluid Working Pressure (MPa): 41
Maximum Fluid Working Pressur

$34,840.00

FUSION AP GUN, ROUND 02

GG 246102

FUSION AP GUN, ROUND 02

Round Fusion Air-Purge Gun with 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

$3,680.00

FRP RS CHOP SYSTEM, XC, 13:1, CART, 50

GG 16R082

FRP RS CHOP SYSTEM, XC, 13:1, CART, 50

Graco 16R082 13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose and Cart

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XC
        Air Inlet Size (cm): 0.635
        Air Inlet Size (in): 1/4
        Air Inlet Size (mm): 6.35
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component A Inlet Size (mm): 9.525
        Component B Inlet Size (in): 1-5/16
        Component B Inlet Size (mm): 33.34
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (cm): 1.905
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Size (mm): 19.05
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid O

$15,200.00

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 50

GG 16R094

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 50

Graco 16R094 13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose, Cart, Mast, and Boom

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT

$35,580.00

FRP RS CHOP SYSTEM, XC, 13:1, NO, 25

GG 16R100

FRP RS CHOP SYSTEM, XC, 13:1, NO, 25

Graco 16R100 13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location

        Model: FRP
        Series: XC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Hose Length (ft): 25
        Hose Length (m): 7.6
        Includes: Hose,
        Maximum Air Inlet Pressure (bar): 6.9
        Maximum Air Inlet Pressure (kPa): 690
        Maximum Air Inlet Pressure (psi):

$14,360.00

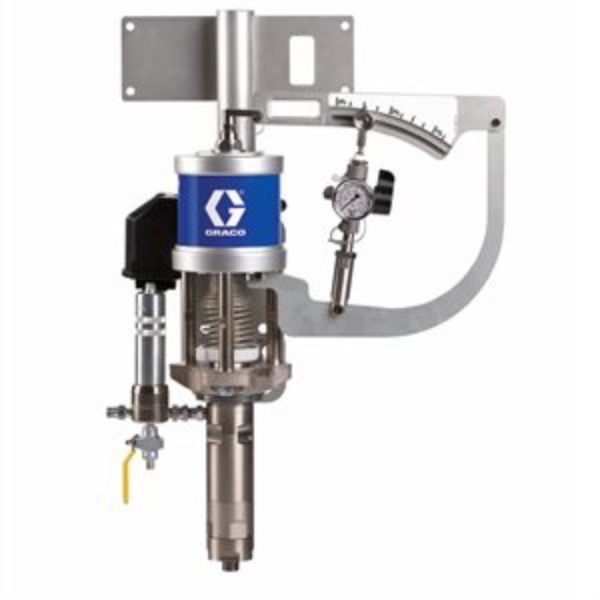

FRP RS CHOP SYSTEM, XC, 13:1, NO, 50

GG 16R106

FRP RS CHOP SYSTEM, XC, 13:1, NO, 50

Graco 16R106 13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location

        Model: FRP
        Series: XC
        Air Inlet Size (cm): 0.635
        Air Inlet Size (in): 1/4
        Air Inlet Size (mm): 6.35
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component A Inlet Size (mm): 9.525
        Component B Inlet Size (in): 1-5/16
        Component B Inlet Size (mm): 33.34
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (cm): 1.905
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Size (mm): 19.05
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Hose Length (ft): 5

$14,170.00

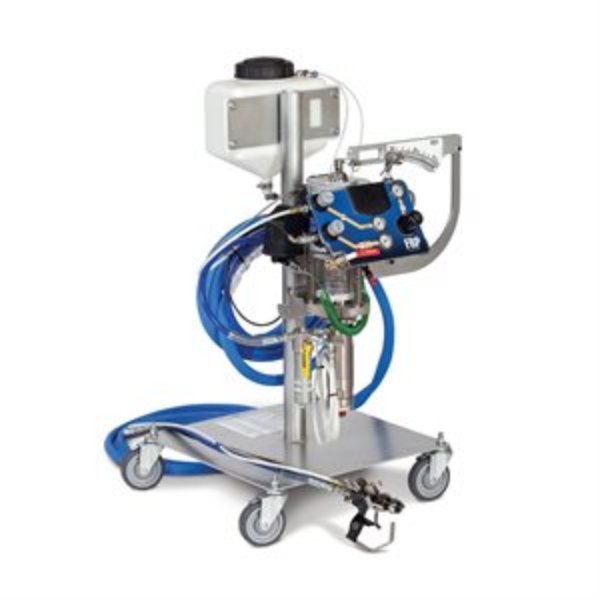

FRP RS GEL SYSTEM, XG, 17:1, CART, 35

GG 16R149

FRP RS GEL SYSTEM, XG, 17:1, CART, 35

Graco 16R149 17:1 Ratio External Mix Gel System with 35 ft (10.7 m) Hose and Cart

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XG
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Hose Length (ft): 35
        Hose Length (m): 10.7
        Includes: Hose, C

$15,050.00

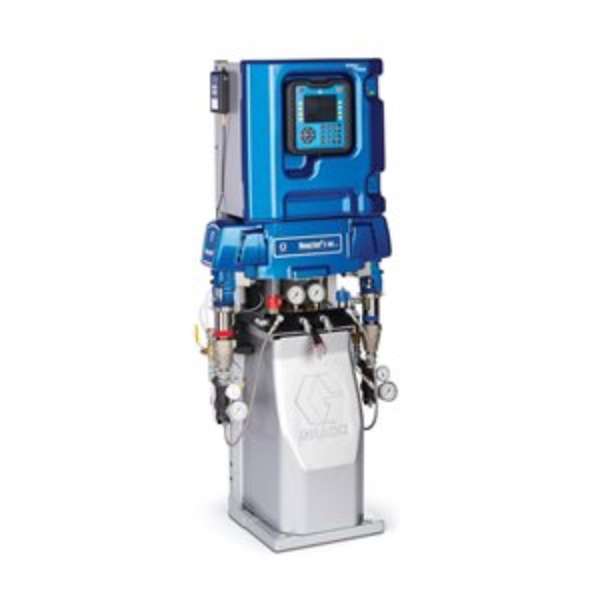

REACTOR 2 E-XP2 SYSTEM, AP

GG AP2012

REACTOR 2 E-XP2 SYSTEM, AP

Graco AP2012 Reactor 2 E-XP2 Proportioner, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 230/400 V

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it&prime, s a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.

Application: Next generation technology for polyurea coatings.

Reactor 2 E-XP2 gives you:
Compact footprint - more room in your spray rig
Ergonomic design - easier to service
Advanced control modules
Better spraying performance compared to traditional electric Reactor systems
Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Advanced control modules
Handles power fluctuations
Sacrificial surge protector
Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
Covers user display module, control modules and electric motor
One of the best in the industry

Model: Reactor 2
Series: E-XP2
Product Series: Non-Elite

Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application: Protective Coatings
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 1/2
Component A Inlet Size (mm): 12.7
Component A Thread Type: JIC
Component B Inlet Size (mm): #10
Component B Outlet Size (in): 5/8
Component B Outlet Size (mm): 15.875
Component B Thread Type: JIC
Component Type: Two Component
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Flush Type: Solvent

$47,900.00

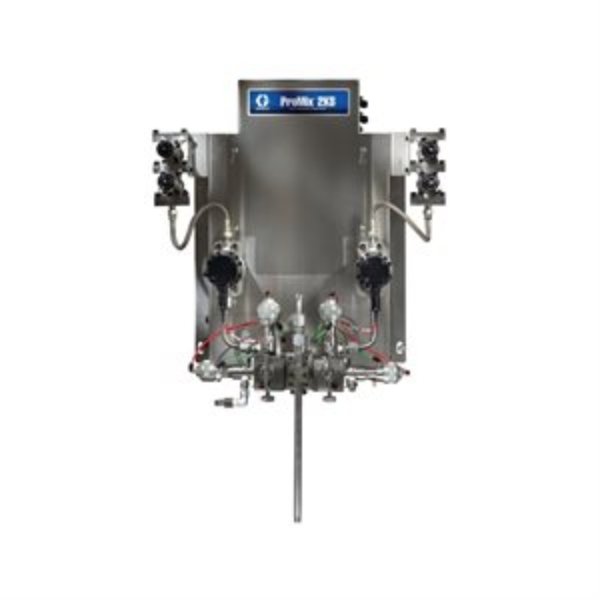

PROMIX 2KS PROPORTIONER, MANUAL SYSTEM

GG MD1001

PROMIX 2KS PROPORTIONER, MANUAL SYSTEM

ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 1 color, 1 catalyst, and 1 Air Flow Switch Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing Intrinsically safe fluid panels easily integrate into hazardous areas Accurate ratio assurance for superior finish quality Advanced web interface provides consolidated system management and reporting

$46,580.00

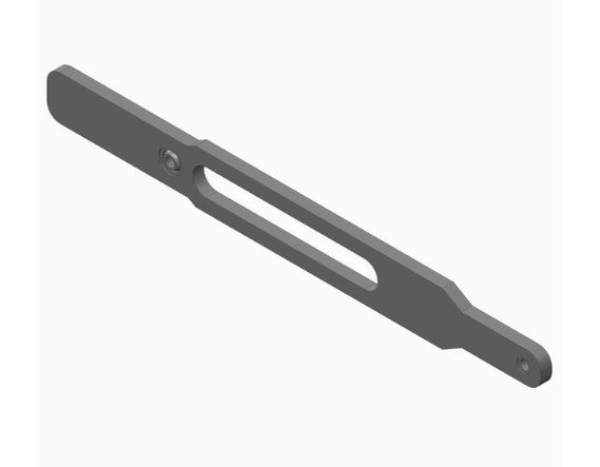

Arm, Drive, Pump, Slave

GG SSP-115

Arm, Drive, Pump, Slave

$540.00

FRP RS CHOP SYSTEM, IC, 13:1, CMB, 25

GG 16R004

FRP RS CHOP SYSTEM, IC, 13:1, CMB, 25

Graco 16R004 13:1 Ratio Internal Mix Chop System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom

Optimized Ratio Stability
- Lower Cost of Ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: IC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT

$16,860.00

FRP RS CHOP SYSTEM, XC, 13:1, CART, 25

GG 16R088

FRP RS CHOP SYSTEM, XC, 13:1, CART, 25

Graco 16R088 13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose and Cart

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XC
        Air Inlet Size (in): 1/4
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component B Inlet Size (in): 1-5/16
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Hose Length (ft): 25
        Hose Length (m): 7.6
        Includes: Hose, C

$15,540.00

FRP RS GEL SYSTEM, XG, 17:1, CART, 50

GG 16R152

FRP RS GEL SYSTEM, XG, 17:1, CART, 50

17:1 Ratio External Mix Gel System with 50 ft (15.2 m) Hose and Cart

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrak™ Control

Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

Better guides—less tangling, more uptime

Gravity Fed Catalyst System

Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less

Balanced Graco NXT® Air Motor

Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern

Control Panel

Easy user interface with all gauges in one location

Stable, Lightweight Cart

Easy to maneuver
Strong, durable casters

$14,270.00

FRP RS GEL SYSTEM, XG, 17:1, CMB, 35

GG 16R161

FRP RS GEL SYSTEM, XG, 17:1, CMB, 35

Graco 16R161 17:1 Ratio External Mix Gel System with 35 ft (10.7 m) Hose, Cart, Mast, and Boom

Optimized ratio stability
- Lower cost of ownership
  - Optional DataTrak™ Control
    - Gravity Fed Catalyst System
      - New Linkage and Catalyst Pump
        Truly engineered linkage for superior ratio control
        Allows for infinite adjustment of catalyst percentage — no tools required
        Ensures proper catalyst percentage and optimum results
        Variance of 1% or less
        Balanced Graco NXT® Air Motor
        Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
        Shortened stroke on pump for better spray pattern
        Control Panel
        Easy user interface with all gauges in one location
        Stable, Lightweight Cart
        Easy to maneuver
        Strong, durable casters

        Model: FRP
        Series: XG
        Air Inlet Size (cm): 0.635
        Air Inlet Size (in): 1/4
        Air Inlet Size (mm): 6.35
        Air Inlet Thread Gender: Female
        Air Inlet Thread Type: NPT
        Component A Inlet Size (in): 3/8
        Component A Inlet Size (mm): 9.525
        Component B Inlet Size (in): 1-5/16
        Component B Inlet Size (mm): 33.34
        Component B Thread Gender: Male
        Component B Thread Type: UN-2A
        Fluid Inlet Size (cm): 1.905
        Fluid Inlet Size (in): 3/4
        Fluid Inlet Size (mm): 19.05
        Fluid Inlet Thread Gender: Male
        Fluid Inlet Thread Type: NPT
        <

$16,840.00

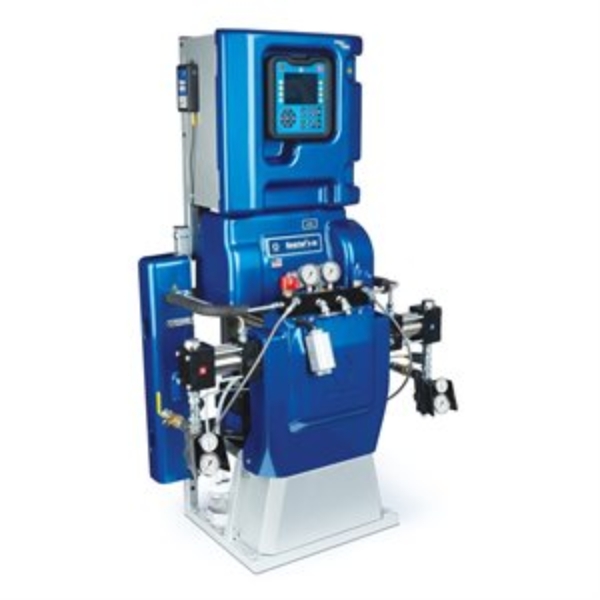

REACTOR 2 H-40 PROPORTIONER, 230V, 15KW, ELITE

GG 17H143

REACTOR 2 H-40 PROPORTIONER, 230V, 15KW, ELITE

Graco 17H143 Reactor 2 H-40 Elite Proportioner, 15 kW, 230 V

Graco&prime, s hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.

What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 model
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Sacrificial surge protector
Protects your electronics against excessive power spikes
Three-year warranty
Covers user display and control modules
One of the best in the industry

Model: Reactor 2
Series: H-40
Product Series: Elite

Amperage (A): 71
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: No Gun
Hose Package: No Hose
Includes: Elite Kit
Material Application: Polyurethane Foam
Maximum Flow Rate (kg/min): 20.41
Maximum Flow Rate (lb/min): 45
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Hose Length (ft): 410
Maximum Hose Length (m): 125
Maximum Mix Ratio: 1:1
Maximum Working Pressure (bar): 138
Maximum Working Pressure (kPa): 13800
Maximum Working Pressure (MPa): 13.8
Maximum Working Pressure (psi): 2000
Overall Depth (cm): 53
Overall Depth (in): 20.88
Overall Depth (mm): 530
Overall Height (cm): 160.8
Overall Height (in): 63.3
Overall Height (mm): 1608
Overall Width (cm): 83.7
Ov

$50,760.00

FUSION AP GUN, ROUND 000

GG 246099

FUSION AP GUN, ROUND 000

Graco 246099 Round Fusion Air-Purge Gun with 000 Mix Chamber and 0.020 in (0.51 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Round

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Fluid Orifice Size (cm): 0.051
Fluid Orifice Size (in): 0.020
Fluid Orifice Size (mm): 0.51
Gun Type: Air Purge Gun
Gun Weight (g): 1130
Gun Weight (kg): 1.1
Gun Weight (lb): 2.5
Gun Weight (oz): 40
Impingement Port Size (in): 0.020
Impingement Port Size (mm): 0.50
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80
Mix Chamber: 000 (.020)
Overall Height (cm): 20.6
Overall Height (in): 8.1
Overall Height (mm): 206
Overall Length (cm): 19.1
Overall Length (in): 7.5
Overall Length (mm): 191
Overall Width (cm): 8.4
Overall Width (in): 3.3
Overall Width (mm): 84
Pattern Size (in): 5 in @ 24 in from target

$3,680.00

FUSION AP GUN, AF2020, FT0424

GG 247101

FUSION AP GUN, AF2020, FT0424

Graco 247101 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Flat

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Fluid Orifice Size (cm): 0.061
Fluid Orifice Size (in): 0.024
Fluid Orifice Size (mm): 0.61
Gun Type: Air Purge Gun
Gun Weight (g): 1130
Gun Weight (kg): 1.1
Gun Weight (lb): 2.5
Gun Weight (oz): 40
Impingement Port Size (in): 0.020
Impingement Port Size (mm): 0.50
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80
Mix Chamber: 000 (.020)
Overall Height (cm): 20.6
Overall Height (in): 8.1
Overall Height (mm): 206
Overall Length (cm): 19.1
Overall Length (in): 7.5
Overall Length (mm): 191
Overall Width (cm): 8.4
Overall Width (in): 3.3
Overall Width (mm): 84
Pattern Size (in): 10 in @ 24 in from target

$3,940.00

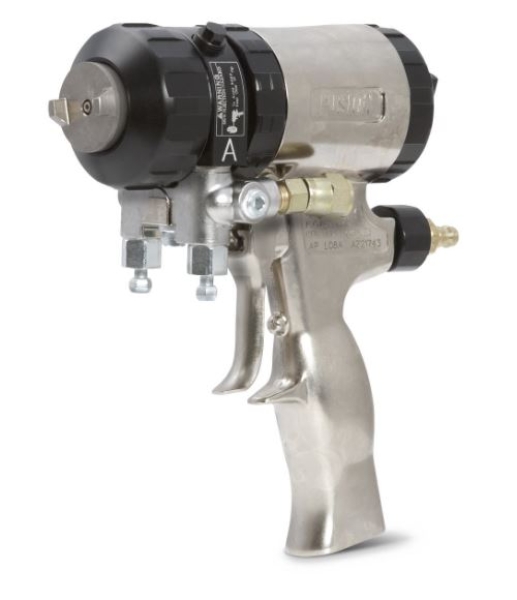

Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

GG 247117

FUSION AP GUN, AF2929, FT0838

Graco 247117 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Flat

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35

Compatible Material: Polyurea, Non-Flammable Polyurethane Foam

Fluid Orifice Size (cm): 0.097
Fluid Orifice Size (in): 0.038
Fluid Orifice Size (mm): 0.97

Gun Type: Air Purge Gun
Gun Weight (g): 1130
Gun Weight (kg): 1.1
Gun Weight (lb): 2.5
Gun Weight (oz): 40

Impingement Port Size (in): 0.029
Impingement Port Size (mm): 0.70
Includes: AF2929 Mix Chamber, FT0838 Flat Tip

Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9

Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130

Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature ( degree C): 93
Maximum Fluid Temperature ( degree F): 200

Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80

Mix Chamber: 00 (.029)

Overall Height (cm): 20.6
Overall Height (in): 8.1
Overall Height (mm): 206
Overall Length (cm): 19.1
Overall Length (in): 7.5
Overall Length (mm): 191
Overall Width (cm): 8.4
Overall Width (in): 3.3
Overall Width (mm): 84

Pattern Size (in): 16-18 in @ 24 in from target

$3,940.00

FUSION AP GUN, AR5252, AUTO

GG 248378

FUSION AP GUN, AR5252, AUTO

Graco 248378 Round Fusion Air-Purge Gun with 02 Mix Chamber

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Ergonomic handle

Model: Fusion AP
Series: Auto

Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Fluid Orifice Size (cm): 0.132
Fluid Orifice Size (in): 0.052
Fluid Orifice Size (mm): 1.32
Gun Type: Air Purge Gun
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Minimum Air Inlet Pressure (bar): 5.5
Minimum Air Inlet Pressure (kPa): 550
Minimum Air Inlet Pressure (MPa): 0.55
Minimum Air Inlet Pressure (psi): 80
Mix Chamber: 02 (.052)
Overall Height (cm): 9.5
Overall Height (in): 3.75
Overall Height (mm): 95
Overall Length (cm): 19.3
Overall Length (in): 7.6
Overall Length (mm): 193
Overall Width (cm): 7.9
Overall Width (in): 3.1
Overall Width (mm): 79

$5,050.00

Refine
