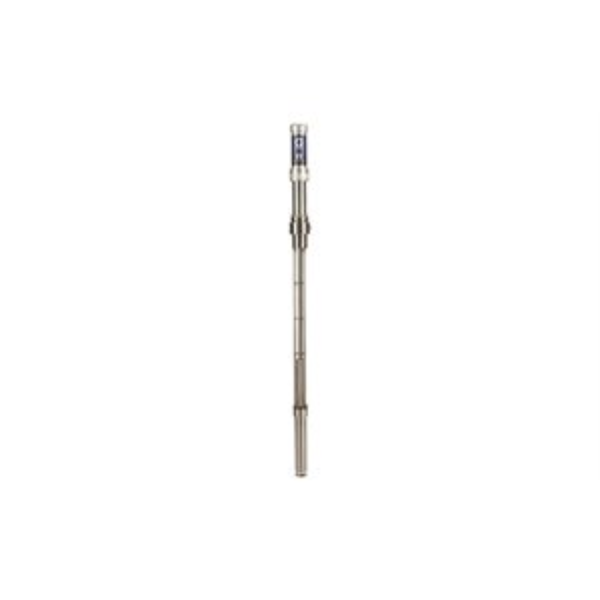

T1 PUMP

GG 256200

T1 PUMP

T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

Graco's family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Ideal for moving A and B materials to Reactor spray machines. Provide consistent feed pressures and flow rates for dependable results Lower pressure drops with higher viscosity materials at any ambient temperature Designed and manufactured by the worldwide leader in pump technology Longer lasting pump - designed for durability with less maintenance Quick-release bung adapter for easy drum removal without interference from hose connections Stainless steel wetted parts for corrosion-resistance PTFE seals for improved performance and less maintenance

$1,925.00

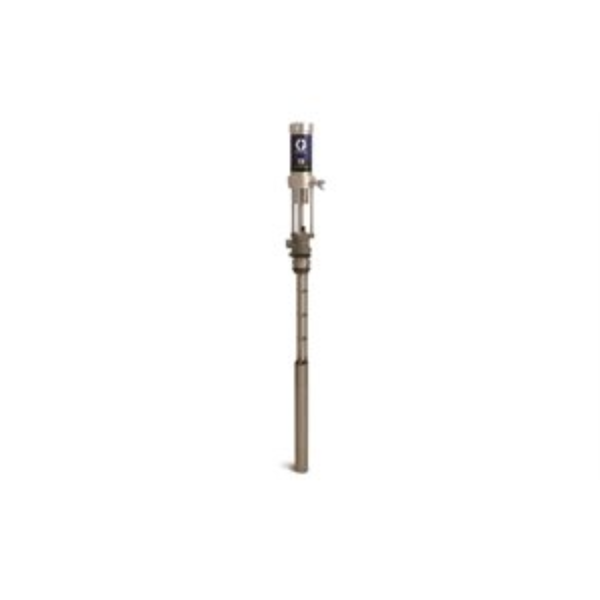

T2 Pump, Transfer, 2:1

GG 295616

T2 Pump, Transfer, 2:1

Graco 295616 T2 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

Graco&prime, s family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Application: Ideal for moving A and B materials to Reactor spray machines.

Provide consistent feed pressures and flow rates for dependable results
Lower pressure drops with higher viscosity materials at any ambient temperature
Designed and manufactured by the worldwide leader in pump technology
Quick-release bung adapter for easy drum removal without interference from hose connections
Stainless steel wetted parts for corrosion-resistance
PTFE seals for improved performance and less maintenance

Model: T2

Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Compatible Material: Polyurethane Foam, Polyurea
Cycles Per Gallon: 15.9
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 12.5
Maximum Air Inlet Pressure (kPa): 1250
Maximum Air Inlet Pressure (MPa): 1.2
Maximum Air Inlet Pressure (psi): 180
Maximum Continuous Cycle Rate (CPM): 100
Maximum Flow Rate (GPM): 5
Maximum Flow Rate (L/min): 20
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Maximum Working Pressure (bar): 28
Maximum Working Pressure (kPa): 2800
Maximum Working Pressure (MPa): 2.8
Maximum Working Pressure (psi): 405
Package Options: Bare
Pump Ratio: 2:1

$2,630.00

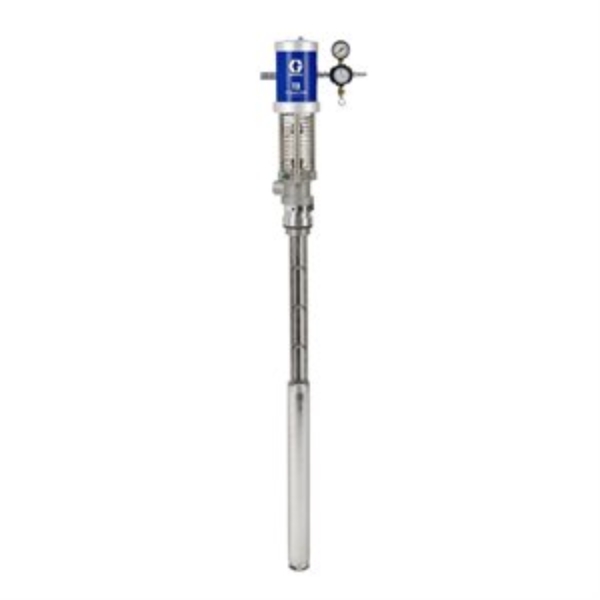

T3 PUMP, TRANSFER, 3:1

GG 26A304

T3 PUMP, TRANSFER, 3:1

Graco 26A304 T3 Supply Pump (Stainless Steel): 3:1 Fluid to Air Ratio

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.

Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor.

Model: T3
Series: Stainless Steel

Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Compatible Material: Polyurethane Foam, Polyurea
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Includes: Fluid Supply Kit, Air Hose Kit
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (MPa): 0.69
Maximum Air Inlet Pressure (psi): 100
Maximum Working Pressure (bar): 21.7
Maximum Working Pressure (kPa): 2170
Maximum Working Pressure (MPa): 2.2
Maximum Working Pressure (psi): 315
Package Options: Bare
Pump Ratio: 3:1

$2,560.00

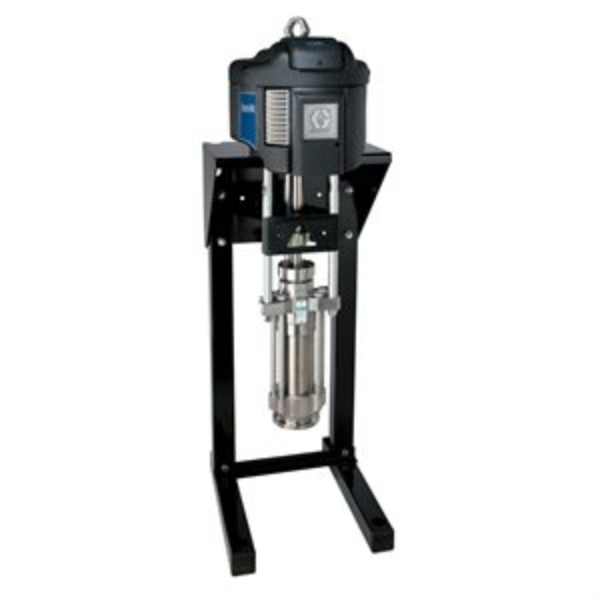

DURA-FLO PUMP, 6500/580

GG P23DSA

DURA-FLO PUMP, 6500/580

Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak

$18,590.00

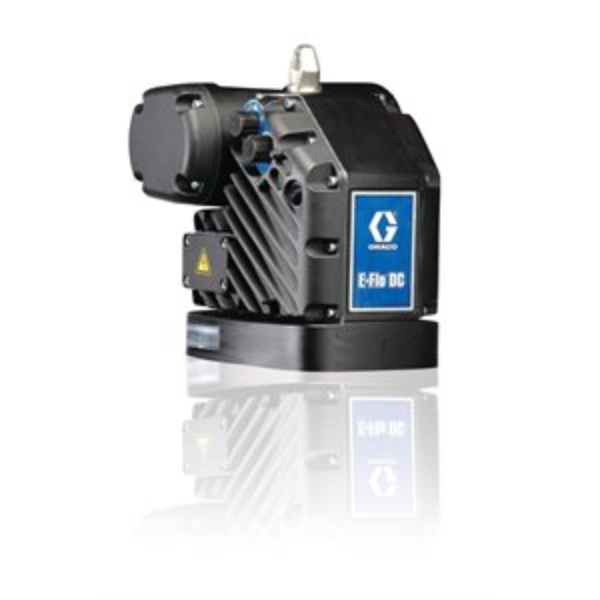

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

GG EC1142

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

Graco EC1142 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Basic, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Wall

The E-Flo DC (Dual Control) electric circulating pump has been found to be up to five times more efficient than similar sized pneumatic pumps – lowering your energy bill and saving you money

Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
Minimal pulsation at changeover provides a more consistent finish
Electric motor eliminates icing – giving you smoother pump operation and better finished product

Model: E-Flo
Series: DC 4-Ball

Application: Circulation
Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Section Type: Sealed
Includes: Basic Control, Wall Mount
Input Voltage (V ac): 250
Material: Stainless Steel
Maximum Continuous Cycle Rate (CPM): 20
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.14
Maximum Input Amperage (A): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Working Pressure (bar): 20.7
Maximum Working Pressure (kPa): 2070
Maximum Working Pressure (MPa): 2.1
Maximum Working Pressure (psi): 300
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: AC
Portable: Non-Portable
Power Rating (HP): 1

Call for pricing

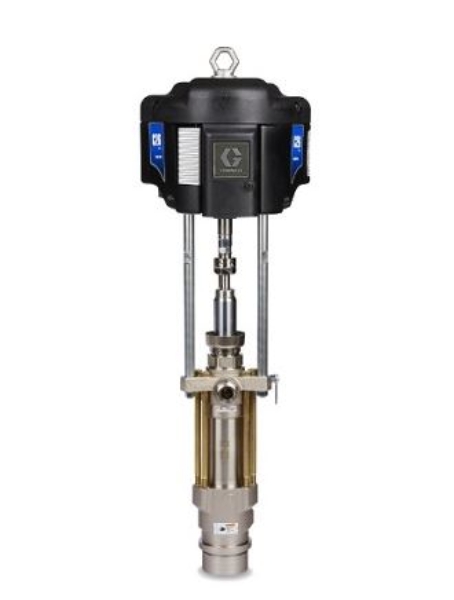

CHECK-MATE PUMP, 14:1 3400/500 CS SD

GG P14LCS

CHECK-MATE PUMP, 14:1 3400/500 CS SD

Graco P14LCS 14:1 - 500cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 3400 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
500cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 1-1/2
        Fluid Outlet Thread Gender: Male
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Collar Coupling, Nut Coupling
        Material: Carbon Steel
        Maximum Working Pressure (bar): 98
        Maximum Working Pressure (kPa): 9800
        Maximum Working Pressure (MPa): 9.8
        Maximum Working Pressure (psi): 1400
        Power Type: Pneumatic
        Pump Ratio: 14:1

$15,270.00

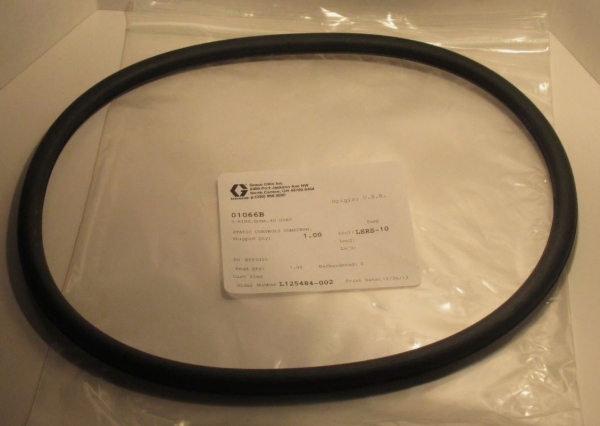

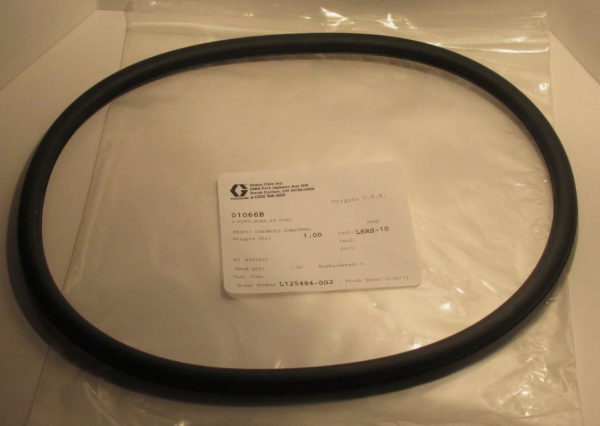

O- Ring, Buna, 40 Duro

GG 01066B

O- Ring, Buna, 40 Duro

$63.00

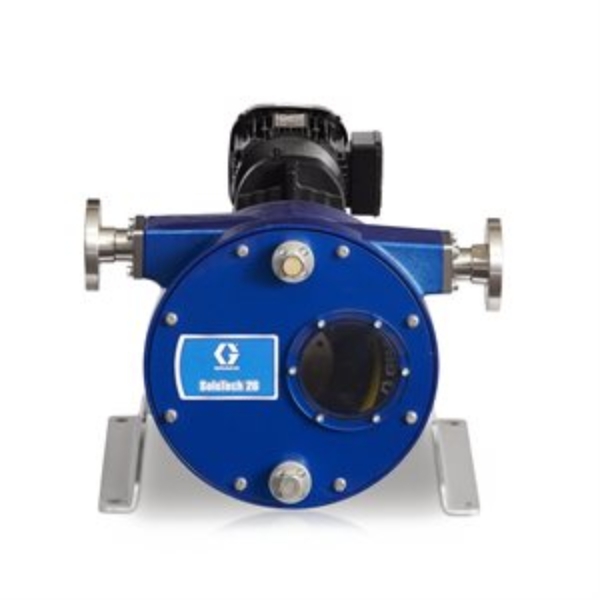

SOLOTECH ST26 PUMP, I26-HAC-EP-PV-A1-A1-0

GG 19Z079

SOLOTECH ST26 PUMP, I26-HAC-EP-PV-A1-A1-0

SoloTech™ i26 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

$11,880.00

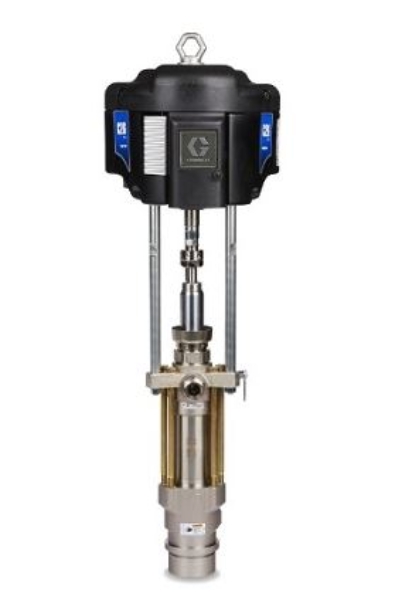

MONARK TRANSFER PUMP, 5:1

GG 902147

MONARK TRANSFER PUMP, 5:1

Graco 902147 5:1 Ratio Stainless Steel Monark Pump

Designed for high production applications, Monark pumps provide uniform and easily controlled delivery with its reliable Monark air motor.

Application: Positive displacement, 2-ball piston design. Typical Fluids handled include solvent-borne and water-borne fluids, high solids, plural component coatings, resins, stains, lacquers, varnishes, cleaning fluids, acid-catalyzed materials and high-solid coatings.

Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
Fluid return stanchion for circulation back to the pump
Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

Model: Monark

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Material: Stainless Steel
Maximum Air Consumption (SCFM): 8.2
Maximum Air Inlet Pressure (bar): 8.2
Maximum Air Inlet Pressure (kPa): 827
Maximum Air Inlet Pressure (psi): 120
Maximum Flow Rate (GPM): 2.5
Maximum Flow Rate (L/min): 9.5
Maximum Working Pressure (bar): 41
Maximum Working Pressure (kPa): 4100
Maximum Working Pressure (MPa): 4.1
Maximum Working Pressure (psi): 600
Portable: Non-Portable
Power Type: Pneumatic
Pump Ratio: 5:1

$5,170.00

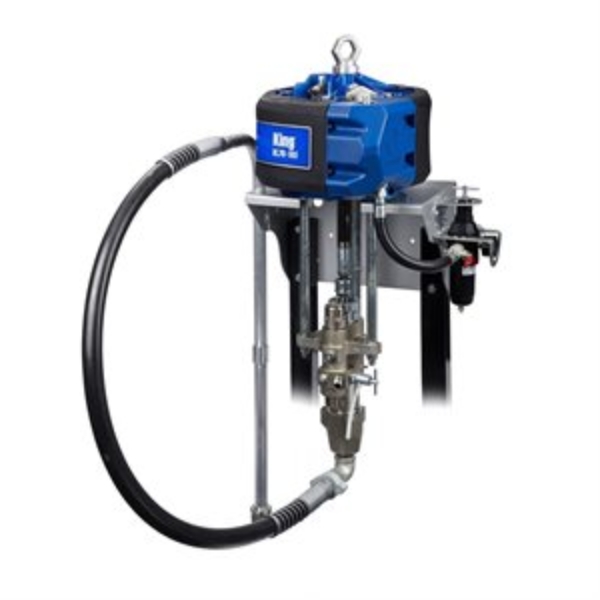

KING SPRAYER, 30:1, H-P, BF, WALL, BARE

GG K30FW0

KING SPRAYER, 30:1, H-P, BF, WALL, BARE

Graco K30FW0 King 30:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance
- Improved Icing Performance
  - Less Pulsation
    With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
    Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
  - New Air Motor
    Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
  Approved for Hazardous Locations: Yes
  Compatible Material: Protective Coating
  Control Type: Fixed Ratio
  Convertible: Non-Convertible
  Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
  Fluid Inlet Size (in): 1-1/4
  Fluid Inlet Size (mm): 31.75
  Fluid Inlet Thread Type: NPT
  Fluid Outlet Size (in): 1/2
  Fluid Outlet Size (mm): 12.7
  Frame Configuration: Wall Mount
  Gun Model: No Applicator
  Includes: Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit
  Lower Type: Integrated Filter
  Material Application: Paints, Primers
  Maximum Air Inlet Pressure (psi): 150
  Maximum Fluid Working Pressure (psi): 3150
  Maximum Sound Pressure Level (dB(A)): 81.48
  Maximum Tip Size (in): Variable
  Maximum Working Pressure (bar): 217
  Maximum Working Pressure (kPa): 21700
  Maximum Working Pressure (MPa): 21.7
  Maximum Working Pressure (psi): 3150
  Motor Type: XL High Performance
  Number of Guns: 0
  Package Options: Air Controls, Siphon Kit

$10,640.00

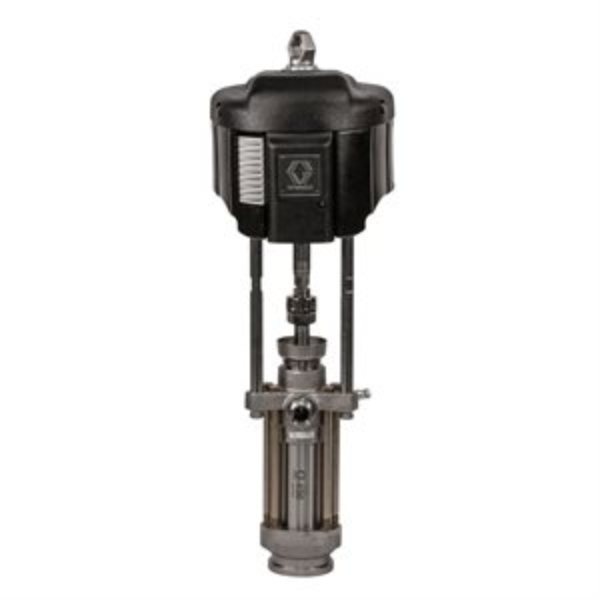

DURA-FLO PUMP, 3400/430

GG P15CSS

DURA-FLO PUMP, 3400/430

Graco P15CSS 15:1 - 430cc Dura-Flo Pump with NXT 34000 Air Motor, Severe Duty Carbon Steel Construction

Model: Dura-Flo

$19,480.00

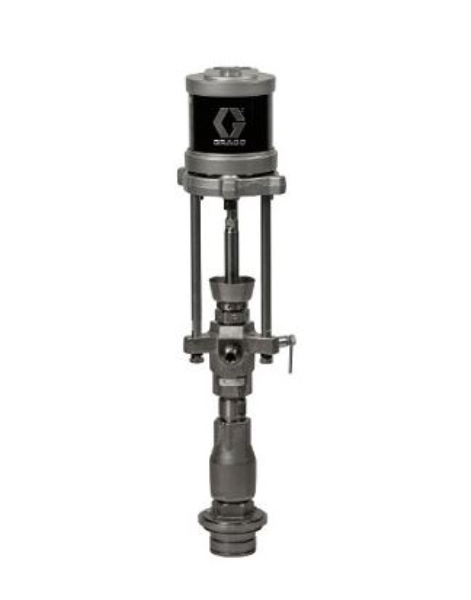

CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD

GG P20LCS

CHECK-MATE PUMP, 20:1 700/060 LW NS CS SD

Graco P20LCS 20:1 - 60cc Check-Mate Pump with NXT 700 Air Motor, Severe Duty Carbon Steel Construction

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 700 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Male
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Washer Lock (6), Screw
        Material: Carbon Steel
        Maximum Working Pressure (bar): 138
        Maximum Working Pressure (kPa): 13800
        Maximum Working Pressure (MPa): 13.8
        Maximum Working Pressure (psi): 2000
        Power Type: Pneumatic
        Pump Ratio: 20:1

$6,860.00

DURA-FLO PUMP, 6500/290

GG P45LSE

DURA-FLO PUMP, 6500/290

Graco P45LSE Dura-Flo NXT 2-Ball Piston Pump, 45:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Dura-Flo
Series: 2-Ball

Air Inlet Size (in): 0.7506
Air Inlet Size (mm): 19.05
Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.41
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 164
Maximum Working Pressure (kPa): 16400
Maximum Working Pressure (MPa): 16.4
Maximum Working Pressure (psi): 2380
Motor Type: Low Noise NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 45:1

$15,600.00

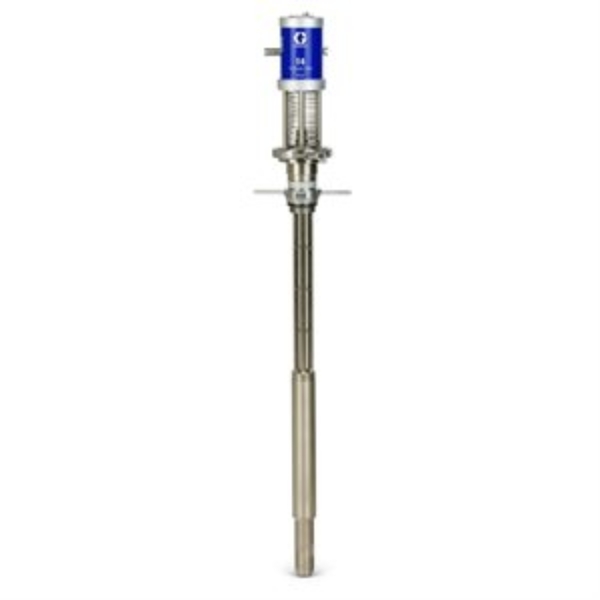

T4 PUMP, CS

GG 26D001

T4 PUMP, CS

T4 Supply Pump (Carbon Steel) 3:1 Fluid to Air Ratio Transfer Pumps are required to move A and B materials to the Reactor® Spray Systems. The T4 Transfer Pump combines Graco’s proven Merkur® air-motor and carbon steel lower. The T4 is a 3:1 ratio pump with ProConnect technology – allowing you to quickly connect and disconnect the air motor from the pump lower. Quick Transfer Between Drums – quickly change to a new drum of material without the mess of dripping chemical by using multiple pump lowers. Easier to Maneuver – easily transfer the T4 pump between drums by quickly disconnecting the air motor from the lower before transferring. This makes the pump lighter weight and reduces the necessary ceiling height of your rig. Eliminate Downtime – get up and running quickly when your pump lower requires maintenance by having a spare pump lower that can easily be installed.

$2,090.00

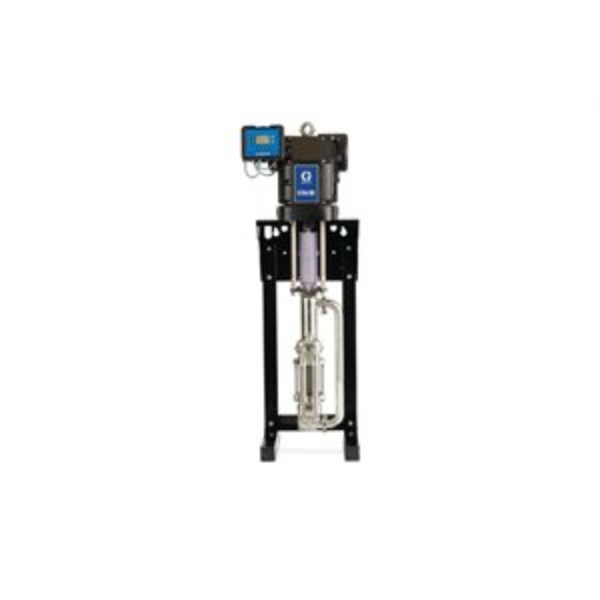

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

GG EC3441

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings Minimal pulsation at changeover provides a more consistent finish Electric motor eliminates icing – giving you smoother pump operation and better finished product Quiet electric motor improves your work environment allowing you to remain near the pump for longer periods of time

$30,570.00

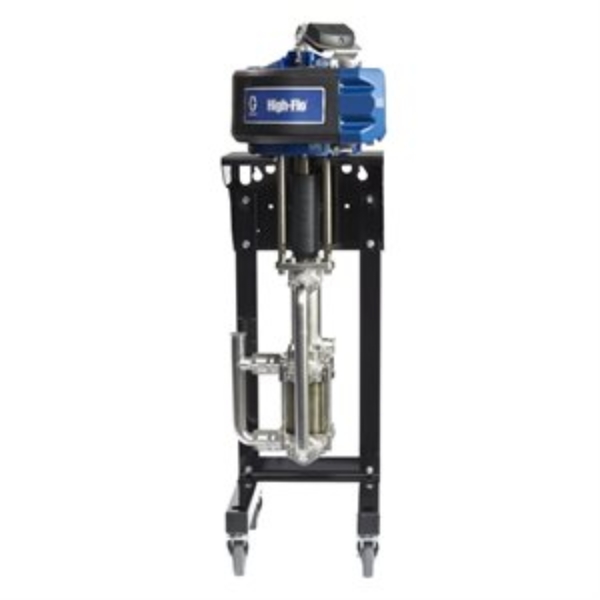

HIGH-FLO PUMP, 4000, LN, SLD, TRI

GG JS17A8

HIGH-FLO PUMP, 4000, LN, SLD, TRI

High-Flo 4-Ball Pump, SST, 1.7:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints De-icing controls eliminate stalling Rugged body armor, won’t rust or dent

$29,220.00

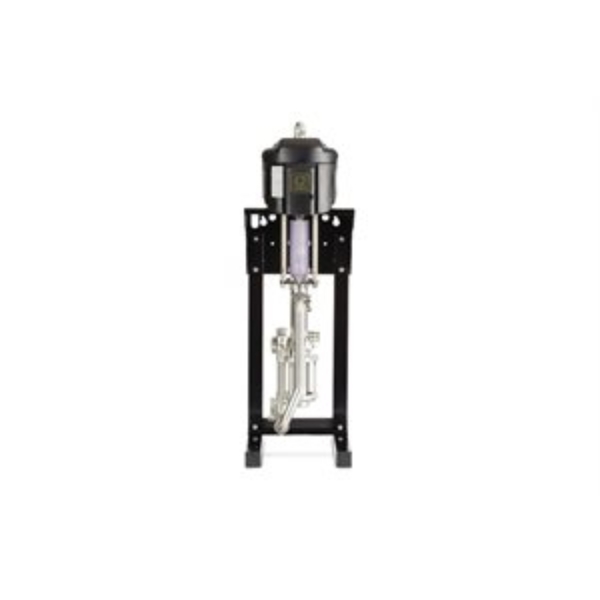

HIGH-FLO PUMP, 2200/1000, LOW DT, SLD, TRI

GG JS40M8

HIGH-FLO PUMP, 2200/1000, LOW DT, SLD, TRI

Graco JS40M8 High-Flo 4-Ball Pump, SST, 4:1, Low Noise Exhaust, DataTrak, Sealed SST Lower, Tri-Clamp Fittings, Ultralife Rod/Cylinder

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
Rugged body armor, won’t rust or dent
DataTrak tracks material usage, monitors and protects your pump

Model: High-Flo
Series: 4-Ball

Application: Circulation
Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Section Type: Sealed
Includes: Stainless Steel Pump, Low Noise Exhaust, DataTrak Monitor, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 20
Maximum Flow Rate (GPM): 16.9
Maximum Flow Rate (L/min): 63.97
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 28
Maximum Working Pressure (kPa): 2800
Maximum Working Pressure (MPa): 2.8
Maximum Working Pressure (psi): 400
Motor Type: Low Noise NXT with DataTrak
Portable: Non-Portable
Pump Ratio: 4:1

$16,290.00

KING SPRAYER, 30:1, H-P, BF, WALL, COMP

GG K30FW1

KING SPRAYER, 30:1, H-P, BF, WALL, COMP

Graco K30FW1 King 30:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance
- Improved Icing Performance
  - Less Pulsation
    With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
    Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
  - New Air Motor
    Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
  Approved for Hazardous Locations: Yes
  Compatible Material: Protective Coating
  Control Type: Fixed Ratio
  Convertible: Non-Convertible
  Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
  Fluid Inlet Size (in): 1-1/4
  Fluid Inlet Size (mm): 31.75
  Fluid Inlet Thread Type: NPT
  Fluid Outlet Size (in): 1/2
  Fluid Outlet Size (mm): 12.7
  Frame Configuration: Wall Mount
  Gun Model: XTR-5
  Includes: Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit, Hose, Gun
  Lower Type: Integrated Filter
  Material Application: Paints, Primers
  Maximum Air Inlet Pressure (psi): 150
  Maximum Fluid Working Pressure (psi): 3150
  Maximum Sound Pressure Level (dB(A)): 81.48
  Maximum Tip Size (in): Variable
  Maximum Working Pressure (bar): 217
  Maximum Working Pressure (kPa): 21700
  Maximum Working Pressure (MPa): 21.7
  Maximum Working Pressure (psi): 3150
  Motor Type: XL High Performance
  Number of Guns: 1

$11,460.00

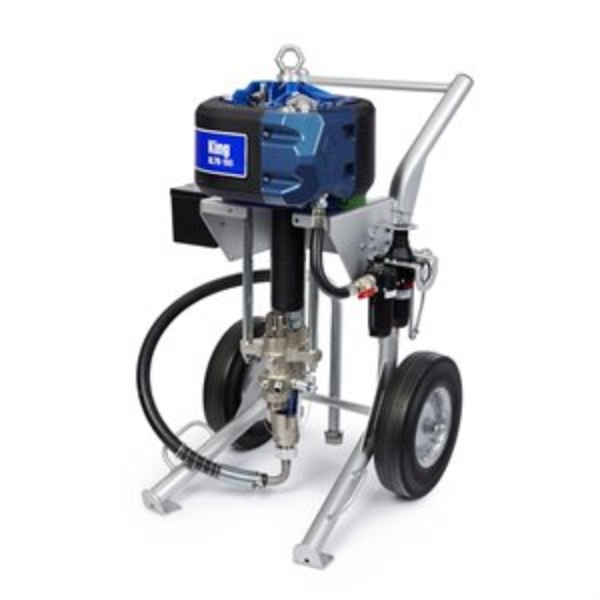

KING SPRAYER, 45:1, H-P, NF, HD, BARE

GG K45NH0

KING SPRAYER, 45:1, H-P, NF, HD, BARE

King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance

This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.

Improved Icing Performance

The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%

Less Pulsation

With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
Eliminating the "wink" in your pattern - it is a difference you will feel.

New MaxLife Pump Lowers

Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.

New Air Motor

Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

$11,790.00

KING SPRAYER, 45:1, H-P, NF, HD, COMP

GG K45NH1

KING SPRAYER, 45:1, H-P, NF, HD, COMP

King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance

This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.

Improved Icing Performance

The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%

Less Pulsation

With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
Eliminating the "wink" in your pattern - it is a difference you will feel.

New MaxLife Pump Lowers

Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.

New Air Motor

Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

$12,630.00

DURA-FLO PUMP, 3400/580

GG P12LSA

DURA-FLO PUMP, 3400/580

Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

$16,510.00

DURA-FLO PUMP, 6500/580

GG P23ESA

DURA-FLO PUMP, 6500/580

Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE Packings

$18,970.00

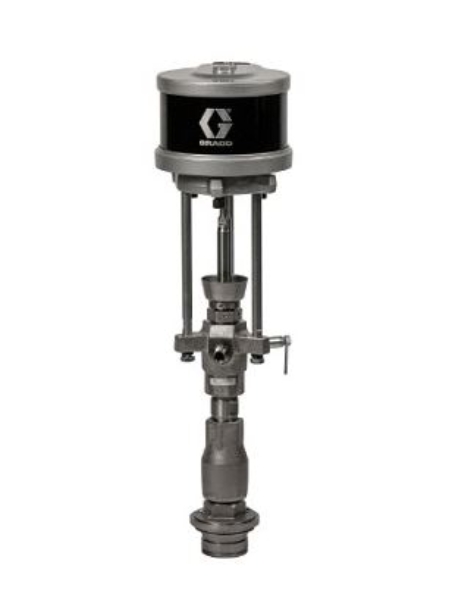

CHECK-MATE PUMP, 61:1 1800/060 CS SD

GG P61LCS

CHECK-MATE PUMP, 61:1 1800/060 CS SD

Graco P61LCS 61:1 - 60cc Check-Mate Pump with NXT 1800 Air Motor, Severe Duty Carbon Steel Construction

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 1800 Air Motor
Low Noise
Modular design for easier maintenance
Highest technology air motor on the market
60cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 3/4
        Fluid Outlet Thread Gender: Male
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Washer Lock (6), Screw
        Material: Carbon Steel
        Maximum Working Pressure (bar): 421
        Maximum Working Pressure (kPa): 42100
        Maximum Working Pressure (MPa): 42.1
        Maximum Working Pressure (psi): 6100
        Power Type: Pneumatic
        Pump Ratio: 61:1
