GG EC1142
E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, WALL

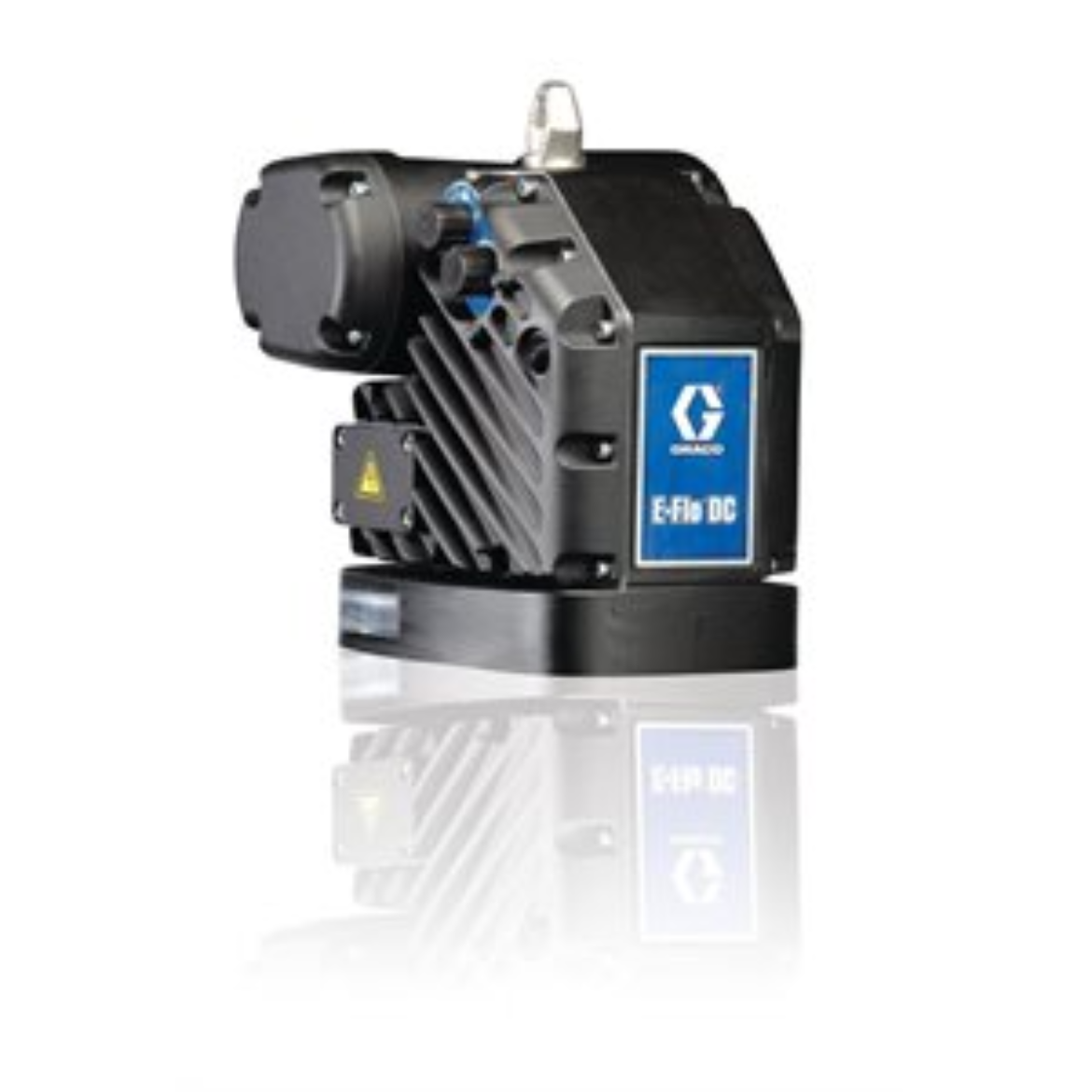

Graco EC1142 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Basic, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Wall
The E-Flo DC (Dual Control) electric circulating pump has been found to be up to five times more efficient than similar sized pneumatic pumps – lowering your energy bill and saving you money
- Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
- Minimal pulsation at changeover provides a more consistent finish
- Electric motor eliminates icing – giving you smoother pump operation and better finished product
- Model: E-Flo
- Series: DC 4-Ball
- Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Basic Control, Wall Mount
- Input Voltage (V ac): 250
- Material: Stainless Steel
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Input Amperage (A): 20
- Maximum Operating Temperature (°C): 40
- Maximum Operating Temperature (°F): 104
- Maximum Working Pressure (bar): 20.7
- Maximum Working Pressure (kPa): 2070
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
