Ultra-Lite 6000 Flow Gun

GG 235628

ULTRA-LITE 6000 GUN, FLOW

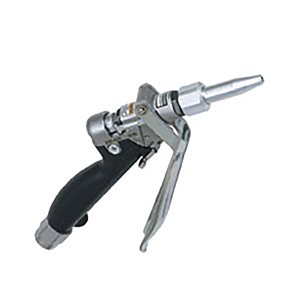

Graco 235628 Ultra-Lite 6000 Flow Gun with Ball End Valve Needle

The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 6000 psi (414 bar, 41.4 MPa).
• 150° head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs
• Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.

• Model: Ultra-Lite
• Series: 6000

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Connection Type: Threaded, Flange

• Gun Activation: Manual

• Inlet Size (in): 1/2

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 415
• Maximum Working Pressure (kg/cm²): 422
• Maximum Working Pressure (kPa): 41500
• Maximum Working Pressure (MPa): 41.5
• Maximum Working Pressure (psi): 6000

• Nozzle Size (cm): 0.483
• Nozzle Size (in): 0.19
• Nozzle Size (mm): 4.826

• Number of Outputs: 1
