GG GCP2R0
P2 GUN

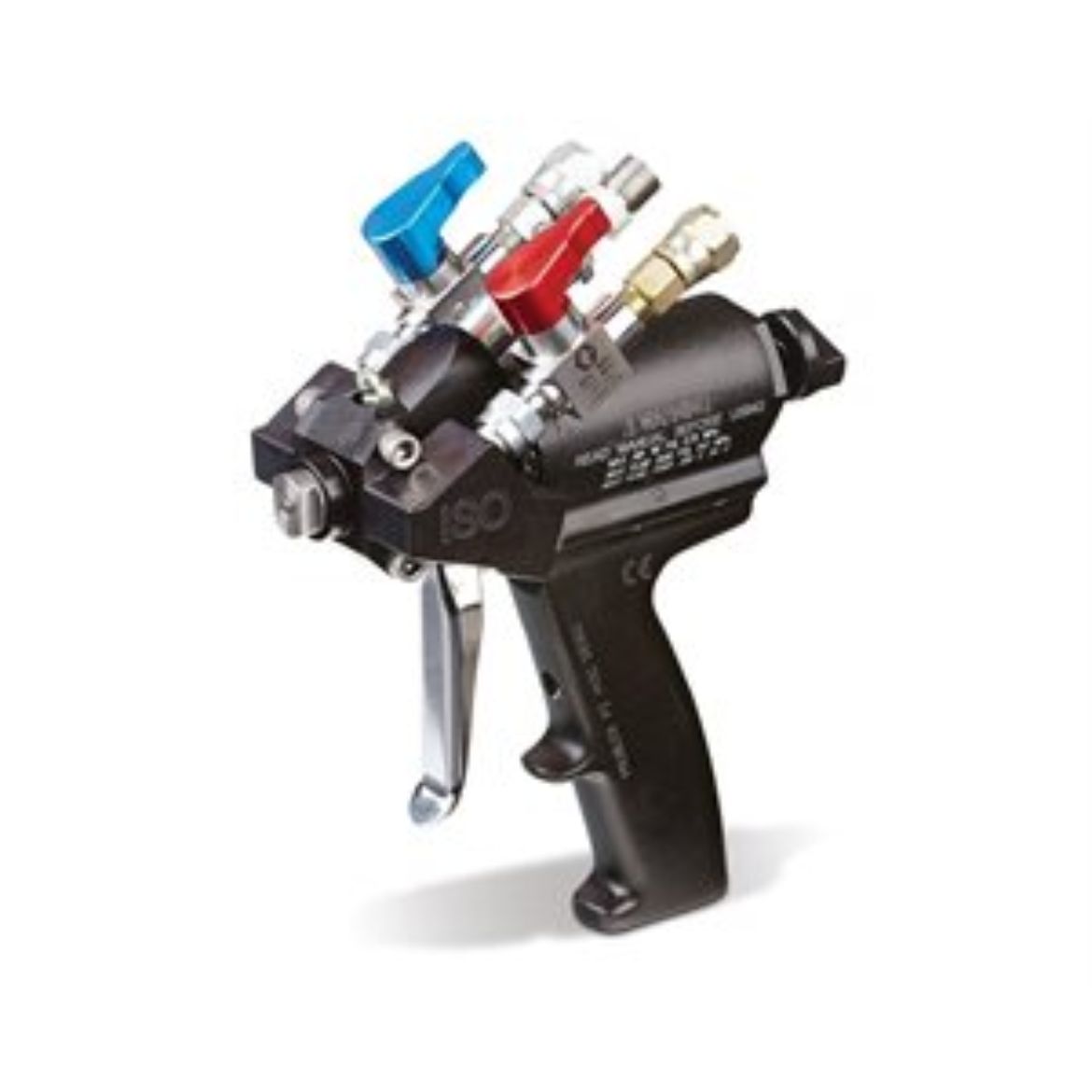

Graco GCP2R0 Probler P2 Gun Assembly with 00 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.
- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Model: P2
- Series: Standard
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment
- Gun Activation: Manual
- Gun Included: 1
- Gun Series: Standard
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24.1
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Overall Height (cm): 12.1
- Overall Height (in): 4.75
- Overall Height (mm): 121
- Overall Length (cm):
