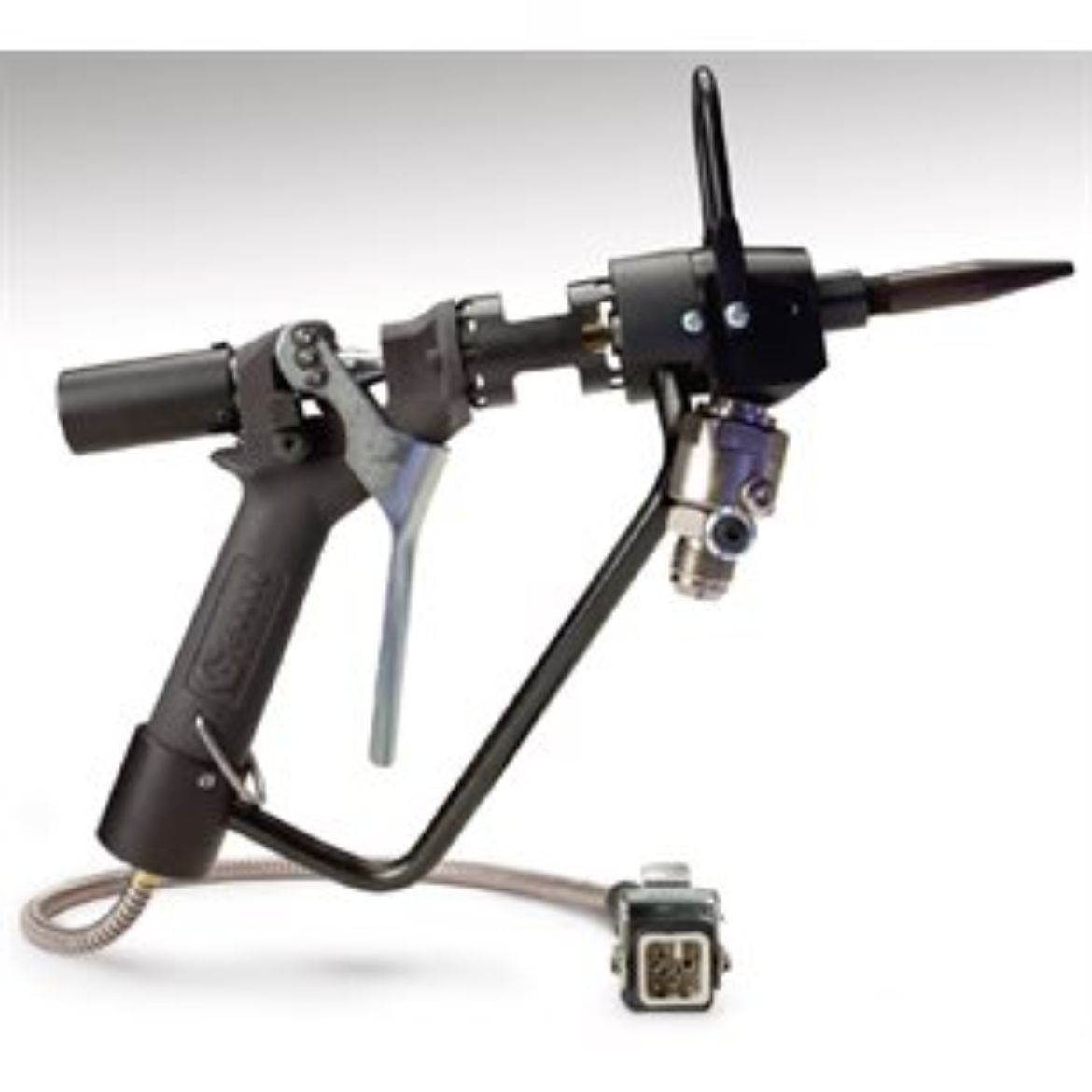

Manual Heated Dispense Gun

GG 249514

THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED

Graco 249514 Therm-O-Flo Bottom Feed Manual Gun, 240V

Hot melt dispense gun provides ergonomic, easy-trigger actuation for high pressure, high flow sealant and adhesive applications.

• Provides accurate dispense control for Therm-O-Flow Systems

  Provides precise proportional control and variable dispense volume with unique tapered needle valve design

  Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control

  Rugged construction – durable, lightweight anodized aluminum body

  Ergonomic, easy-trigger actuation

  Designed for easy service – minimal maintenance and downtime

  Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)

  • Precise temperature control from PID control panel
  • Piston-actuated ball and seat design for positive shut off
  • Rugged all metal construction




  • Model: Therm-O-Flow
  • For Use With: Therm-O-Flow
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 2450
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500
  • Maximum Fluid Pressure (bar): 245
  • Maximum Fluid Pressure (kPa): 2450
  • Maximum Fluid Pressure (MPa): 24.5
  • Maximum Fluid Pressure (psi): 3500
