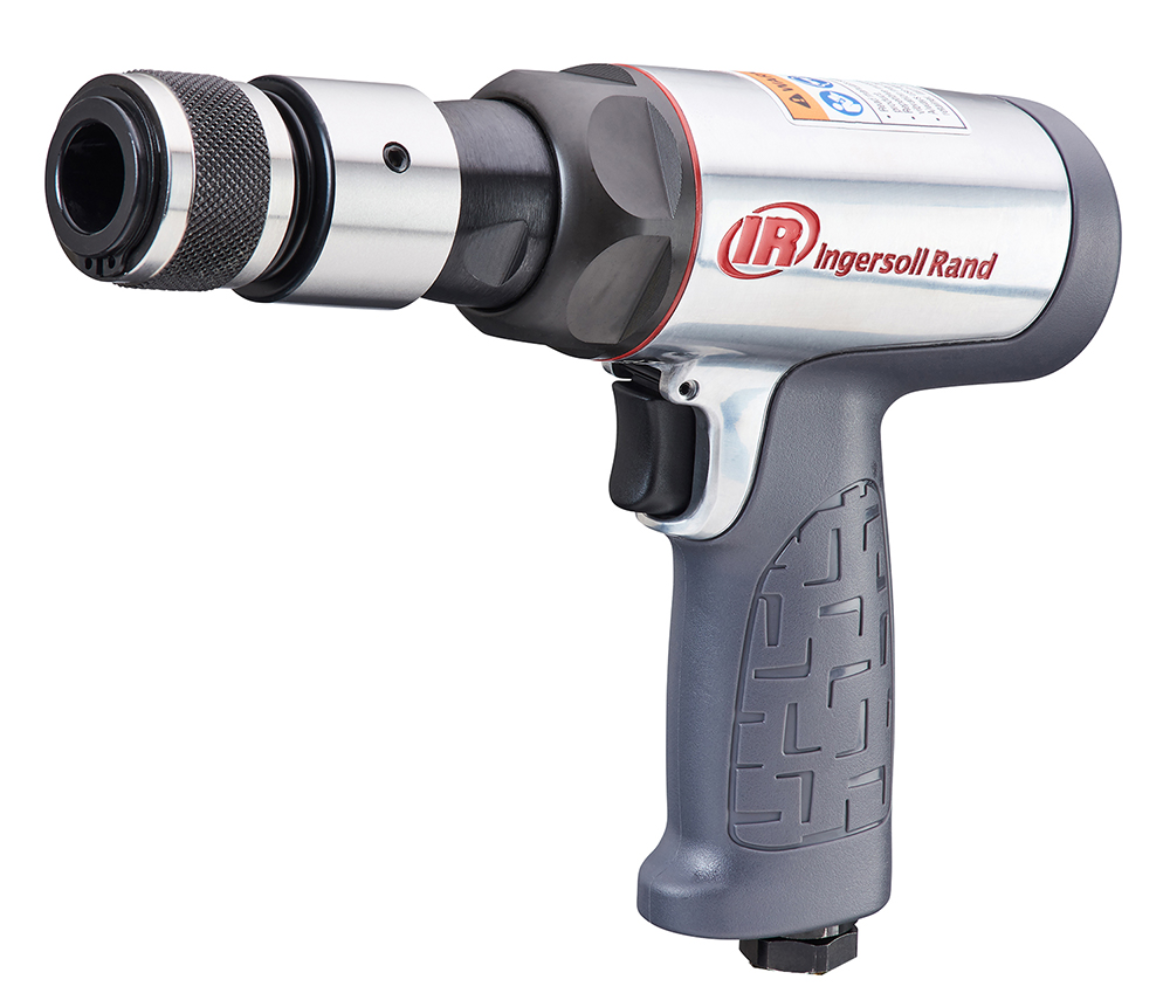

    Short Barrel Hammer

    IR 123MAX

    Vibration Reduced Air Hammer, 3530 BPM, 2-5/8" Stroke, Round Shank

    Description: Great for front-end jobs, general bolt cutting, pin driving, and body shearing work, this short barreled hammer is ready to deliver the punch you need.

    Features And Benefits:

    • Increased Power: The 123MAX hammer has a 15% impact force increase over standard air hammers.
    • Reduced Vibration: The 123MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
    • Comfort Grip: Shock reduction and anti-slip grip.
    • Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
    • Durable: This hammer can withstand anything, including repeated drops and harsh conditions. No matter where you take it, it will perform like new.
    • Swivel Air Inlet: Prevents hose twisting during use.
    • Optimized for the vehicle repair industry, heavy trucks, and MRO.

    Product Application and Uses:

    Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting

    • Includes: Tool, Quick-change Retainer, Manuals
    • Actuation/Throttle Type/Switch Type: Trigger
    • Air Consumption @ Load (cfm): 24.1
    • Air Consumption @ Load (l/min): 682.4
    • Air Inlet: 1/4" NPT
    • Air Pressure (psi): 90
    • Blows per Min: 3530
    • Bore Diameter (in): 3/4
    • Color: Grey
    • Configuration/Handle Type: Pistol Grip
    • Duty Rating: Industrial Duty
    • Handle Material: Composite
    • Max Pressure (bar): 6.2
    • Min Hose Size (in): 3/8
    • Power Source: Air Powered
    • Product Length (in): 7.2
    • Product Width (in): 2
    • Product Height (in): 7.2
    • Product Weight (lb): 3.9
    • Retainer Type: Quick Change
    • Shank SIze (in): .401
    • Shank Type: Round
    • Sound Pressure/Power Db(A): 95 / 106
    • Special Features: Vibration reduced
    • Standards/Certifications: Ce, Eac
    • Stroke Length (in): 2.63
    • Vibration Level (m/s2): 5.9
    • Warranty: 1-year
    • Accessories: 401B07
    • Accessories: 401B09
    • Accessories: 401FC347
    • Accessories: 401MP7
    • Accessories: 9500
    • Accessories: 9510
    • Complete Tool Kits: 123MAXK
    • Lubrication: 10G
    • Lubrication: 10P
    • Lubrication: 10Z4
    • Parts: 122MAX-4A
    • Parts: 9510
    SKU: IR 123MAX
    Availability:
    Price: $184.24
