GG 236449
REGULATOR, PRESS, FLUID

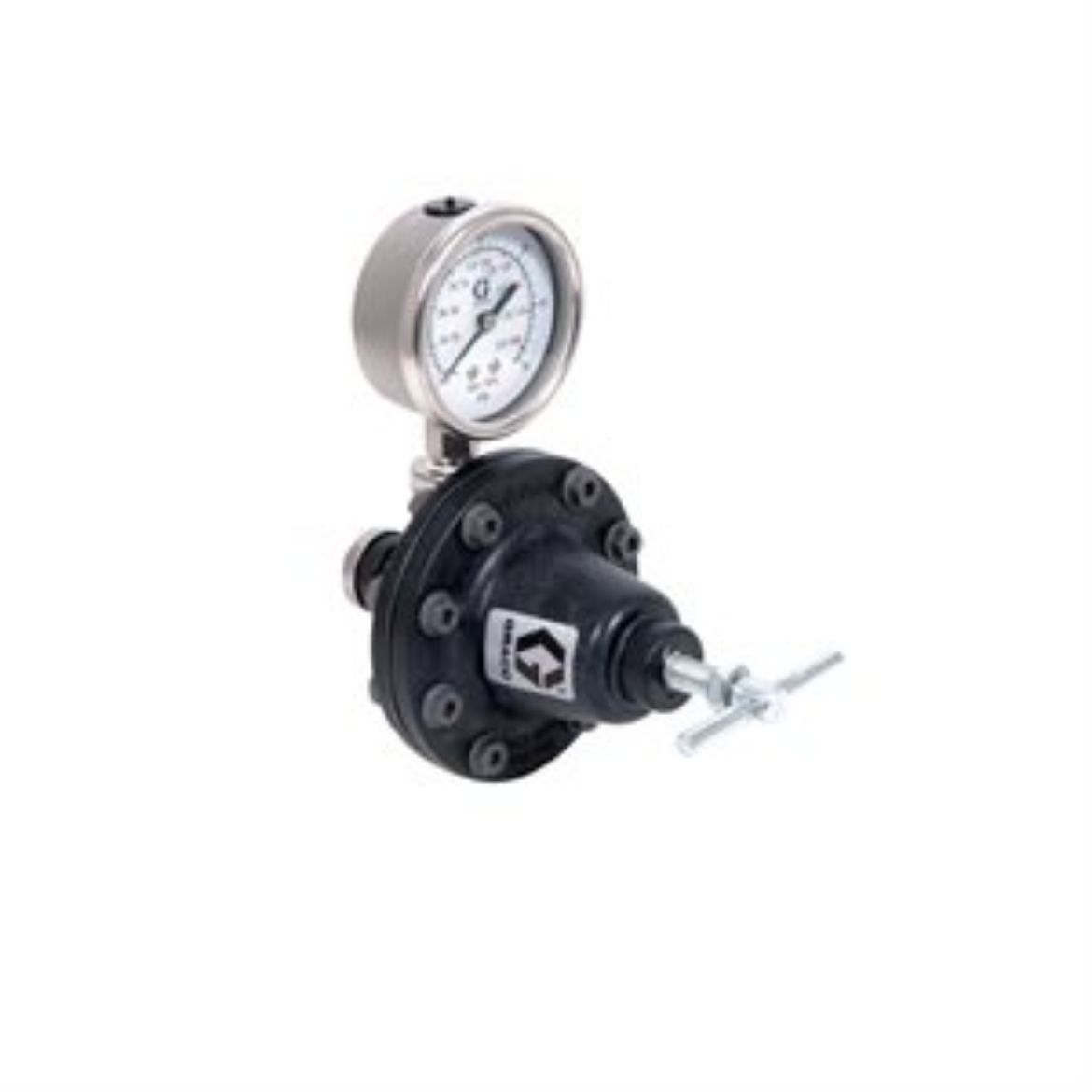

Graco 236449 Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves
- Lightweight composite material is compatible with waterborne materials
- PTFE, stainless steel seat, and carbide ball provide wear resistance
- Pressure adjustment key with locking mechanism protects production settings
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Includes: Gauge
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Maximum Flow Rate (GPM): 0.5
- Maximum Flow Rate (L/min): 1.89
- Maximum Regulated Pressure (bar): 2.1
- Maximum Regulated Pressure (kPa): 210
- Maximum Regulated Pressure (MPa): 0.2
- Maximum Regulated Pressure (psi): 30
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Minimum Regulated Pressure (bar): 0.2
- Minimum Regulated Pressure (kPa): 20
- Minimum Regulated Pressure (MPa): 0.02
- Minimum Regulated Pressure (psi): 3
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
