B/P Regulator,3/8in,SS,5-180 psi

GG 236770

REGULATOR, BACK PRESSURE

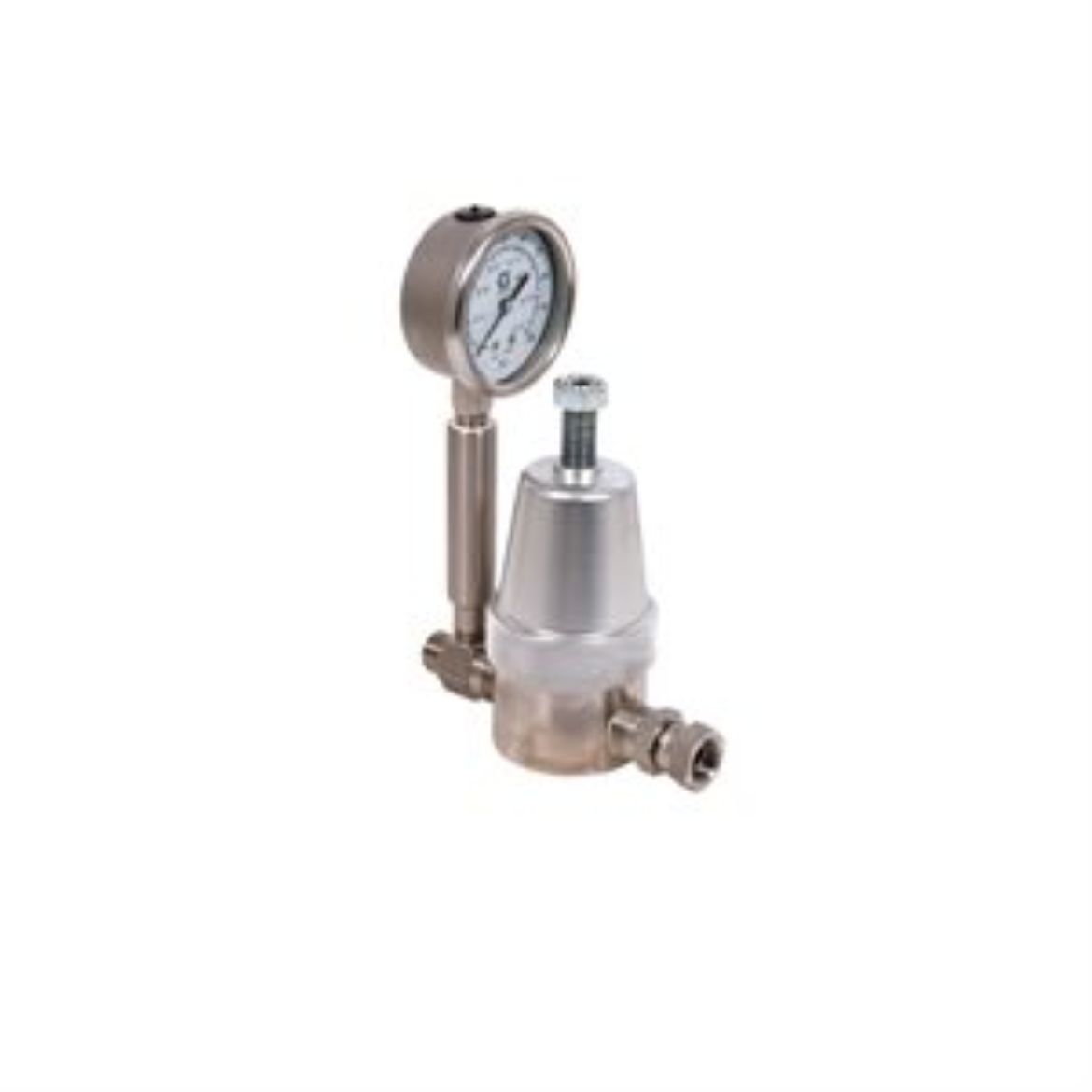

Graco 236770 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, SST, Manual, 3/8 (m) x 3/8 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Compact and lightweight design saves space and reduces payload for small circulation systems
• Air operated model available for automated control, Conversion kit (237448)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPSM

• Maximum Flow Rate (GPM): 4.3
• Maximum Flow Rate (L/min): 16.28

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 30
• Minimum Regulated Pressure (MPa): 0.03
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPSM
