Torque Tester

STR 10692

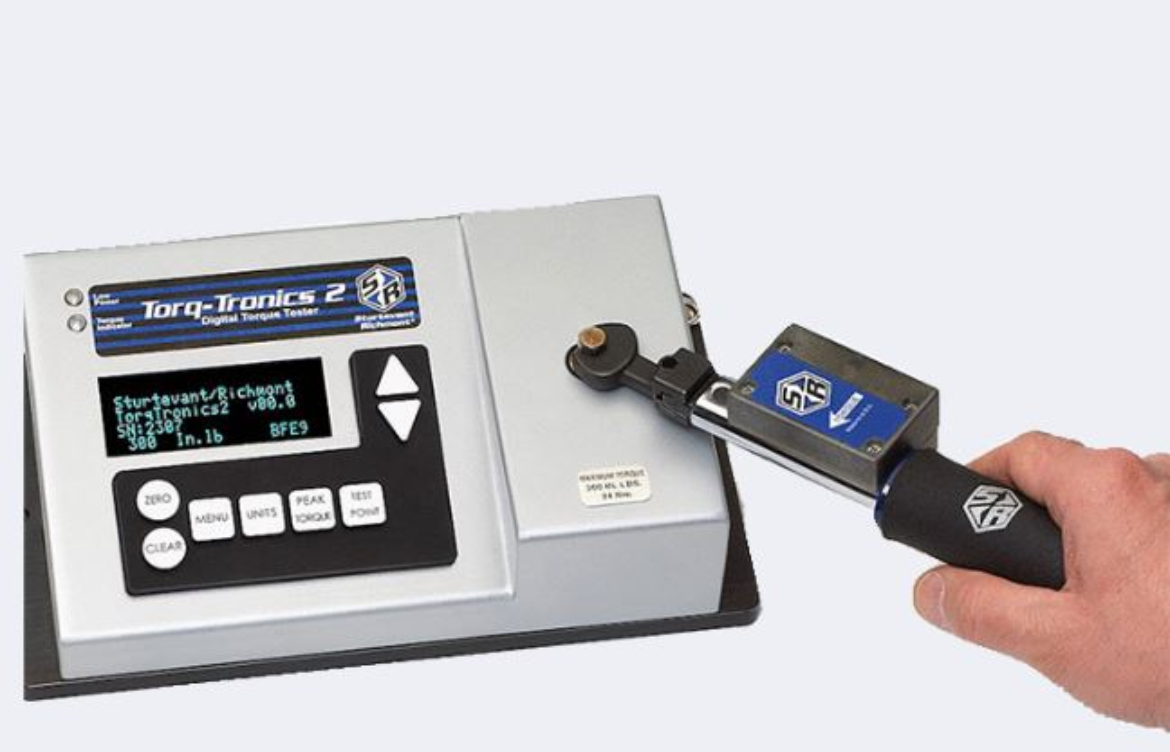

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870779
