Endura-Flo Pump,3:1 Aodd,150,Npt,Std

GG 25M740

ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, STD

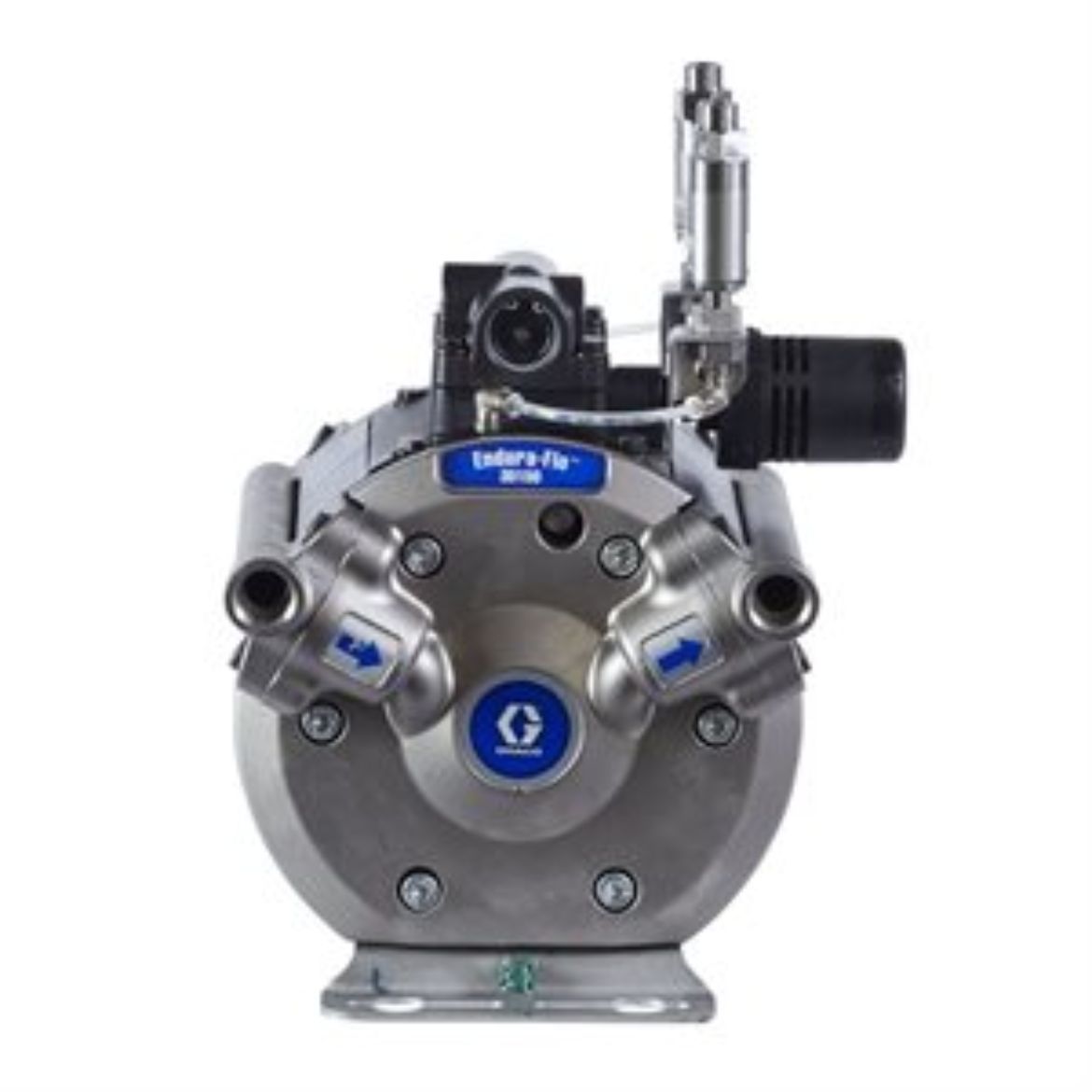

Graco 25M740 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 3D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Overall Height (in): 12.23

• Power Source: Air

• Pump Ratio: 3:1
