Check-Mate Supply Unit,20:1,0 Volt,S20,20L

GG CM7A3B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

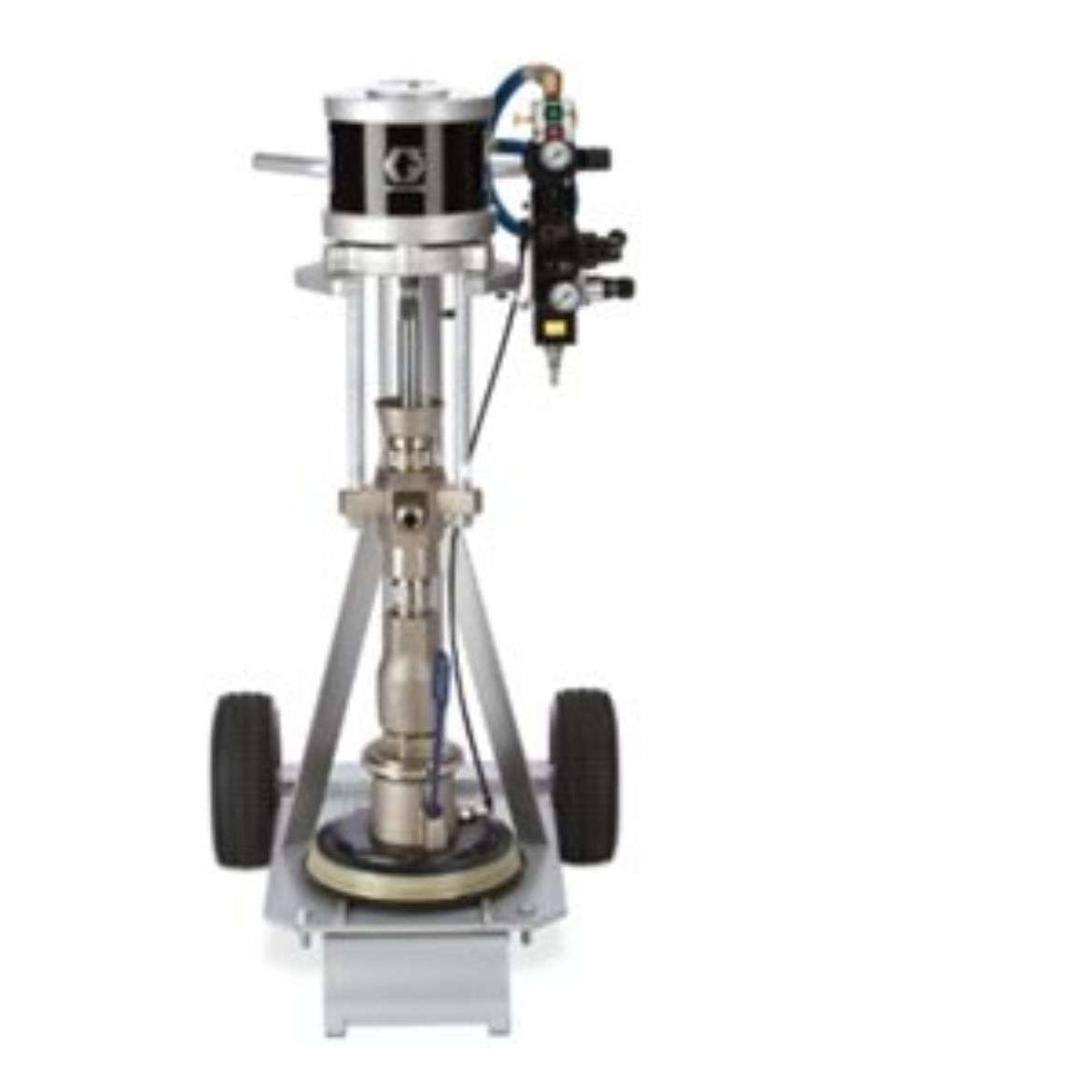

Graco CM7A3B 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
