Gun, Silver,Fine Finish

GG 235462

GUN, SILVER, FINE FINISH

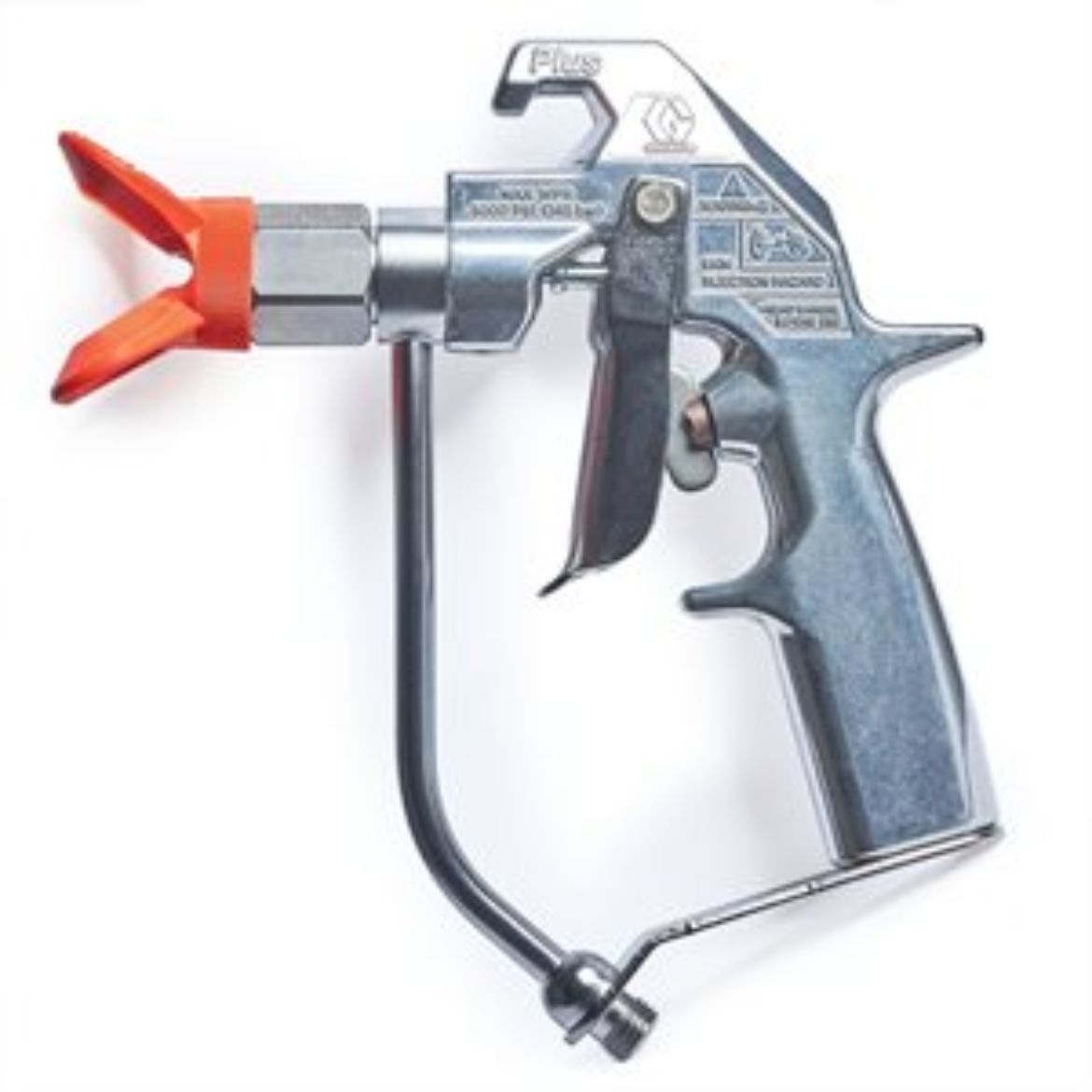

Graco 235462 Silver Plus Airless Spray Gun, 2 Finger Trigger, Fine Finish Flat Tip

The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Fine Finish Flat Tip Guard.

• Rugged Design
  • Durable forged aluminum withstands harsh work environments
  • Lighter weight than competitive guns Polished body is easy to clean
• Exclusive Needle Design
  • Factory set needle needs no trigger adjustments
  • Guaranteed for life against breakage
  • Maximum performance and long life
• Stainless Steel Fluid Tube
  • Fluid flows directly to the tip through the gun fluid tube
  • Provides the ability to spray heavier materials
  • Including high solid coatings and mastics

• Model: Silver Plus

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Body Material: Aluminum

• Component A Inlet Size (cm): 0.635

• Component A Inlet Size (in): 1/4
• Component A Inlet Size (mm): 6.35
• Component A Inlet Thread Type: NPSM
• Component Type: Single Component

• Fluid Orifice Size (cm): 0.094
• Fluid Orifice Size (in): 0.037
• Fluid Orifice Size (mm): 0.94

• For Use With: High Pressure Application

• Gun Activation: Manual
• Gun Type: Airless Gun

• Includes: Fine Finish Flat Tip Guard

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Purge Method: Liquid
