Check-Mate Supply Unit,68:1,6.5 Ram,200L

GG CM2L79

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

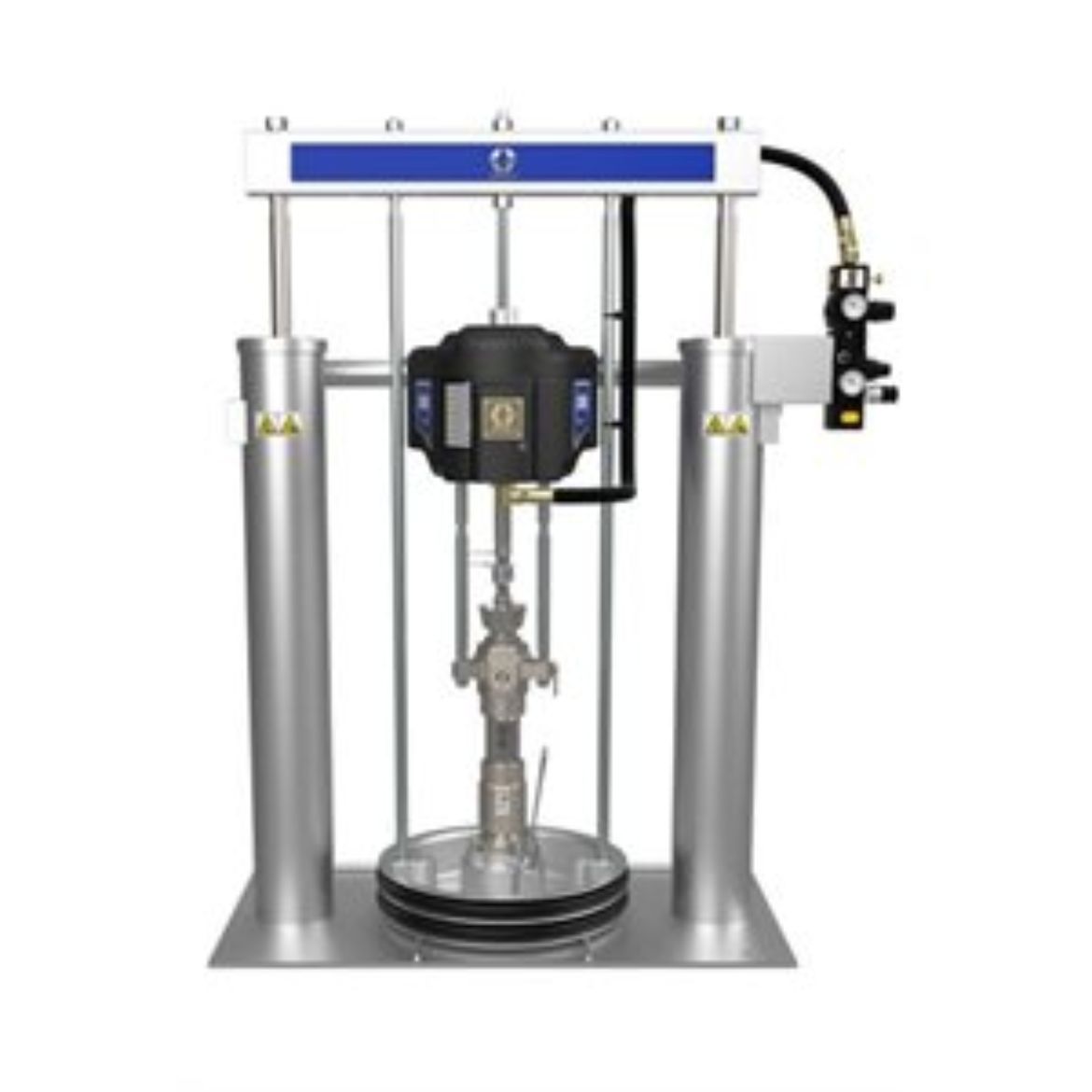

Graco CM2L79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200s

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Height (cm): 266.5
• Maximum Height (ft): 8.74
• Maximum Height (in): 104.9
• Maximum Height (m): 2.66
• Maximum Height (mm): 2665

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 434
• Maximum Working Pressure (kPa): 43400
• Maximum Working Pressure (MPa): 43.4
• Maximum Working Pressure (psi): 6200

• Minimum Height (cm): 178.5
• Minimum Height (ft): 5.86
• Minimum Height (in): 70.3
• Minimum Height (m): 1.79
• Minimum Height (mm): 1785

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 121.9
• Overall Width (in): 48
• Overall Width (mm): 1219

• Power Type: Pneumatic

• Pump Ratio: 68:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
