GG 24Z834
T3 PUMP, CS

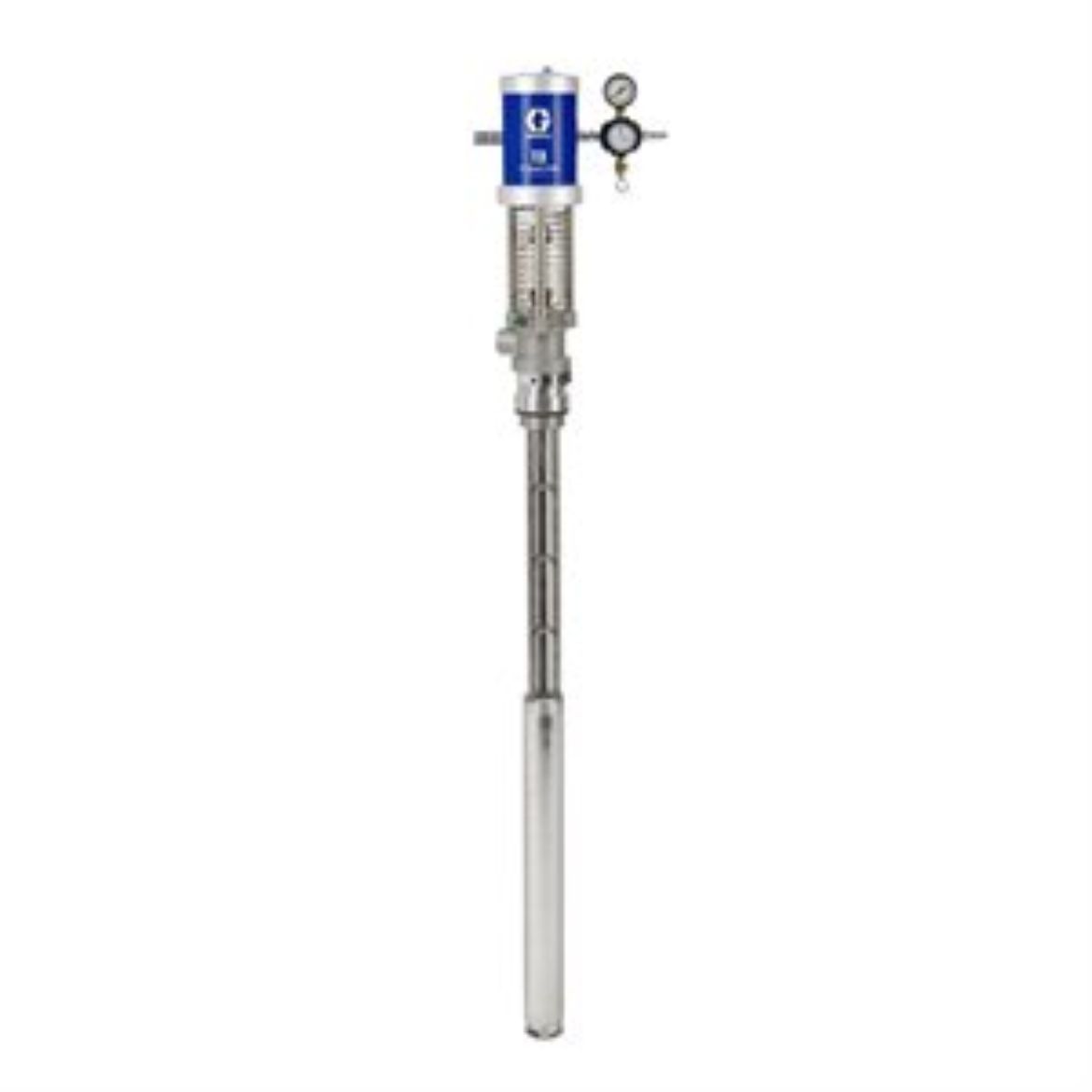

Graco 24Z834 T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio
Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco's proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.
- Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
- More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
- Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching
is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical
reversing mechanism in the air-motor
- Model: T3
- Series: Carbon Steel
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane Foam, Polyurea
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (MPa): 0.69
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 4.5
- Maximum Flow Rate (L/min): 17.03
- Maximum Operating Temperature (°C): 88
- Maximum Operating Temperature (°F): 190
- Maximum Working Pressure (bar): 21.7
- Maximum Working Pressure (kPa): 2170
- Maximum Working Pressure (MPa): 2.2
- Maximum Working Pressure (psi): 315
