GG 24V312
ELEVATOR, SANITARY, MOBILE, 6:1

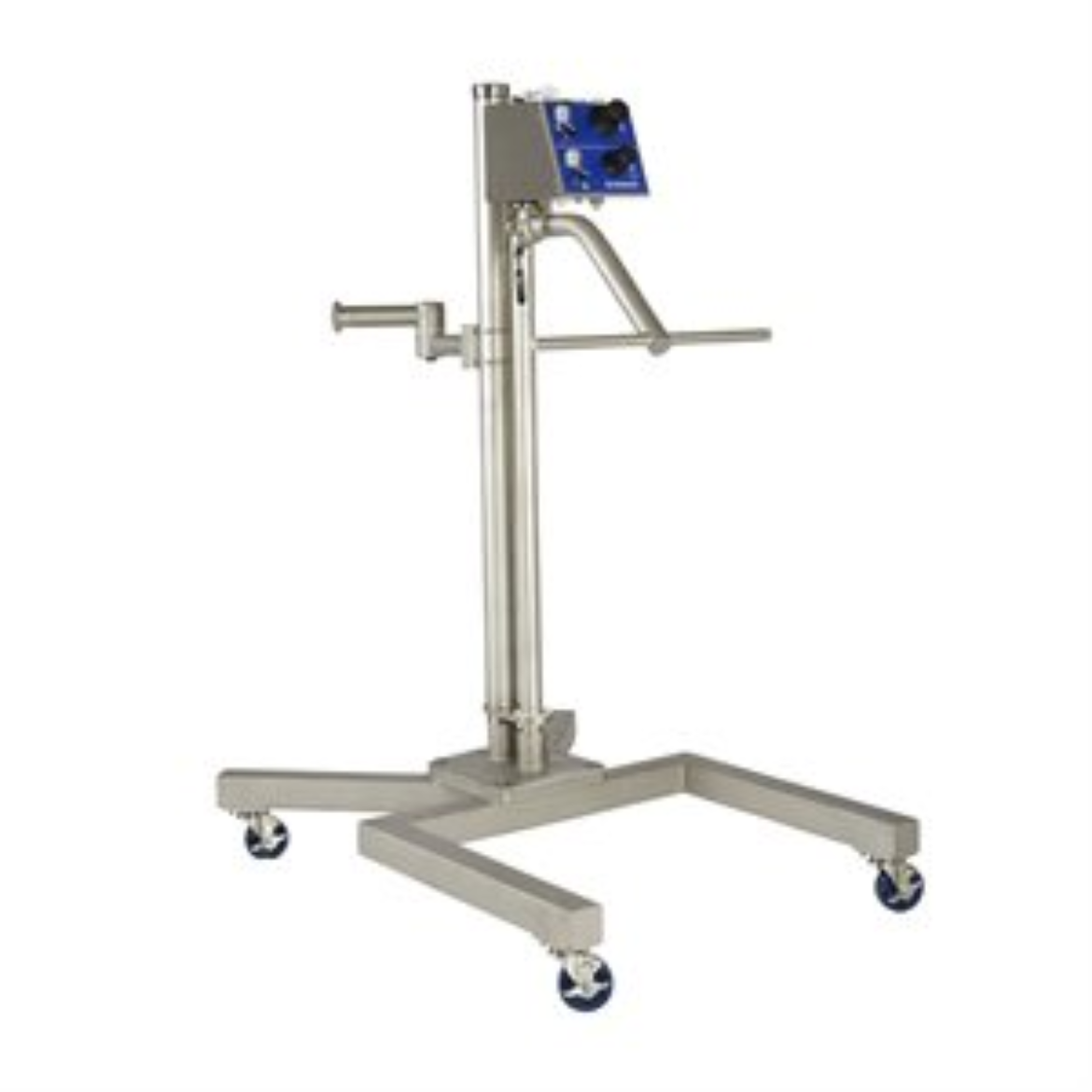

Graco 24V312 6:1 Ratio SaniForce Elevator with Cart & Handle
Still using hoists and chains to unload your drums or bins? Graco&prime, s SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco&prime, s SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists
- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Food, Personal Care
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Cart and Handle
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 41
- Maximum Working Pressure (kPa): 4100
- Maximum Working Pressure (MPa): 4.1
- Maximum Working Pressure (psi): 600
