    Heated Hose 3/8 x 50Ft

    Manufacturer: GRACO INC. S10595

    GG 246679

    REACTOR HEATED HOSE, 3500PSI, 3/8 W/SCFGRD

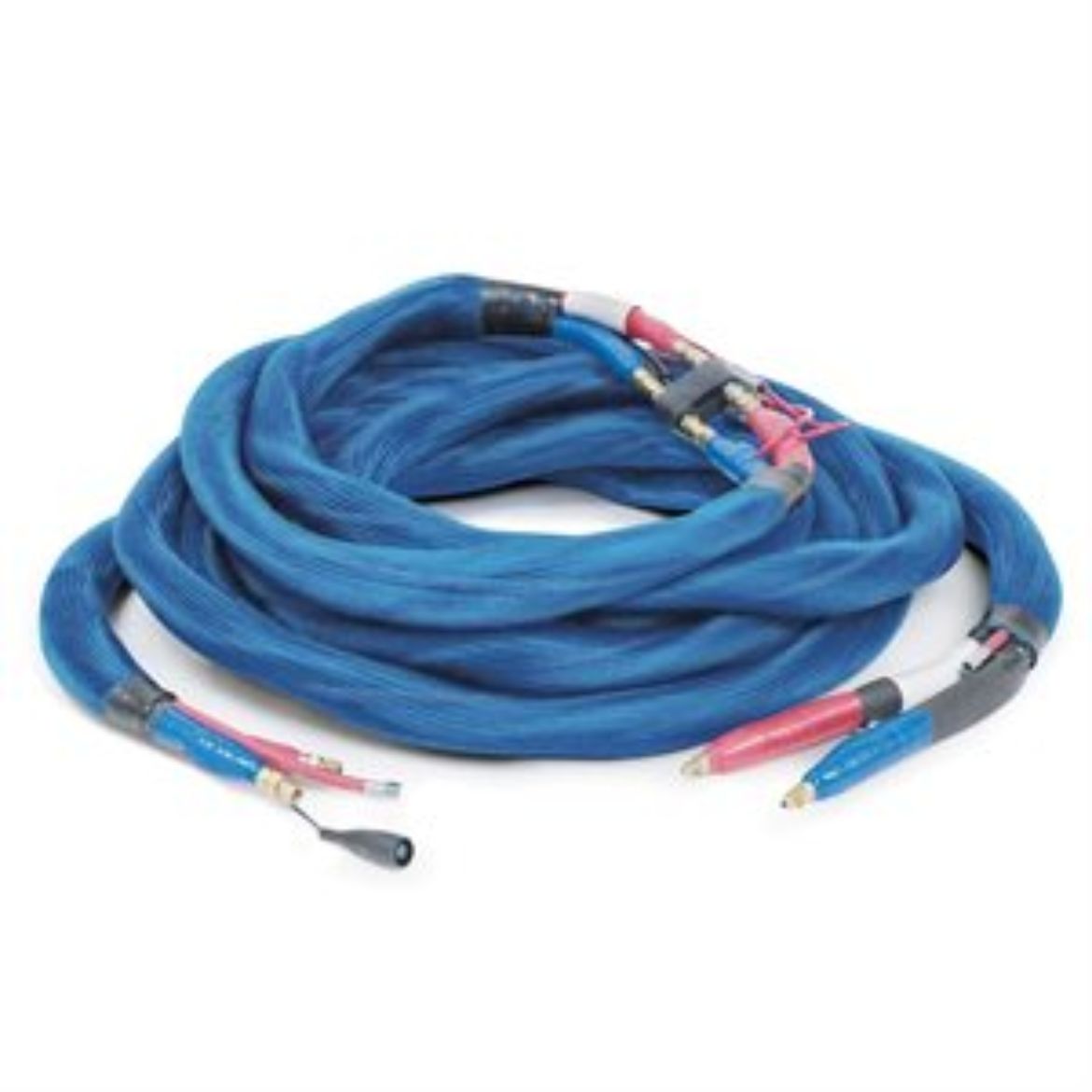

    Graco 246679 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Mesh Scuff, Reactor 1

    Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

    Application: For Reactor proportioners.
    • New multi-strand copper heating element has greatly increased hose quality:

        Provides 10-times* the flex life compared to previous flat copper heating element

        Long-term, even heating without hot spots

        Backwards compatible with existing Reactor heated hoses

      • Copper-heated hoses are designed specifically for use with Graco proportioners
      • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
      • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
      • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
      • Helix-design whip hose uses braided copper wires for added flexibility and longer life


      • Model: Reactor 1
      • Series: Mesh Scuff
      • Compatible Sprayer: Reactor 1
      • For Use With: Plural Component Proportioners
      • Hose Heating Type: External Heated
      • Hose Inside Diameter (in): 3/8
      • Hose Inside Diameter (mm): 9.525
      • Hose Length (ft): 50
      • Hose Length (m): 15.2
      • Inside Diameter (in): 3/8
      • Maximum Working Pressure (bar): 241
      • Maximum Working Pressure (kPa): 24100
      • Maximum Working Pressure (MPa): 24.1
      • Maximum Working Pressure (psi): 3500
    SKU: GG 246679
    Availability:
    Price: $3,630.00
