    Heated Hose 50Ft X 38 WRTD

    Manufacturer: GRACO INC. S10595

    GG 24K240

    REACTOR HEATED HOSE, 2000, 3/8, W/RTD AND SG

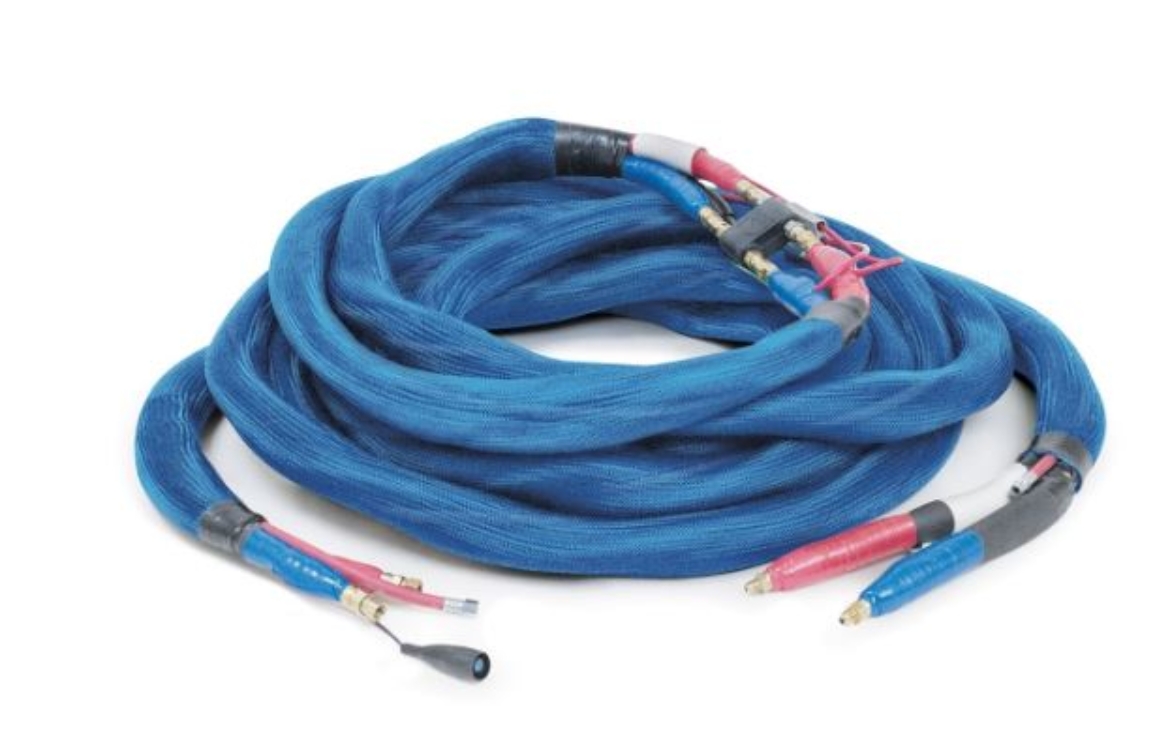

    Graco 24K240 50 ft x 3/8 in Heated Hose, 2000 psi, RTD, Mesh Scuff, Reactor 2

    Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

    Application: For Reactor proportioners.
    • New multi-strand copper heating element has greatly increased hose quality:

        Provides 10-times* the flex life compared to previous flat copper heating element

        Long-term, even heating without hot spots

        Backwards compatible with existing Reactor heated hoses

      • Copper-heated hoses are designed specifically for use with Graco proportioners
      • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
      • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
      • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
      • Helix-design whip hose uses braided copper wires for added flexibility and longer life
      • Resistance Temperature Detector (RTD)

          Graco's latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.


        • Model: Reactor 2
        • Series: Mesh Scuff
        • Compatible Sprayer: Reactor 2
        • For Use With: Plural Component Proportioners
        • Hose Heating Type: External Heated
        • Hose Inside Diameter (in): 3/8
        • Hose Inside Diameter (mm): 9.525
        • Hose Length (ft): 50
        • Hose Length (m): 15.2
        • Inside Diameter (in): 3/8
        • Maximum Working Pressure (bar): 138
        • Maximum Working Pressure (kPa): 13800
        • Maximum Working Pressure (MPa): 13.8
        • Maximum Working Pressure (psi): 2000
    SKU: GG 24K240
    Availability:
    Price: $2,660.00
