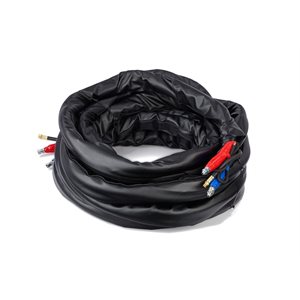

    Hose HTD X-Wrap 3/8 50'

    Manufacturer: GRACO INC. S10595

    GG 24Y678

    REACTOR HEATED HOSE, X-WRAP, 3/8, 50'

    Graco 24Y678 50 ft x 3/8 in Heated Hose, 2000 psi, Thermocouple, Xtreme-Wrap, Reactor 1

    Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

    Application: For Reactor proportioners.
    • New multi-strand copper heating element has greatly increased hose quality:

        Provides 10-times* the flex life compared to previous flat copper heating element

        Long-term, even heating without hot spots

        Backwards compatible with existing Reactor heated hoses

      • New Xtreme-Wrap Scuff Guard

          Form fitting to the hose, no more baggy excess material

          Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance

          Sheds surface moisture and wont absorb water to weigh down the hose bundle, will not freeze solid in cold temperatures

          Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

        • Joint Protectors

            Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.

          • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
          • Hoses are covered with foam insulation for heat retention
          • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
          • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
          • Helix-design whip hose uses braided copper wires for added flexibility and longer life


          • Model: Reactor 1
          • Series: Xtreme Wrap
          • Compatible Sprayer: Reactor 1
          • For Use With: Plural Component Proportioners
          • Hose Heating Type: External Heated
          • Hose Inside Diameter (in): 3/8
          • Hose Inside Diameter (mm): 9.525
          • Hose Length (ft): 50
          • Hose Length (m): 15.2
          • Inside Diameter (in): 3/8
          • Maximum Working Pressure (bar): 138
          • Maximum Working Pressure (kPa): 13800
          • Maximum Working Pressure (MPa): 13.8
          • Maximum Working Pressure (psi): 2000
    SKU: GG 24Y678
    Availability:
    Price: $2,900.00
