    Husky Pump,205P-Pp01Ap5--Ppptpt-Fk

    Manufacturer: GRACO INC. S10595

    GG D12091

    HUSKY PUMP, 205P-PP01AP5--PPPTPT-FK

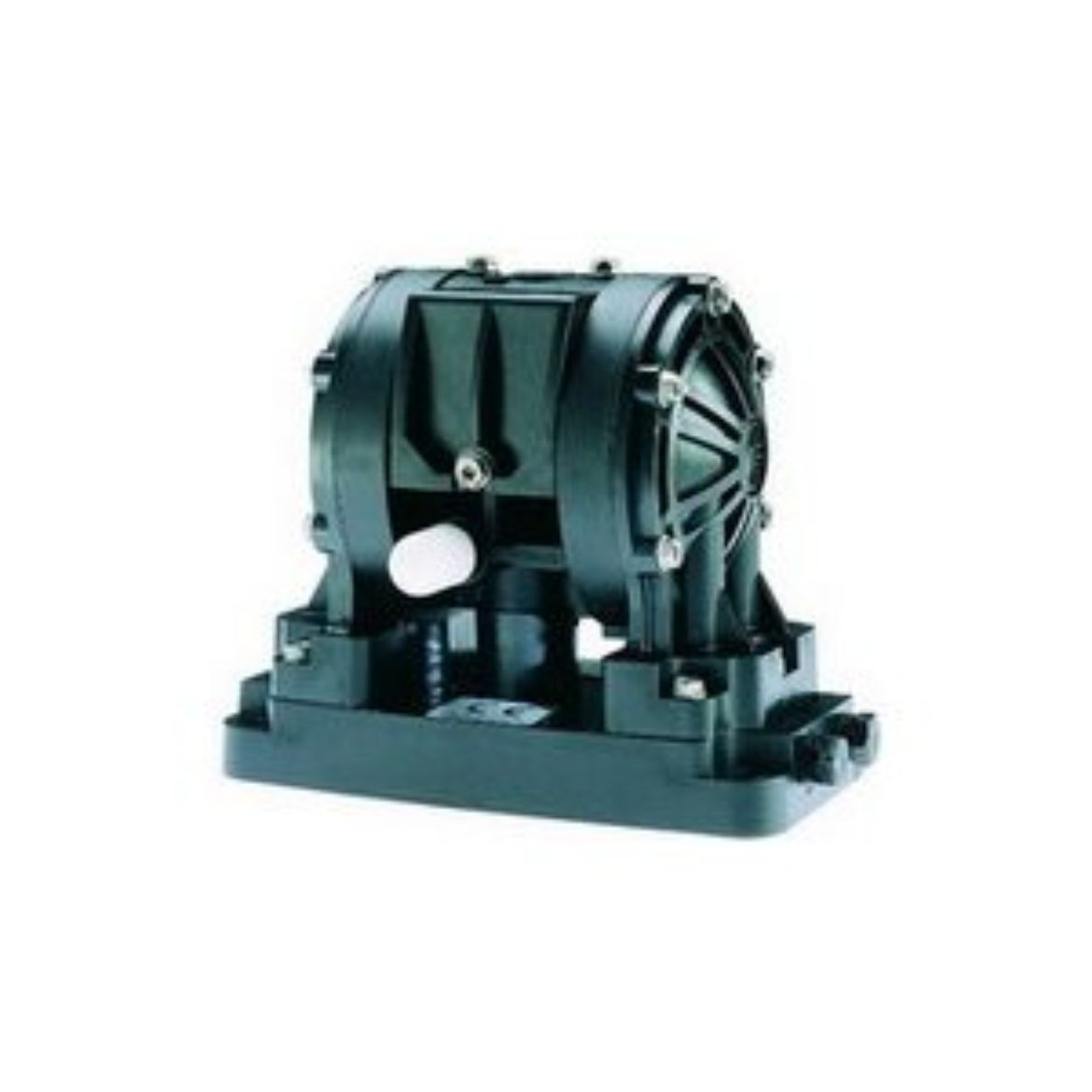

    Graco D12091 Husky 205 PP AODD Plastic Pump, PP/PT/PT-FKM

    Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

    Application: The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.
    • True-formed PTFE and Santoprene diaphragms for enhanced performance
    • Spring loaded checks allow the diaphragm pump to work in any orientation
    • Inlet and Outlet are interchangeable
    • 1/4-in (6.35 mm) end-porting double diaphragm pump


    • Model: Husky
    • Series: 205
    • Air Exhaust Port Size (in): 1/4
    • Air Exhaust Port Thread Gender: Female
    • Air Exhaust Port Thread Type: NPT, BSP
    • Air Inlet Size (in): 1/4
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT, BSP
    • Application: Industrial
    • Ball Material: Polypropylene
    • Center Section Material: Polypropylene
    • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
    • Connection Type: Threaded
    • Diaphragm Compatible Material: PTFE
    • Diaphragm Material: PTFE/EPDM 2-Piece
    • Fluid Inlet Size (cm): 0.635
    • Fluid Inlet Size (in): 1/4
    • Fluid Inlet Size (mm): 6.35
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT, BSPT
    • Fluid Outlet Size (cm): 0.635
    • Fluid Outlet Size (in): 1/4
    • Fluid Outlet Size (mm): 6.35
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT, BSPT
    • Fluid Section Material: Polypropylene
    • Manifold Configuration: End Port
    • Manifold O-Ring Material: PTFE
    • Material: Polypropylene
    • Maximum Air Consumption (SCFM): 9
    • Maximum Air Pressure (bar): 6.9
    • Maximum Air Pressure (kPa): 690
    • Maximum Air Pressure (MPa): 0.69
    • Maximum Air Pressure (psi): 100
    • Maximum Cycle Rate (CPM): 320
    • Maximum Flow Rate (GPM): 5
    • Maximum Flow Rate (L/min): 18.9
    • Maximum Fluid Pressure (bar): 6.9
    • Maximum Fluid Pressure (kPa): 690
    • Maximum Fluid Pressure (MPa): 0.69
    • Maximum Fluid Pressure (psi): 100
    • Maximum Fluid Pressure (bar): 6.9
    • Maximum Fluid Pressure (kPa): 690
    • Maximum Fluid Pressure (MPa): 0.69
    • Maximum Fluid Pressure (psi): 100
    • Maximum Operating Temperature (°C): 66
    • Maximum Operating Temperature (°F): 150
    • Maximum Solid Size (cm): 0.15
    • Maximum Solid Size (in): 0.06
    • Maximum Solid Size (mm): 1.5
    • Overall Height (in): 6
    • Power Source: Air
    SKU: GG D12091
    Availability:
    Price: $628.00
