Husky Pump,205P-Pp01Ap5--Ppsppt-Fk

GG D12096

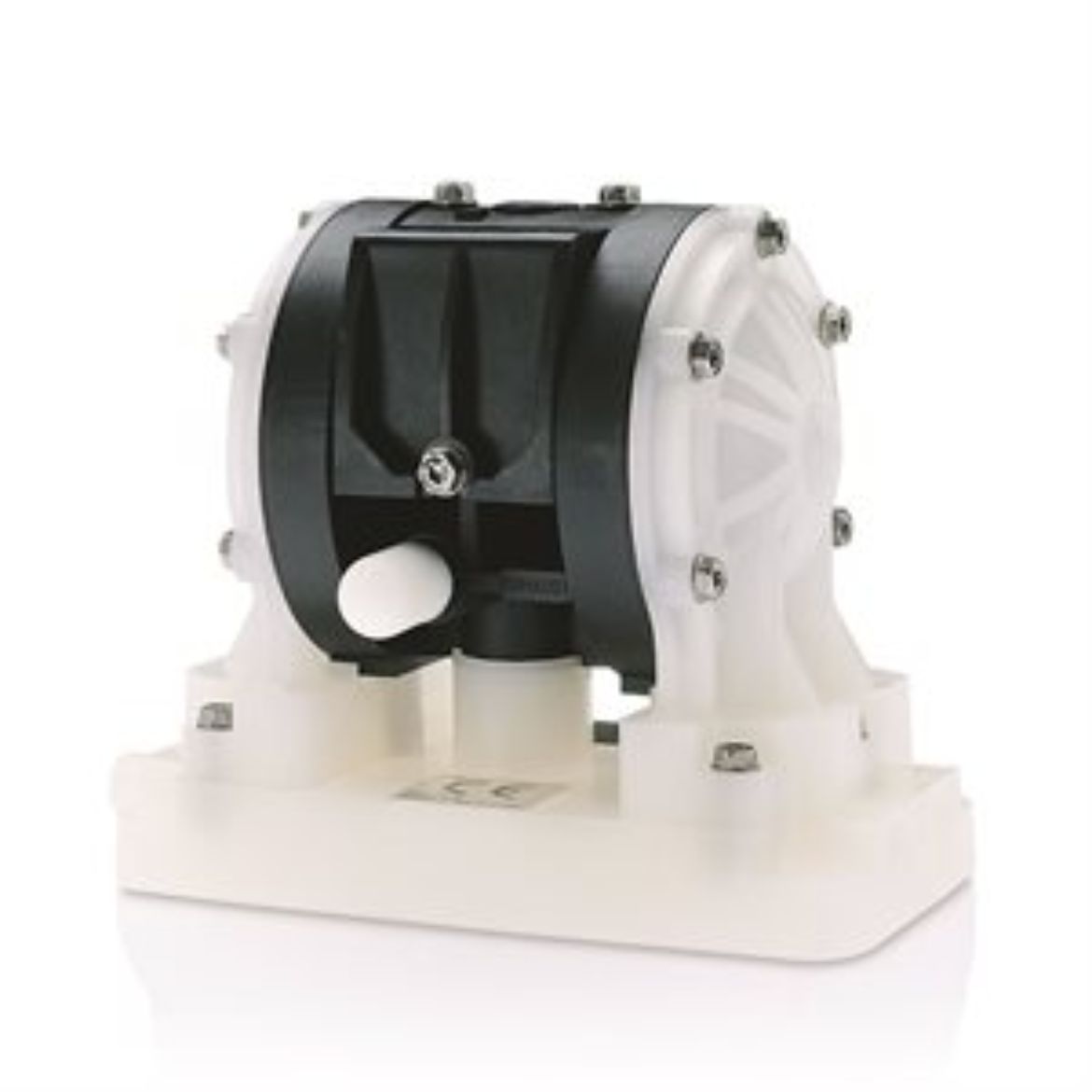

HUSKY PUMP, 205P-PP01AP5--PPSPPT-FK

Graco D12096 Husky 205 PP Pump, PP Center Section, PP Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

• True-formed PTFE and Santoprene diaphragms for enhanced performance
• Spring loaded checks allow the diaphragm pump to work in any orientation
• Inlet and Outlet are interchangeable
• 1/4-in (6.35 mm) end-porting double diaphragm pump

• Model: Husky
• Series: 205

• Air Exhaust Port Size (in): 1/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT, BSP
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT, BSP

• Application: Industrial

• Ball Material: Polypropylene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT, BSPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT, BSPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 9
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 320

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 18.9

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Solid Size (cm): 0.15
• Maximum Solid Size (in): 0.06
• Maximum Solid Size (mm): 1.5

• Overall Height (in): 6

• Power Source: Air
