GG D31255
HUSKY PUMP, 307AC-PP01AAC3ACTPTPPT

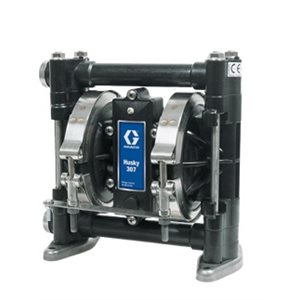

Graco D31255 Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE Diaphragm
The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Application: Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
- Quick and easy assembly and disassembly design
- Easy to service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Every pump is tested prior to shipping
- 3/8 in (9.52 mm) end porting
- Delivery up to 7 gpm (26.5 lpm)
- Easy-to-service air valve and ball checks
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Ball Material: TPE (Hytrel)
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: TPE
- Diaphragm Material: TPE (Hytrel)
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.525
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Acetal
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Acetal
- Maximum Air Consumption (SCFM): 5.5
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 330
- Maximum Flow Rate (GPM): 6.5
- Maximum Flow Rate (L/min): 24.6
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature ( degree C): 66
- Maximum Operating Temperature ( degree F): 150
- Maximum Solid Size (cm): 0.1588
- Maximum Solid Size (in): 0.0625
- Maximum Solid Size (mm): 1.5875
- Minimum Operating Temperature ( degree C): 4
- Minimum Operating Temperature ( degree F): 40
- Overall Height (in): 8.13
