    Husky Pump,307Ac-Pp01Aac3Ssssptpt

    Manufacturer: GRACO INC. S10595

    GG D31331

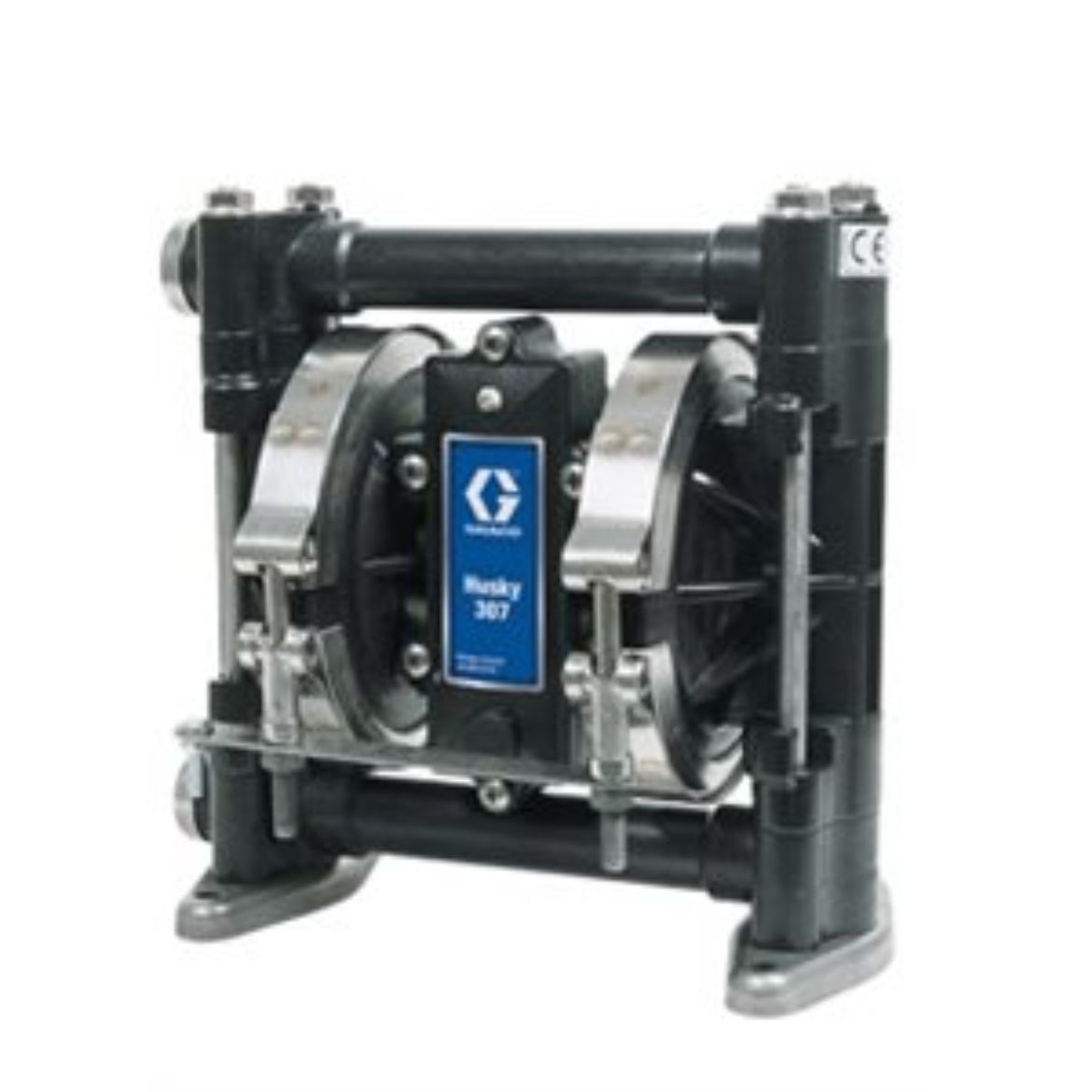

    HUSKY PUMP, 307AC-PP01AAC3SSSSPTPT

    Graco D31331 Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm

    The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

    Application: Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
    • Quick and easy assembly and disassembly design
    • Easy to service air valve and ball checks
    • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
    • Every pump is tested prior to shipping
    • 3/8 in (9.52 mm) end porting
    • Delivery up to 7 gpm (26.5 lpm)
    • Easy-to-service air valve and ball checks


    • Model: Husky
    • Series: 307
    • Air Exhaust Port Size (in): 3/8
    • Air Exhaust Port Thread Gender: Female
    • Air Exhaust Port Thread Type: NPT
    • Air Inlet Size (in): 1/4
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Application: Industrial
    • Ball Material: 316 Stainless Steel
    • Center Section Material: Polypropylene
    • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
    • Connection Type: Threaded
    • Diaphragm Compatible Material: PTFE
    • Diaphragm Material: PTFE/EPDM 2-Piece
    • Fluid Inlet Size (cm): 0.9525
    • Fluid Inlet Size (in): 3/8
    • Fluid Inlet Size (mm): 9.525
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (cm): 0.9525
    • Fluid Outlet Size (in): 3/8
    • Fluid Outlet Size (mm): 9.525
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Fluid Section Material: Acetal
    • Manifold Configuration: End Port
    • Manifold O-Ring Material: PTFE
    • Material: Acetal
    • Maximum Air Consumption (SCFM): 5.5
    • Maximum Air Pressure (bar): 7
    • Maximum Air Pressure (kPa): 700
    • Maximum Air Pressure (MPa): 0.7
    • Maximum Air Pressure (psi): 100
    • Maximum Cycle Rate (CPM): 330
    • Maximum Flow Rate (GPM): 6.5
    • Maximum Flow Rate (L/min): 24.6
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Operating Temperature (°C): 82
    • Maximum Operating Temperature (°F): 180
    • Maximum Solid Size (cm): 0.1588
    • Maximum Solid Size (in): 0.0625
    • Maximum Solid Size (mm): 1.5875
    • Minimum Operating Temperature (°C): 4
    • Minimum Operating Temperature (°F): 40
    • Overall Height (in): 8.13
    • Power Source: Air
    SKU: GG D31331
    Availability:
    Price: $985.00
