METER-FLO PUMP, 9/14 CU IN/MIN CCW NPT

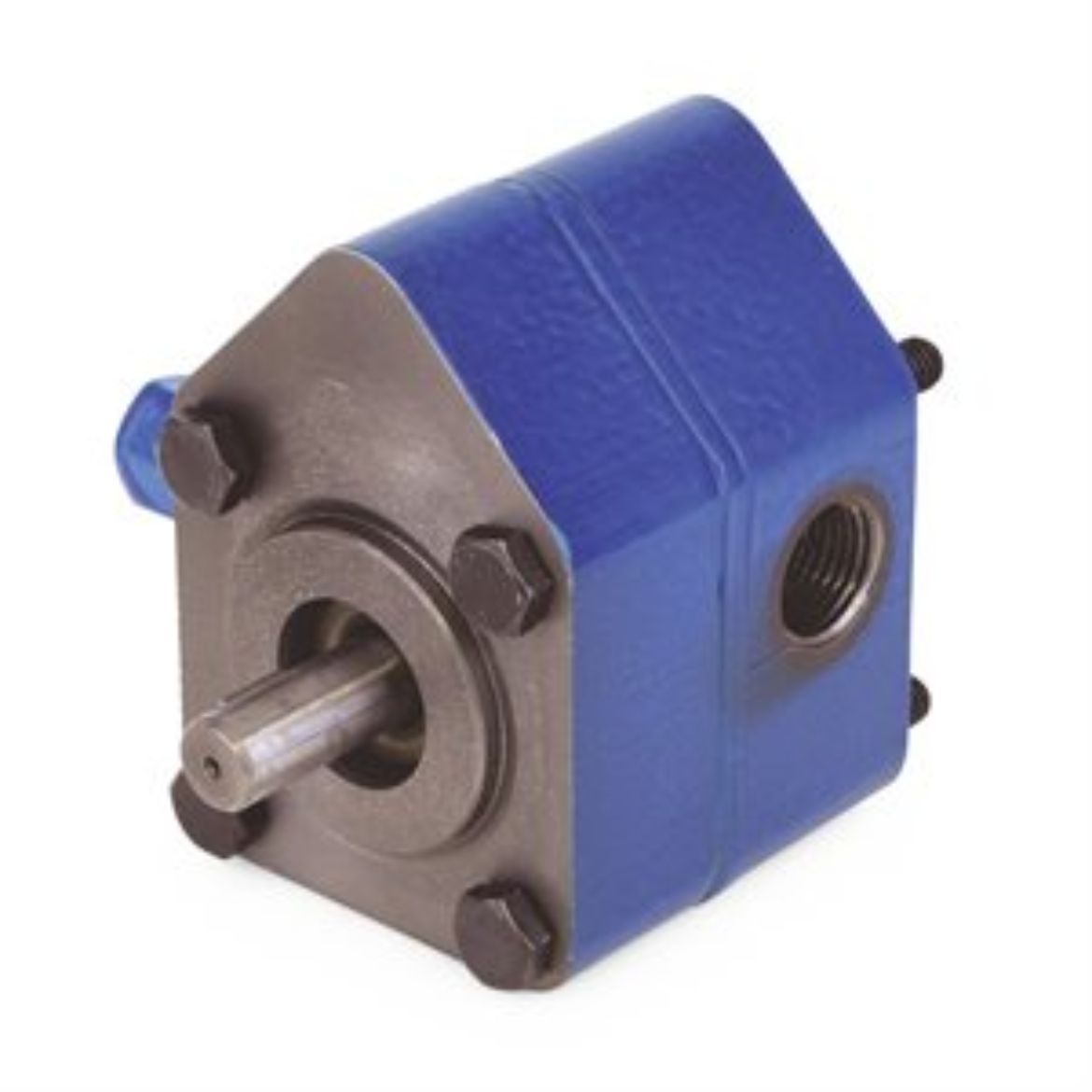

Graco 557814 Meter-Flo Electric Pump, 14 cu in/min (229 cc/min) @ 1,725 rpm, NPT Ports, CCW

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm's with output volumes of 245 cubic inches per minute (4015 cc/min).

• Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
• Positive displacement helps assure constant delivery of proper volume.
• Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
• Adjustable pressure relief valve protects pump against overload conditions.
• Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
• Lubriquip part number 540-800-011

• Model: Meter-Flo

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (ci/min): 14

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum SUS Grade (SUS): 3000

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): 10
• Minimum Operating Temperature (°F): 50

• Minimum SUS Grade (SUS): 300

• Power Type: Electric
