GG 24F195
SANIFORCE PISTON PUMP, 5:1 DB DL

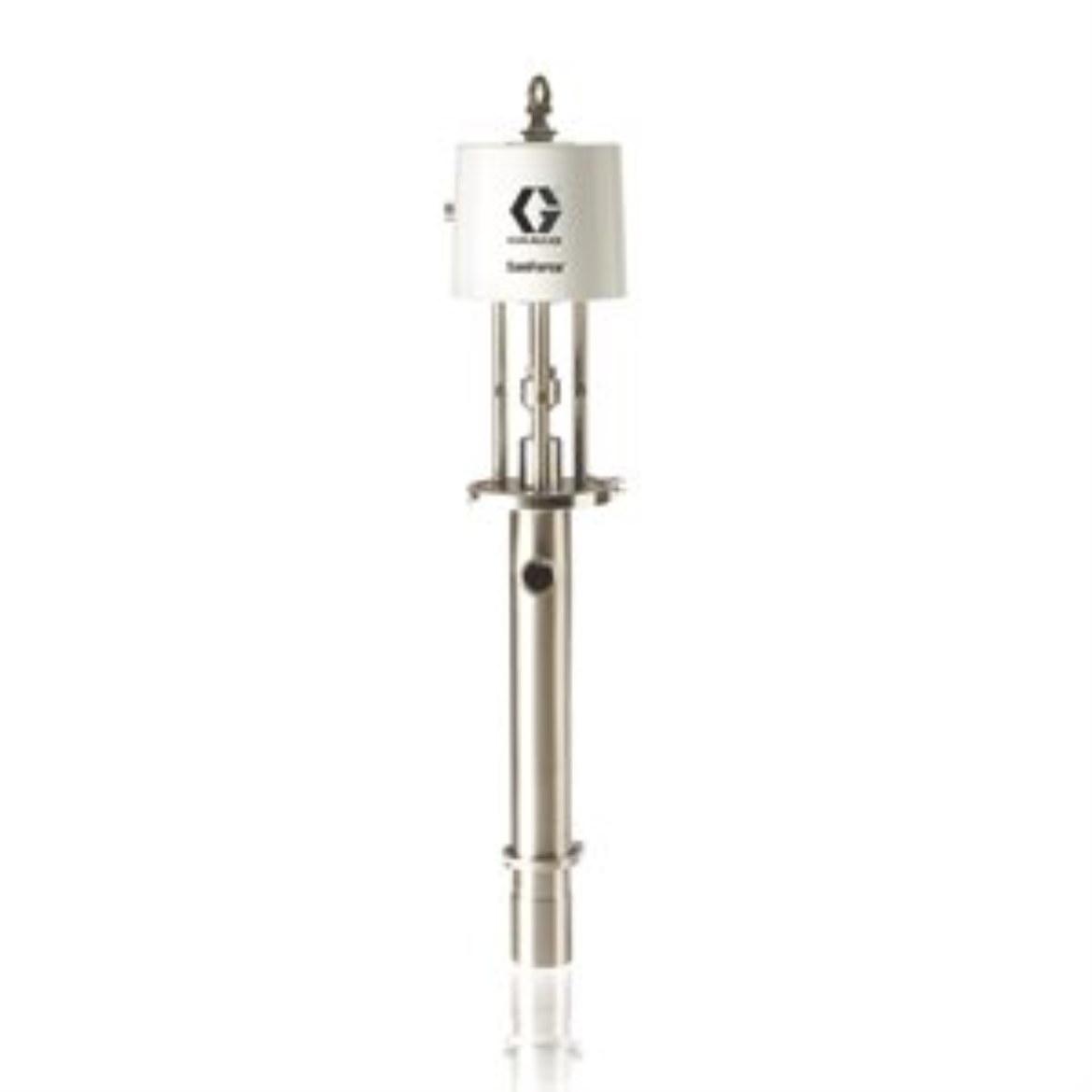

Graco 24F195 5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Inlet
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Maximum Air Consumption (SCFM): 75
- Maximum Air Inlet Pressure (bar): 5.5
- Maximum Air Inlet Pressure (kPa): 550
- Maximum Air Inlet Pressure (psi): 80
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 14
- Maximum Flow Rate (L/min): 53
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 28.3
- Maximum Working Pressure (kPa): 2830
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 410
