Reservoir, 4 Pint, 118:1

GG 24W633

RESERVOIR, 4 PINT, 118:1, RH

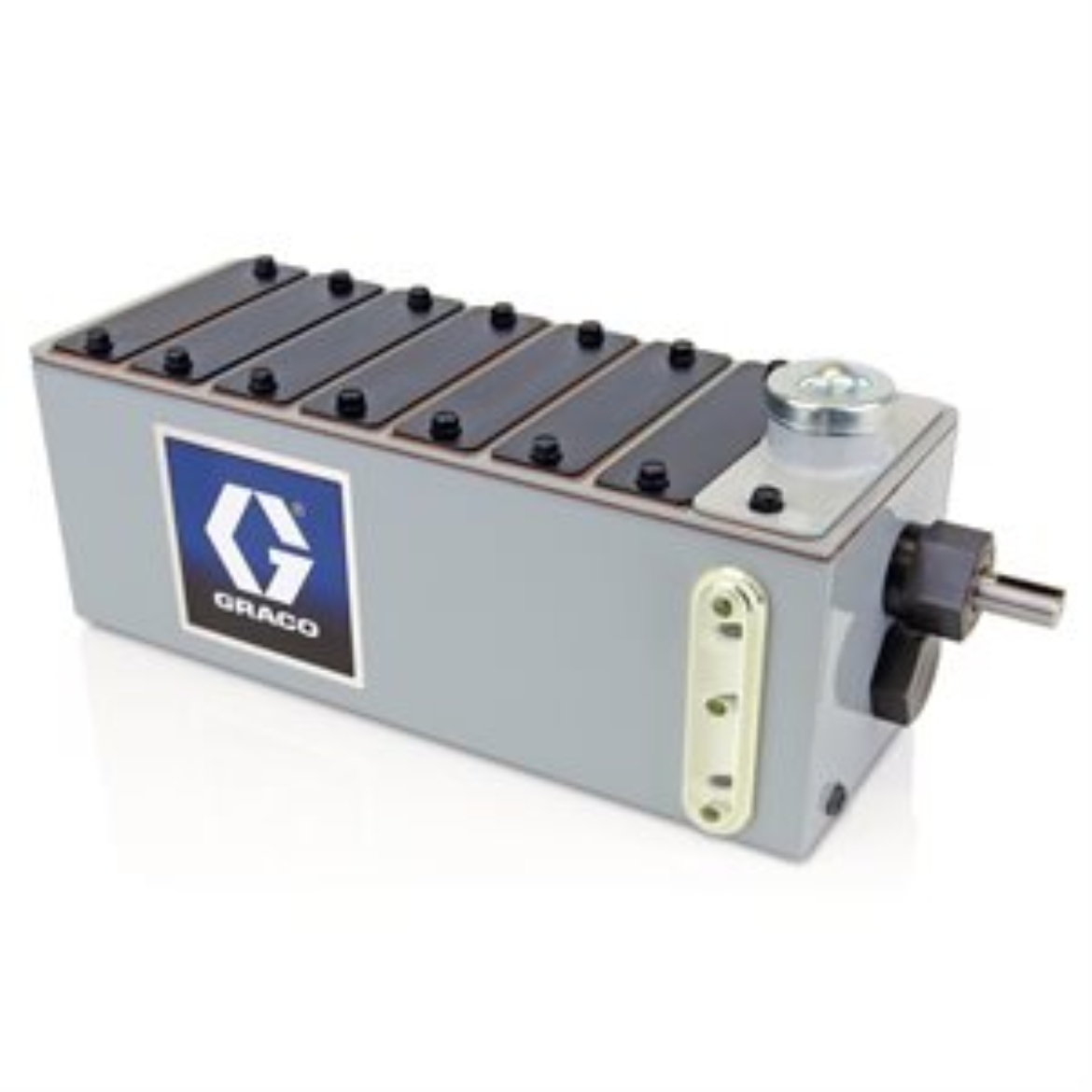

Graco 24W633 Manzel MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), No Pumps Installed, 118:1 drive on right hand end

Graco Manzel box lubricators - when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.

• Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components
• Increase opportunities to standardize lube system components and reduce lube maintenance and service costs
• 4 pint (1.9 liter) reservoir (4 pump stations max), no pumps installed, 118:1 drive on RH end

• Model: Manzel
• Series: MB

• Cam Type: Single Lobe

• Compatible Material: Oil

• Drive Location: Right Hand Mount
• Drive Option: Internal Gear Reduction

• Lubricator Gear Ratio: 118:1

• Maximum Drive Speed (RPM): 1800

• Maximum Fluid Viscosity (SUS): 5000

• Maximum Number of Pump Stations: 4
• Maximum Number of Strokes (SPM): 15

• Maximum Operating Temperature ( degree C): 60
• Maximum Operating Temperature ( degree F): 140

• Maximum Reservoir Capacity (gal): 0.5
• Maximum Reservoir Capacity (L): 1.9

• Maximum Reservoir Capacity (pt): 4
• Maximum Reservoir Capacity (qt): 2

• Maximum Working Pressure (bar): 517.1
• Maximum Working Pressure (kPa): 51710
• Maximum Working Pressure (psi): 7500

• Minimum Fluid Viscosity (SUS): 80

• Minimum Operating Temperature ( degree C): -29
• Minimum Operating Temperature ( degree F): -20

• Number of Pumps: 0

• Overall Depth (cm): 36.2
• Overall Depth (in): 14.25
• Overall Depth (mm): 362

• Overall Width (cm): 13.97
• Overall Width (in): 5.5
• Overall Width (mm): 139.7
