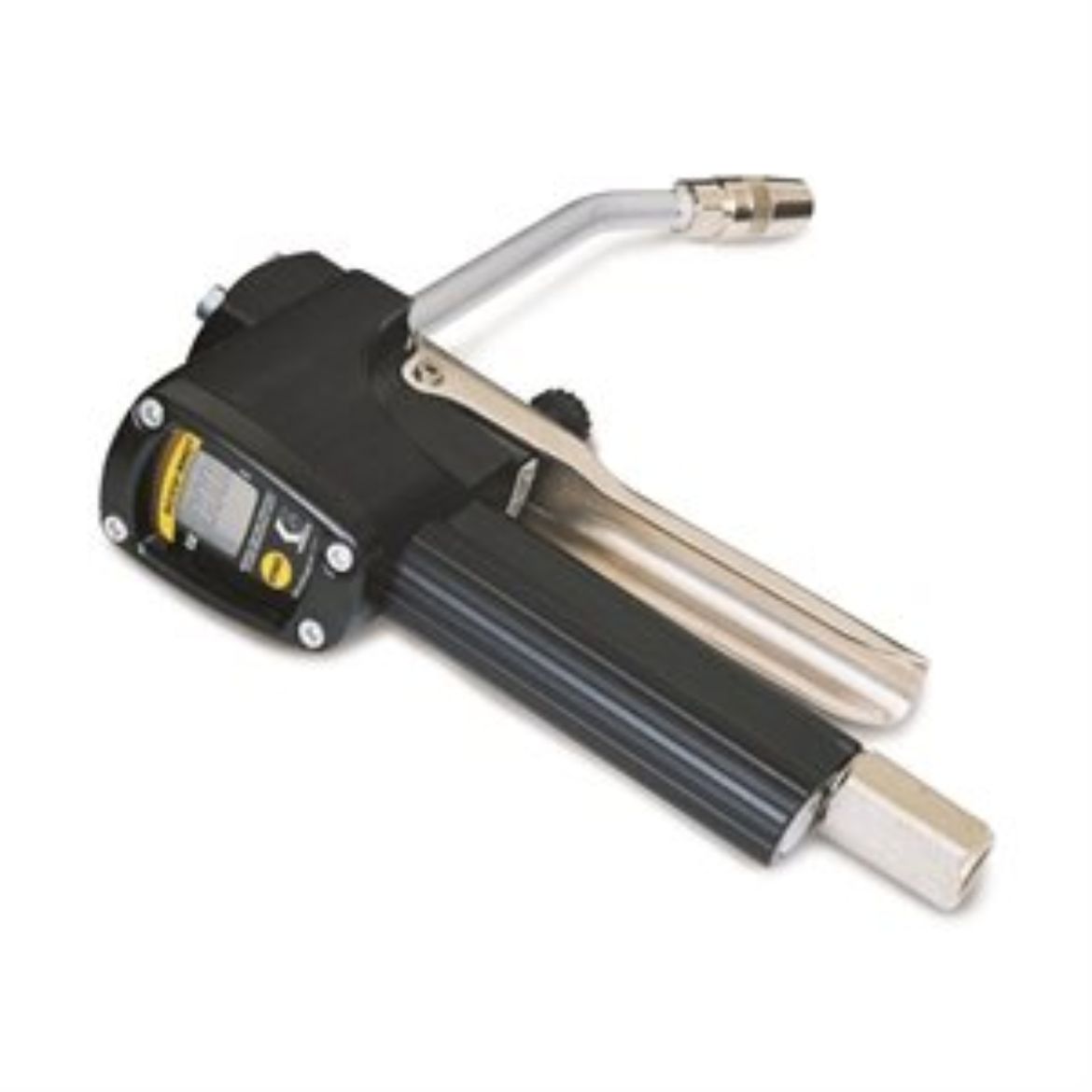

Valve, Accu Shot, Metered Grease

GG 233807

VALVE, METERED, GREASE

Graco 233807 Standard Nozzle Extension and 1/4 in. NPT Inlet, U.S. Measurement, Includes Extension and Hydraulic Coupler NLGI#2

Designed to perform in heavy-equipment shops, fleet maintenance

shops, municipal garages and higher-volume in-plant applications

with longer plumbing runs and larger fluid usage.

Application: Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.

• Easy-to-Read LCD
• Easily reset electronic display.
• Accurate Grease Metering
• Handles Pressure up to 5,000 psi (345 bar)
• Flow up to 36 oz/min (1 kg/min).

• Approvals: CE

• Compatible Material: Grease

• Dispense Type: Manual

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Extension, Hydraulic Coupler
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPTF

• Maximum Operating Temperature (°C): 60
• Maximum Operating Temperature (°F): 140

• Maximum Storage Temperature (°C): 70
• Maximum Storage Temperature (°F): 158

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000
• Meter Accuracy (%): ±0.3
• Meter Technology: Oval Gears

• Metering Gun Weight (kg): 1.0
• Metering Gun Weight (lb): 2.2

• Nozzle Type: Rigid

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175
• Outlet Thread Type: NPTF

• Overall Height (cm): 22.35
• Overall Height (in): 8.8
• Overall Height (mm): 223.5
• Overall Length (cm): 8.13
• Overall Length (in): 3.2
• Overall Length (mm): 81.28
• Overall Width (cm): 4.572
• Overall Width (in): 1.8
• Overall Width (mm): 45.72

• Power Type: Electric

• Recommended Environment: Indoor
