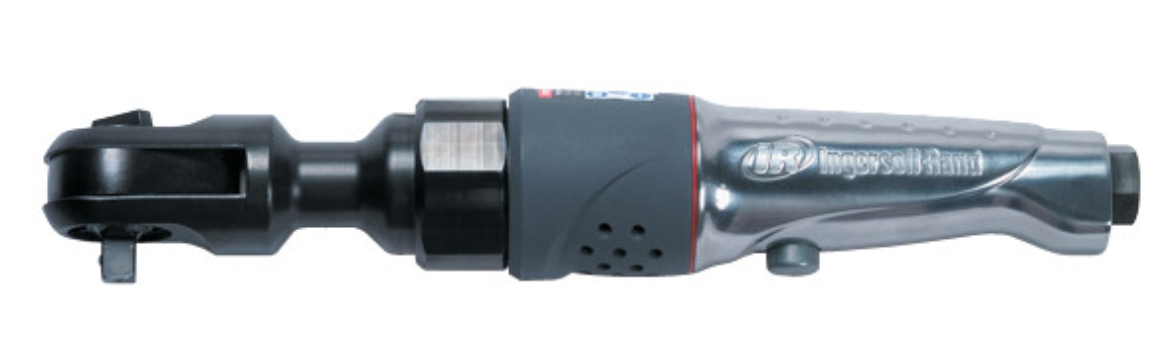

IR 109XPA
3/8" Air Ratchet Wrench, 76 ft-lb Torque, 220 RPM
The 109XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a ½” drive, while the 1099 model sports a ⅜” version.
Features And Benefits
- Maximum Torque: 76 ft.-lbs. maximum torque at 300 rpm free speed.
- 360-Degree Exhaust: The adjustable exhaust on the 109XPA high torque ratchet wrenches directs air flow away from you and your workspace.
- Low Profile Forward/Reverse Control: The 109XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.
- Increased Reach: Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.
- Exceptional Durability: Exclusive IR Twin Pawl Plus head design for exceptional durability.
Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Button
Air Consumption (cfm): 24
Air Consumption (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 76
Max Torque (in-lb): 912
Max Torque (nm): 103
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12
Product Width (in): 2.16
Product Height (in): 1.84
Product Weight (lb): 3.3
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 1.08
Side to Center Distance (mm): 27
Sound Pressure/Power Db(A): 92.4 / 103.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.5
Warranty: 1-year
