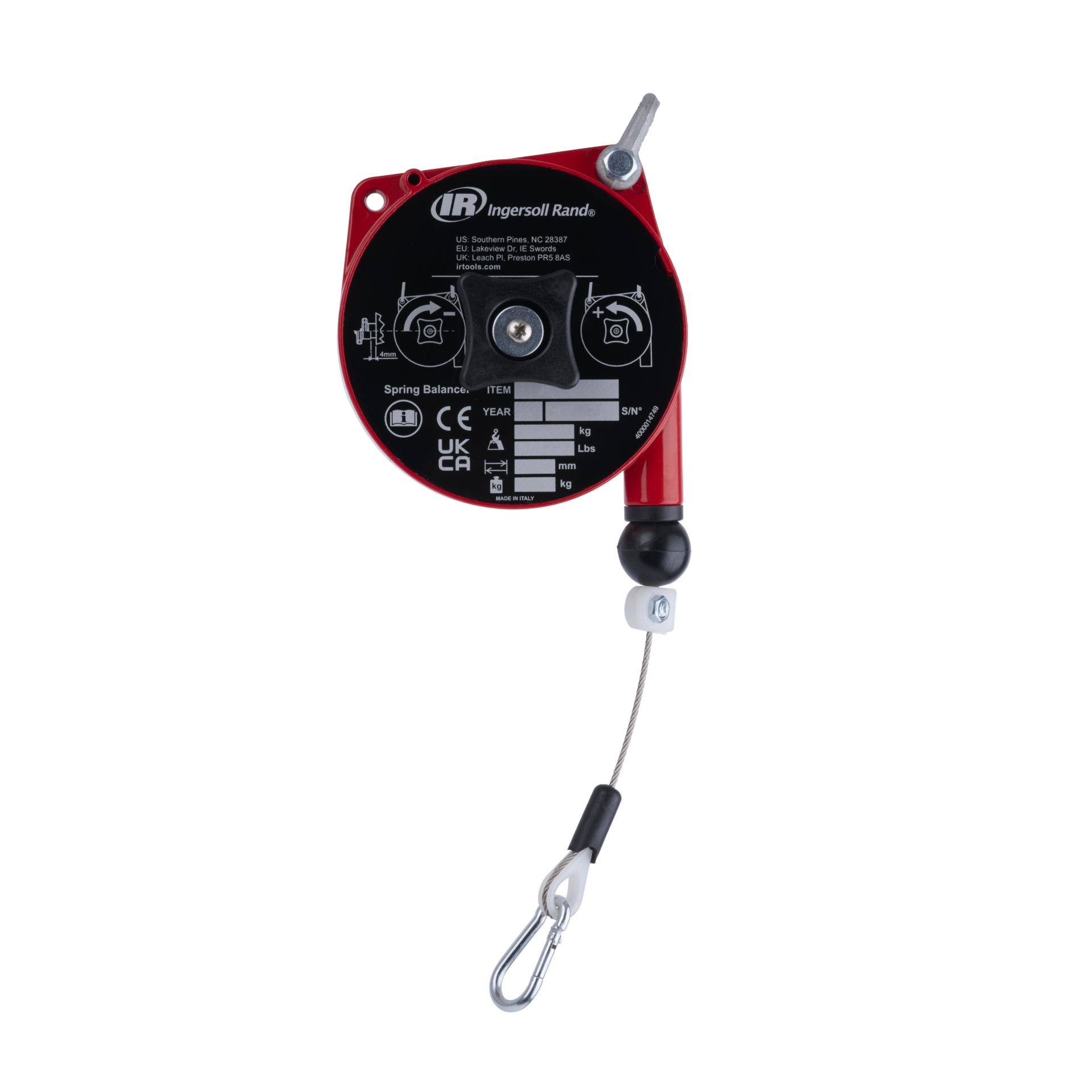

IR BLD1
Light Duty Ergonomic Tool Balancer, 0.9-2.2 lb Capacity, 5.2' Lift
With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.
Features And Benefits
- Rugged construction, cast aluminum body
- Stainless-steel cable
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Upper suspension shackle included on balancer for ease of installation
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
Includes: Balancer, Cable and Upper Suspension Shackle
Product Application and Uses: Creates a gravity-free effect for tools to allow users to move tool with minimal effort along cable travel
Cable Material: Stainless steel
Capacity (lb): 0.88 - 2.20
Color: Red
Duty Rating: Light Duty
Housing Material: Aluminum
Lift (ft): 5.2
Lock Mechanism: Non-Locking
Product Length (in): 11.5
Product Width (in): 4.4
Product Height (in): 10.25
Product Weight (lb): 1.6
Reel Height (in): 11.1
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Special Features: Adjustable Capacity
Special Features: Anti Friction Cable Guide
Tension Adjustment: Rotation
Warranty: 1-year
For Use With
- 1RLNS1
- 1RPLS1
- 1RPMS1
- 1RPNS1
- 1RPQS1
- 7RAMC1
- 7RAMC1-EU
