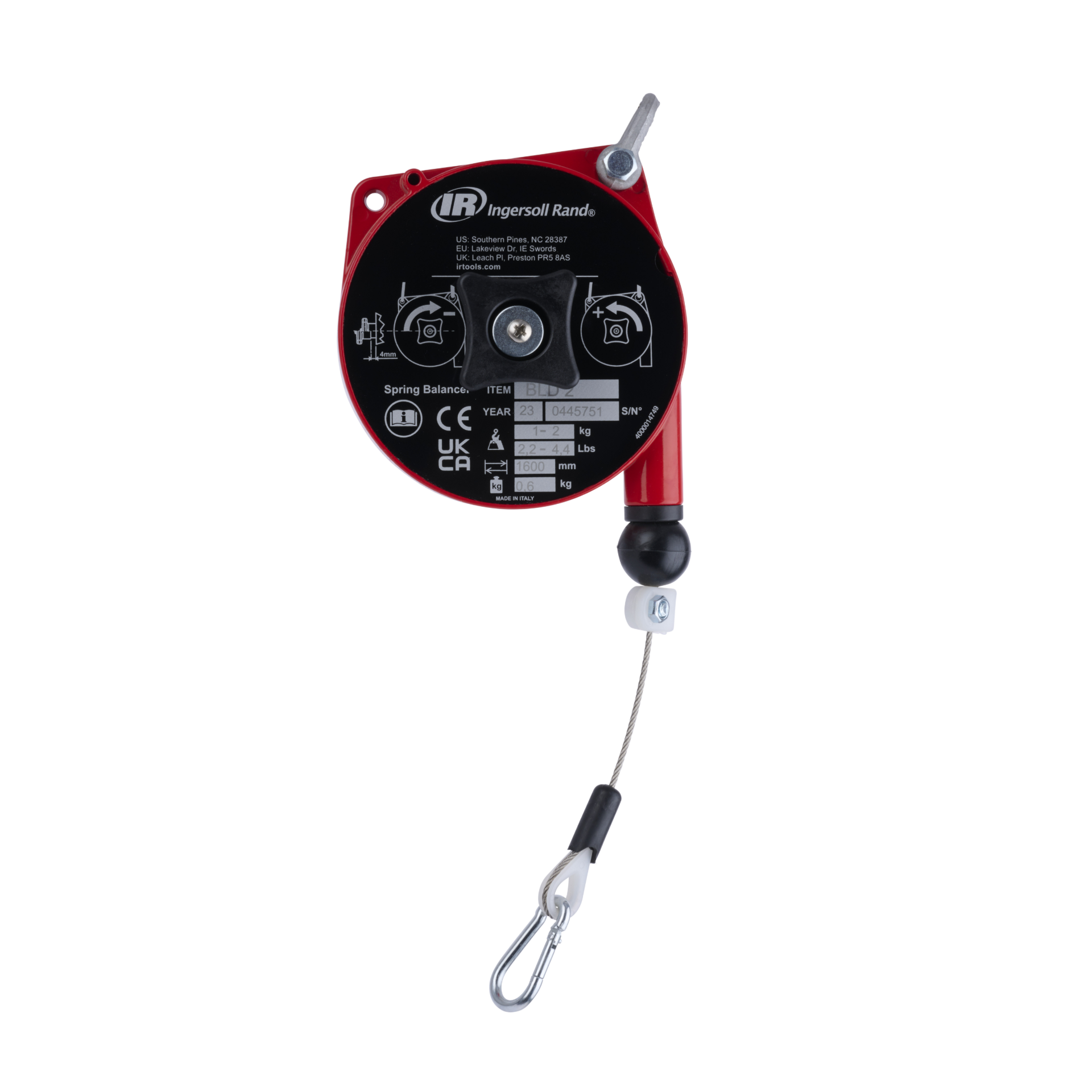

IR BLD2
Light Duty Ergonomic Tool Balancer, 2.2-4.4 lb Capacity, 5.2' Lift
Description: With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.
Features And Benefits:
- Rugged construction, cast aluminum body
- Stainless-steel cable
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Upper suspension shackle included on balancer for ease of installation
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
Product Application and Uses:
Creates a gravity-free effect for tools to allow users to move tool with minimal effort along cable travel
- Includes: Balancer, Cable and Upper Suspension Shackle
- Cable Material: Stainless steel
- Capacity (lb): 2.2 - 4.4
- Color: Red
- Duty Rating: Light Duty
- Housing Material: Aluminum
- Lift (ft): 5.2
- Lock Mechanism: Non-Locking
- Product Length (in): 11.5
- Product Width (in): 4.4
- Product Height (in): 10.25
- Product Weight (lb): 1.6
- Reel Height (in): 11.1
- Reel Mount Type: Suspension Shackle
- Rotation Type: Fixed
- Special Features: Adjustable Capacity
- Special Features: Anti Friction Cable Guide
- Tension Adjustment: Rotation
