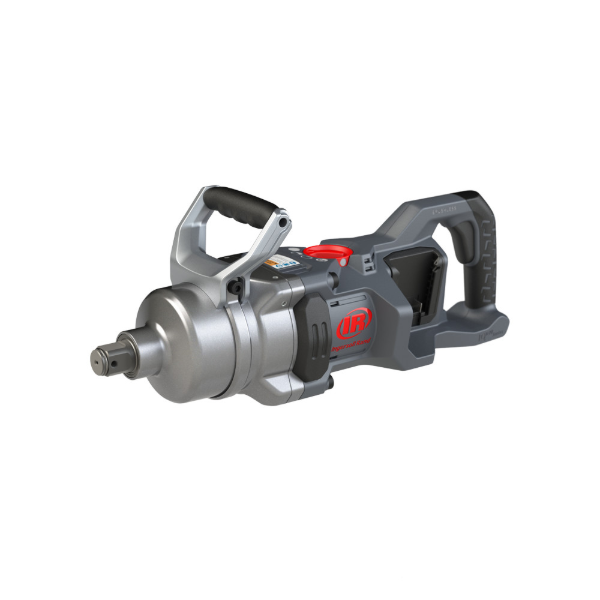

IR W9491

1" 20V Cordless Impact Wrench, 2600 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle, Bare Tool

Description: Introducing the world's most powerful 1" cordless impact wrench: the W9491 from Ingersoll Rand. Get 2,600 ft-lbs of nut busting torque with 100% mobility from the market leader in 1" impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.

Features And Benefits:

• POWER: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 2,600 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
• PRODUCTIVITY: 250 bolts per charge, tackle a full day's worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IP56 rated for tough environmental conditions.
• SAFETY: Remove hoses & trip hazards to keep operators & technicians safe
• IQV Power Control System includes 3 modes: MAX Power, MID, and Snug
• Brushless motor delivers durability and efficiency
• 360° adjustable D-handle: rotates fully around the tool as the job demands
• Impact and chemical-resistant housing
• Compatible with IQV 20 Series Battery System
• 3-year limited warranty

Product Application and Uses:

Cordless Impact Wrenches are designed to remove and install threaded fasteners.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Anvil Length: Standard

• Blows per Min: 1170 (BL2022)
• Bolts per Charge (on and Off): 250
• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• Fasteners per charge: 250
• Forward Torque setting 1 (ft-lb): 184
• Forward Torque setting 1 (in-lb): 2213
• Forward Torque setting 1 (nm): 250
• Forward Torque setting 2 (ft-lb): 406
• Forward Torque setting 2 (in-lb): 4868
• Forward Torque setting 2 (nm): 550
• Forward Torque setting 3 (ft-lb): 2213
• Forward Torque setting 3 (in-lb): 26552
• Forward Torque setting 3 (nm): 3000

• Hammer Case: Steel-lined Aluminum
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 890
• Max Torque (ft-lb): 2213
• Max Torque (in-lb): 26552
• Max Torque (nm): 3000
• Motor: Brushless Motor

• Number of Batteries Required: 2
• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 2600
• Nut-busting/Breakaway Torque (in-lb): 31200
• Nut-busting/Breakaway Torque (nm): 3525
• Power Source: Battery Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 94.55
• Product Length (in): 20.13

• Product Width (in): 6.93
• Product Height (in): 8.11
• Product Weight (lb): 24.3
• Product Weight (lb) (with Battery): 27.5
• Recommended Forward Torque Range (ft-lb): 2213
• Recommended Forward Torque Range (in-lb): 26552
• Recommended Forward Torque Range (nm): 3000
• Retainer Type: Friction Ring and Thru-hol

HA LB030-15

Product Line - Manulal Hoist
Product Name - LB Lever Hoist
Capacity: 3 Ton

• Capacities - ¾ Ton through 9 Ton
• Compact design makes it a perfect fit for use in tight quarters
• Steel body is more durable yet lighter weight than die cast aluminum models
• Revolutionary freewheeling offers one handed operation
• 360 degree handle rotation and pivot & swivel top hook for easy rigging
• Single load chain through 3 Tons
• Net Weight: 100 lbs

GG L85T10

PRO XP GUN, ES, 85KV

Graco L85T10 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

The 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.

• Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
• The electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
• Built-in durability means the paint spray gun is designed to last and made in the USA.
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 85

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 676
• Gun Weight (kg): 0.675
• Gun Weight (lb): 1.49
• Gun Weight (oz): 23.81

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 26.67
• Overall Length (in): 10.5
• Overall Length (mm): 266.7

GG D52966

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

Graco D52966 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

• Model: Husky
• Series: 515

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.63

• Power Source: Air

GV 1017913

RP 3039

GG TE30-0014

QUANTM QUANTM PUMP, QTC-ALFC5SPSPSPPTA100

Graco TE30-0014 QUANTM i30, 1" NPT, Aluminum Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SP Seat, SP Ball, SP Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

• Revolutionary Design

  Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

  Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

  Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

  Quiet operation reduces plant noise and improves employee safety and health

  Smart pump control provides more accurate flow set points and built-in I/O

• Efficient Electric Motor Powder-coated aluminum electric drive 120 VAC motor with 15 ft cord and NEMA 5-15 plugNon-hazardous
• Materials of Construction Aluminum fluid section with NPT end portInternal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

• Model: QUANTM
• Series: i30

• Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer

• Ball Material: Santoprene

• Center Section Material: Aluminum

• Connection Type: NPT

• Cord Length (ft): 15
• Cord Length (m): 4.57

• Diaphragm Material: Santoprene

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section: Aluminum, End Port, NPT
• Fluid Section Material: Aluminum

• Hazardous Location Approval: None

• Manifold Configuration: End Port
• Manifold O-Ring Mater

BB 2465-14HV-32S0
